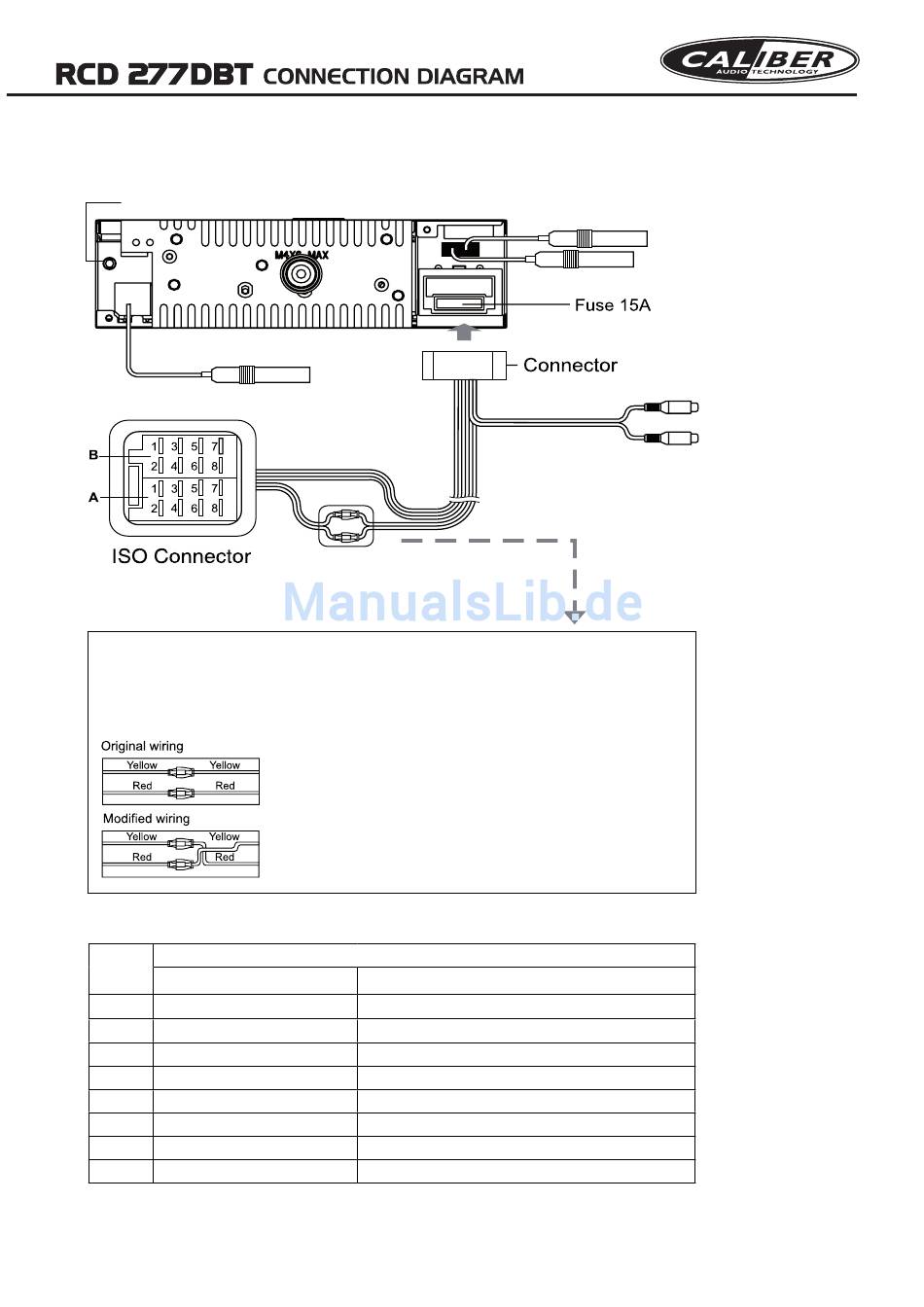

DAB antenna connector
Antenna
For some VW/Audi or Opel(vauxhall) car models, you may need to
modify wiring of the supplied power cord as illustrated, or else the
memory of the unit may be lost after you power off. Contact your
authorized car dealer before installing this unit.
Location
Connector A
1
2
3
4
Battery 12V(+) / Yellow
5
ANT/AMP control / Blue
6
7
ACC+ / Red
8
Ground / Black
(Black)
Function
Connector B
Rear Right (+) / Purple
Rear Right (-) / Purple with Black Stripe
Front Right (+) / Gray
Front Right (-) / Gray with Black Stripe
Front Left(+) / White
Front Left(-) / White with Black Stripe
Rear Left (+) / Green
Rear Left (-) / Green with Black Stripe
Microphone
(Black Jack-in)
(Black Jack-in)
Steering Wheel Control
Rear line out
(Gray)
R(Red)
L(White)
