Beatfoxx BS-40BT Beachside Bedienungsanleitung

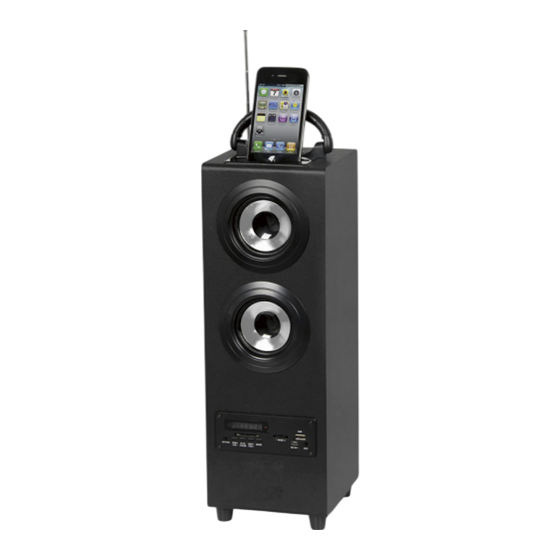

BS-40BT Beachside
Portable Bluetooth Speaker
ArtNr 00044036/..037/..038/..039
Please read these instructions carefully
before using the device and retain for
future reference
Important Safety Instructions
Keep the unit away from heat sources, direct
sunlight, humidity, water and any other liquids. Do
not operate the unit if it has been exposed to water,
moisture or any other liquids to prevent against
electric shock, explosion and/or injury to yourself
and damage to the unit. Do not use the unit if it has
been dropped or damaged in any way. Repairs to
electrical equipment should only be performed by
qualified staff. Improper repairs may place the user
to serious risk. Do not use the unit with wet hands.
Do not put objects into any of the openings. Keep
the unit free from dust, lint etc. Do not use this unit
for anything other than its intended use. Keep the
unit out of reach of small children. This product is
not a toy. Do not use chemical cleaning solvents to
clean. Do not open the device. For cleaning only use
soft and dry cloth.
Getting Started
Unpack the Bluetooth speaker & accessories.
Remove all packaging from the Bluetooth speaker.
Check if the box and accessories is not damaged.
Package contents
BS-40BT Beachside Bluetooth Speaker, Instruction
Manual, USB charging cable, 3.5mm stereo audio
cable, IR remote control
Player
Charging
Power off the device. Connect the USB charging
cable with a USB net adaptor or USB computer
socket. Connect the opposite side of charging cable
with DC/5V input socket. During charging the LED
indicator light will show red light. When the device is
fully charged, the LED turns off. Charging will take 4-
5 hrs. After charging disconnect the loading cable.
Operation Modes
After the battery is fully charged power on the
device with ON/OFF switch. By pressing mode
button you can navigate through different speaker
modes. (LINE Bluetooth FM Radio USB). If
there is no audio cable connected to AUX socket you
cannot chose LINE mode. If there is no USB storage
device or SD card you cannot switch to USB/SD
player mode.
Controls and operation
Press Pause/Play button to control music playback.
Long press VOL+ button to increase the volume,
VOL- button to decrease the volume. Volume level
will be displayed from U00 to U32. Short press
"NEXT" button to play next track, short press "PREV"
button to play previous track. With "BASS +/-"
control you can adjust the bass (subwoofer) volume.
Bluetooth pairing
Turn power switch to "ON" position, with mode
button you can select Bluetooth mode, "blue" is
flashing on the display. After the speaker signals a
tone the device is ready to pair. For first time pairing
turn on Bluetooth mode on your smartphone or
Bluetooth player. Scan for Bluetooth devices.
Connect with "BS-40BT" device. The device will
confirm connection with a signal tone.
Start to play music on your smartphone or Bluetooth
player. With the play and volume controls you can
control the playback. You can use the control
functions on your Bluetooth device as well. With
power on/off switch you can switch off the device
after use. This will safe battery energy. The working
time of the battery depends on playing volume.
LINE In (AUX In) Function
With the speaker powered on, connect the AUX in
jack with the included 3.5mm stereo cable and your
external audio device (smartphone, CD or MP3
AUX
player). Press the mode button until "LINE
shown on the display. Use play/pause/stop buttons
on your external audio player to control music play.
With volume controls you can control overall volume
level (see above). Disconnect the Auxiliary cable
when finished.
FM Radio Mode
Selecting FM Radio Mode by pressing the mode
button until frequency and "FM" is shown on the
display. Pull out the FM antenna completely. Long
press the play/pause button to start the automatic
search for radio stations. All detected stations are
stored from P01 to Pxx. With NEXT (track) and PREV
buttons you can navigate through the stations which
are in storage.
USB device / SD card
Insert a USB storage device (USB stick) or SD card in
USB socket or card slot. Select the USB mode. The
number of the actual track is shown on the display
e.g. 0001 after 1sec the display will show the elapsed
time of the track. The player can play music files in
MP3 format. Please take care that the files are
stored in the main root of the device. No folders are
allowed to be on the storage device.
Please Note
Not all mobile phones support all the functions listed
above. Please refer to your mobile phones user
manual for further information.
IR Remote control
Many of the control functions you can operate by
using the IR remote control. Please hold the remote
control in direction of the LCD display. Play, Pause,
Mode, VOL +/- functions are same like description
above. By short press on EQ button you can select 7
EQ presets (E0 to E6). In FM mode you can use CH
+/- buttons to manually select FM radio frequency.
With numeric buttons and ENTER key you can select
a radio frequency directly.
Bluetooth specification Bluetooth V2.1 + EDR
BT operating distance 10m (max.)
Frequency 150Hz-20KHz
Speaker power 2x3W + subwoofer
Rechargeable Lithium Battery 3.7V / 2000mAh
Charging Time approx. 5 hours
Playing Time approx. 3 hours
Musikhaus Kirstein GmbH
" is
Bernbeurenerstrasse 11
86956 Schongau/Germany
www.kirstein.de
CE conformity
The CE-marking which is made on your product
and/or packing resp. user manual confirms the
compliance of the product with all for this item
related harmonized EC directives. You can download
the EC declaration of conformity for this item under
download link below:
Http://www.kirstein.de/docs/Konformitaetserklaer
ung/CE_Konformitaetserklaerung_000xxxxx.pdf
Please replace the placeholder „xxxxx" by the last 5
digits of the product article number.
