MONTAGEANLEITUNG Schiebetürenschrank & Mittelwand-Einbausatz TYP 2971 / 2972 / 2991 /2992 & 2899 Sliding-door wardrobe & Centre partition set Armoire à portes coulissantes & Set cloison centrale Schuifdeurkast & Inbouwset · · · MONTAGEANLEITUNG ASSEMBLY INSTRUCTION NOTICE DE MONTAGE MONTAGEHANDLEIDING...
Seite 2

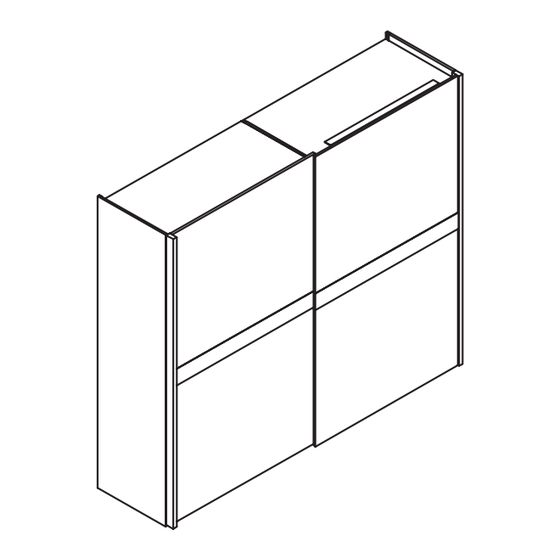

MONTAGEANLEITUNG Schiebetürenschrank & Mittelwand-Einbausatz TYP 2971 / 2972 / 2991 /2992 & 2899 Sliding-door wardrobe & Centre partition set Armoire à portes coulissantes & Set cloison centrale Schuifdeurkast & Inbouwset GESAMTÜBERSICHT · SUMMARY · VUE GENERALE · TOTAALOVERZICHT Ø 8mm...
Seite 3
MONTAGEANLEITUNG Schiebetürenschrank & Mittelwand-Einbausatz TYP 2971 / 2972 / 2991 /2992 & 2899 Sliding-door wardrobe & Centre partition set Armoire à portes coulissantes & Set cloison centrale Schuifdeurkast & Inbouwset GESAMTÜBERSICHT · SUMMARY · VUE GENERALE · TOTAALOVERZICHT SEITE 3...
Seite 4
MONTAGEANLEITUNG Schiebetürenschrank & Mittelwand-Einbausatz TYP 2971 / 2972 / 2991 /2992 & 2899 Sliding-door wardrobe & Centre partition set Armoire à portes coulissantes & Set cloison centrale Schuifdeurkast & Inbouwset GESAMTÜBERSICHT · SUMMARY · VUE GENERALE · TOTAALOVERZICHT 6,3x16 SEITE 4...
Seite 5
MONTAGEANLEITUNG Schiebetürenschrank & Mittelwand-Einbausatz TYP 2971 / 2972 / 2991 /2992 & 2899 Sliding-door wardrobe & Centre partition set Armoire à portes coulissantes & Set cloison centrale Schuifdeurkast & Inbouwset MONTAGE · ASSEMBLY · MONTAGE · MONTAGE Nur diesen Einschraubbolzen bei Außenseiten verwenden Only use this bolt for the outer side sections Utilisez uniquement cette cheville à...
Seite 6
MONTAGEANLEITUNG Schiebetürenschrank & Mittelwand-Einbausatz TYP 2971 / 2972 / 2991 /2992 & 2899 Sliding-door wardrobe & Centre partition set Armoire à portes coulissantes & Set cloison centrale Schuifdeurkast & Inbouwset MONTAGE · ASSEMBLY · MONTAGE · MONTAGE B 8x C 4x...
Seite 7
MONTAGEANLEITUNG Schiebetürenschrank & Mittelwand-Einbausatz TYP 2971 / 2972 / 2991 /2992 & 2899 Sliding-door wardrobe & Centre partition set Armoire à portes coulissantes & Set cloison centrale Schuifdeurkast & Inbouwset MONTAGE · ASSEMBLY · MONTAGE · MONTAGE A 8x A 8x...
Seite 8
MONTAGEANLEITUNG Schiebetürenschrank & Mittelwand-Einbausatz TYP 2971 / 2972 / 2991 /2992 & 2899 Sliding-door wardrobe & Centre partition set Armoire à portes coulissantes & Set cloison centrale Schuifdeurkast & Inbouwset MONTAGE · ASSEMBLY · MONTAGE · MONTAGE SEITE 8...
Seite 9
MONTAGEANLEITUNG Schiebetürenschrank & Mittelwand-Einbausatz TYP 2971 / 2972 / 2991 /2992 & 2899 Sliding-door wardrobe & Centre partition set Armoire à portes coulissantes & Set cloison centrale Schuifdeurkast & Inbouwset MONTAGE · ASSEMBLY · MONTAGE · MONTAGE 1-12 mm J 6x...
Seite 10
MONTAGEANLEITUNG Schiebetürenschrank & Mittelwand-Einbausatz TYP 2971 / 2972 / 2991 /2992 & 2899 Sliding-door wardrobe & Centre partition set Armoire à portes coulissantes & Set cloison centrale Schuifdeurkast & Inbouwset MONTAGE · ASSEMBLY · MONTAGE · MONTAGE F 8x D 4x...
Seite 11
MONTAGEANLEITUNG Schiebetürenschrank & Mittelwand-Einbausatz TYP 2971 / 2972 / 2991 /2992 & 2899 Sliding-door wardrobe & Centre partition set Armoire à portes coulissantes & Set cloison centrale Schuifdeurkast & Inbouwset MONTAGE · ASSEMBLY · MONTAGE · MONTAGE hinten laufende Tür, links Rear running door, left Porte coulissante arrière, à...
Seite 12
MONTAGEANLEITUNG Schiebetürenschrank & Mittelwand-Einbausatz TYP 2971 / 2972 / 2991 /2992 & 2899 Sliding-door wardrobe & Centre partition set Armoire à portes coulissantes & Set cloison centrale Schuifdeurkast & Inbouwset MONTAGE · ASSEMBLY · MONTAGE · MONTAGE SEITE 12...
Seite 13
MONTAGEANLEITUNG Schiebetürenschrank & Mittelwand-Einbausatz TYP 2971 / 2972 / 2991 /2992 & 2899 Sliding-door wardrobe & Centre partition set Armoire à portes coulissantes & Set cloison centrale Schuifdeurkast & Inbouwset MONTAGE · ASSEMBLY · MONTAGE · MONTAGE ungesichert unsecured non fixé...
Seite 14
MONTAGEANLEITUNG Schiebetürenschrank & Mittelwand-Einbausatz TYP 2971 / 2972 / 2991 /2992 & 2899 Sliding-door wardrobe & Centre partition set Armoire à portes coulissantes & Set cloison centrale Schuifdeurkast & Inbouwset MONTAGE · ASSEMBLY · MONTAGE · MONTAGE ungesichert unsecured non fixé...
Seite 15
MONTAGEANLEITUNG Schiebetürenschrank & Mittelwand-Einbausatz TYP 2971 / 2972 / 2991 /2992 & 2899 Sliding-door wardrobe & Centre partition set Armoire à portes coulissantes & Set cloison centrale Schuifdeurkast & Inbouwset MONTAGE · ASSEMBLY · MONTAGE · MONTAGE M 4x K 2x Ø...
Seite 16
MONTAGEANLEITUNG Schiebetürenschrank & Mittelwand-Einbausatz TYP 2971 / 2972 / 2991 /2992 & 2899 Sliding-door wardrobe & Centre partition set Armoire à portes coulissantes & Set cloison centrale Schuifdeurkast & Inbouwset GESAMTÜBERSICHT · SUMMARY · VUE GENERALE · TOTAALOVERZICHT SEITE 16...
Seite 17
MONTAGEANLEITUNG Schiebetürenschrank & Mittelwand-Einbausatz TYP 2971 / 2972 / 2991 /2992 & 2899 Sliding-door wardrobe & Centre partition set Armoire à portes coulissantes & Set cloison centrale Schuifdeurkast & Inbouwset GESAMTÜBERSICHT · SUMMARY · VUE GENERALE · TOTAALOVERZICHT Beschlagbeutel now! 1070 Mat.-Nr.: 1119710...
Seite 18
MONTAGEANLEITUNG Schiebetürenschrank & Mittelwand-Einbausatz TYP 2971 / 2972 / 2991 /2992 & 2899 Sliding-door wardrobe & Centre partition set Armoire à portes coulissantes & Set cloison centrale Schuifdeurkast & Inbouwset MONTAGE · ASSEMBLY · MONTAGE · MONTAGE Ø 2.5 mm...
Seite 19
MONTAGEANLEITUNG Schiebetürenschrank & Mittelwand-Einbausatz TYP 2971 / 2972 / 2991 /2992 & 2899 Sliding-door wardrobe & Centre partition set Armoire à portes coulissantes & Set cloison centrale Schuifdeurkast & Inbouwset MONTAGE · ASSEMBLY · MONTAGE · MONTAGE A 4x B 4x...
