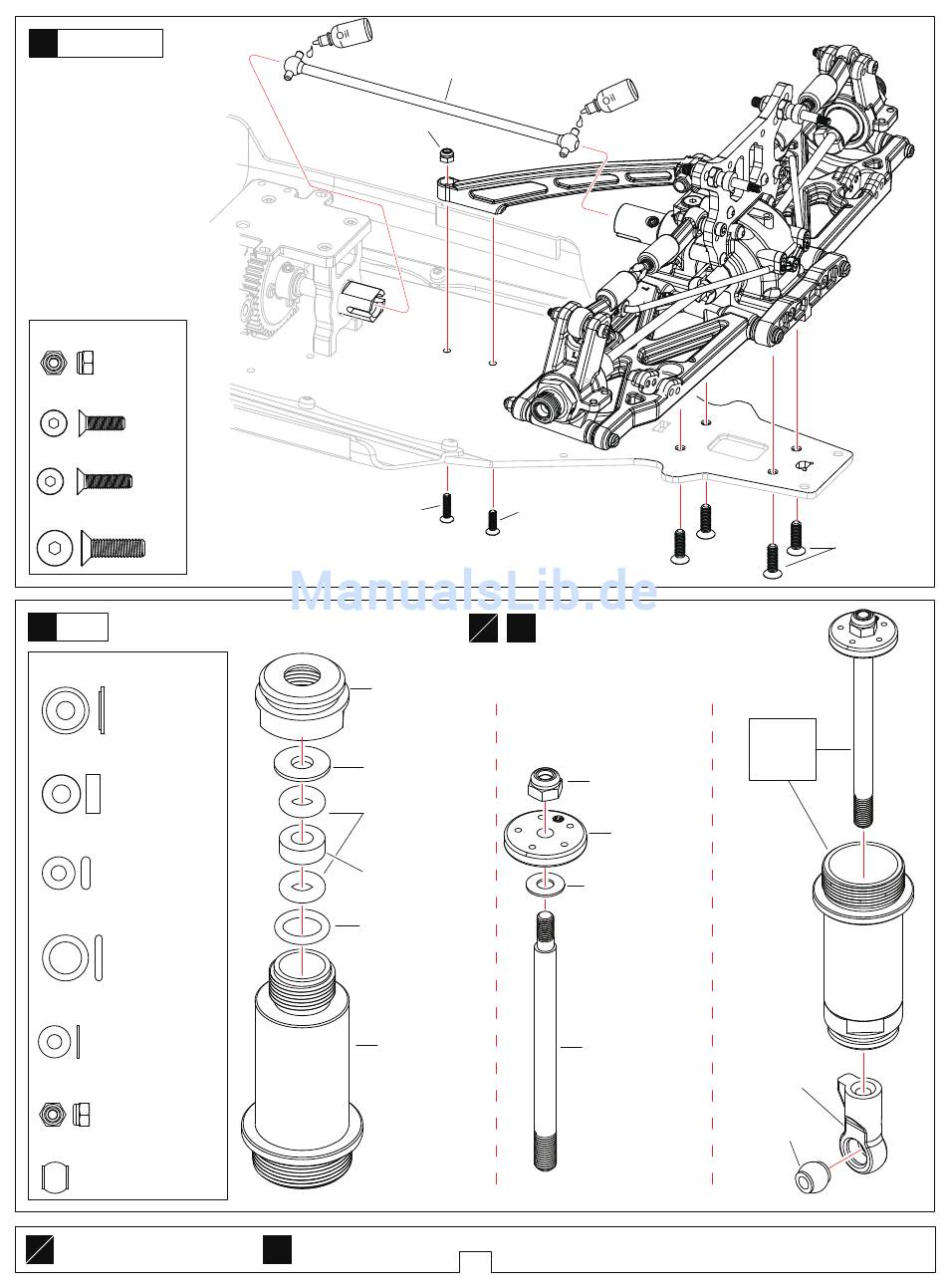

Rear Suspension
Aufhängung hinten
E
-
Bag
T08666 M3 Nylon Nut
M3 Mutter
...............1
T08674 M3x10 Screw
M3x10Schraube
.........1
T08674 M3x12 Screw
M3x12Schraube
......1
T08674 M4x14 Screw
M4x14Schraube
...4
F
-
29
Shock
Bag
Dämpfer
T08885 1.2mm Plastic Washer
1.2mm Plastik Scheibe
.....................4
T08885 3mm Plastic Washer
3mm Plastik Scheibe
.....................4
T08885 3.8x2.3 O-ring
3.8x2.3 O-Ring
........................8
T08884 O-ring
O-Ring
.....................4
T08885 3.1x7x0.4 Washer
3.1x7x0.4 Scheibe
........................4
T08885 M3 Nylon Nut
M3 Mutter
.....................4
T08720 6.8 Ball stud
6.8 Kugel
...........................4
Assemble both Front and Rear
F
R
Vorne und hinten fertigen
T08880
128mm Drive Shaft
128mm Welle
T08666 M3
T08674 M3x12
T08884
Shock Bottom cover
Dämpfer Abschlusskappe
T08885
1.2mm Plastic Washer
1.2mm Plastikscheibe
T08885
3.8x2.3 O-ring
3.8x2.3 O-ring
T08885
3mm Plastic Washer
3mm Plastikscheibe
T08884
O-ring
O- Ring
T08884
Front Shock Body-Short
Dämpfergehäuse kurz
Rear Shock Body-Long
Dämpfergehäuse lang
Assemble as many times as specified
x2
In angegebener Anzahl
T08674 M3x10
x2
F
R
T08885 M3
T08885
Shock Piston
Kolbenplatte
T08885 3.1x7x0.4
T08885
Front Shock Shaft-Short
Vorne Welle kurz
Rear Shock Shaft-Long
Hinten Welle lang
14
T08674
M4x14
Front-Short
Vorne kurz
Rear-Long
Hinten lang
T08726
Ball End-Short
Kugelpfanne
T08720
6.8 Ball stud
6.8 Kugel
