Instruction manual
Description:
This product is a car charger for a varietz of
notebooks. It is able to charge as well other
digital products like MP3, MP4, PMP , PDA,
mobile phone, etc. which can be charged via
USB socket.
Charging current is 3.2A for all different output
voltages. Charging time is very short if com-
pared with standard chargers.
The overvoltage protection and the current
limitation make the CP 80 USB a safe and
reliant product with high durability.
With the new USB charging adapter the
CP 80 USB can charge a variety of digital
products by using a suitable USB lead.
You can charge a notebook and use digital
products at the same time.
Read this Instruction manual carefully
before use.

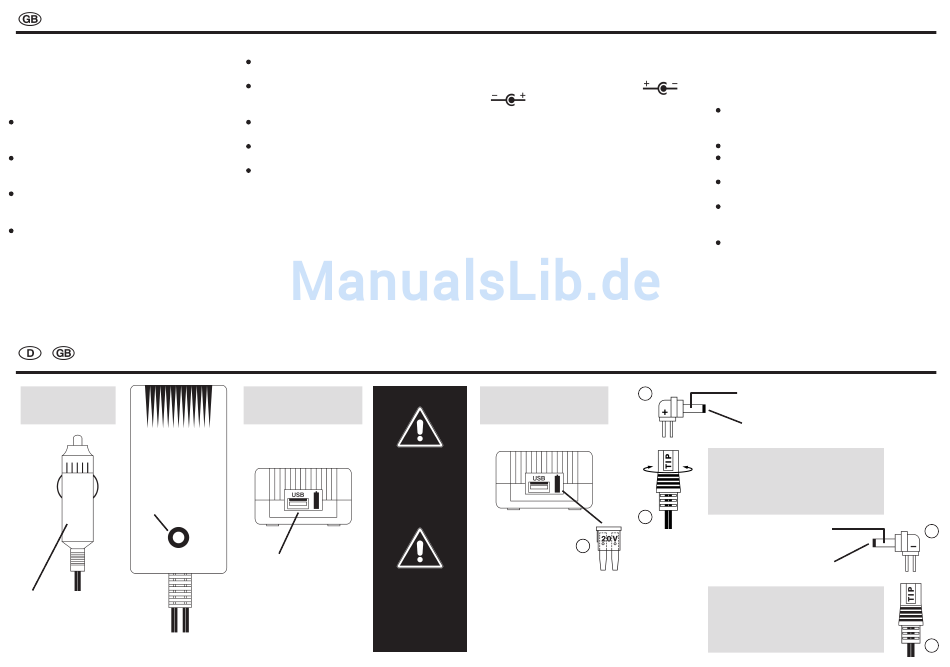

Zum Wechseln der Polarität Stecker umgekehrt (180°gedreht) aufstecken.
To change the polarity turn plug 180° before insertion.
Eingang: 12 V DC
Input: 12 V DC
CP 80 USB
Betriebsanzeige
Power „ON" light
Kfz-Ladekabel für
die Zigaretten-
Anzünderbuchse im Pkw.
Car cord for
cigarette lighter socket.
Operation
Choose the correct DC plug and connect it
with charger properly. See for correct polarity!
Choose the correct adjusting voltage resis-
tance (3) and connect it with the socket in the
charger. Make sure that you insert it properly.
Third, connect car cord with cigarette lighter
socket in your car.
The green LED is lighting up to indicate
charger is ready for charging process.
Then connect charging connector with note-
book's power adaptor socket. The notebook
indicates that it is being charged.
Choose the correct connector
The enclosed connectors - coaxial plug - cor-
respond to those most commonly used. The
correct connector should fit properly using a
little pressure. Do not use extreme force to set
the connector as this could damage the unit to
be powered.
Ausgang: 5 V / 500 mA
Output: 5 V / 500 mA
Einzelstecker
nicht
in die Steckdose
stecken.
USB Slot
Never insert
coaxial and jack
plugs into
the socket.
Set the correct polarity for the equipment
to be powered
Look on the equipment or its instruction
manual for the polarity symbol
and set the Adapter (2) to the correct
polarity (1), (see drawing).
Electrical Specification
Input Voltage: DC 12-14.8 V 7.5 A MAX
Output power: 76.8 W max.
USB output: 5V / 500 mA MAX
Efficiency: min. 90 %
Output Voltages - adjustable:
15 V / 3.2 A
16 V / 3.2 A
18 V / 3.2 A
19 V / 3.2 A
20 V / 3.2 A
22 V / 3.2 A
24 V / 3.2 A MAX
2
Ausgang: 15 - 24 V / 3,2 A
Output: 15 - 24 V / 3.2 A
1
3
Codierwiderstand 20 V
für eine Ausgangspannung
von 20 V am Polaritätswechsler
Voltage resistance 20 V
for 20 V ouput voltage
at the polarity converter
Appearance and Size:
Size: W 56 x L 115 x H 35 mm
Weight: about 240 g
or
Instruction for use:
If the polarity is not known then try the equip-
ment with one way and reverse the polarity if
that is not successful.
This Charger is for indoor use only.
This Charger should be disconnected from
the cigarette lighter socket when not in use.
An authorized dealer is to be contacted at
once in case of any damage.
Protect the unit against oil, grease, aggressive
detergents and solvents as unit may be des-
troyed.
Following a drop or if mains pins are affected
the unit has to be checked immediately by an
authorized dealer.
minus außen
outer negative
plus innen
inner positive
Beispiel:
Kennzeichnung TIP auf POS+
Example:
„TIP"on the plug points at „POS+"
plus außen
outer positive
minus innen
inner negative
Beispiel:
Kennzeichnung TIP auf NEG –
Example:
„TIP" on the plug points at „NEG –"
