Easywave RCP05 Anleitung Seite 2

GB

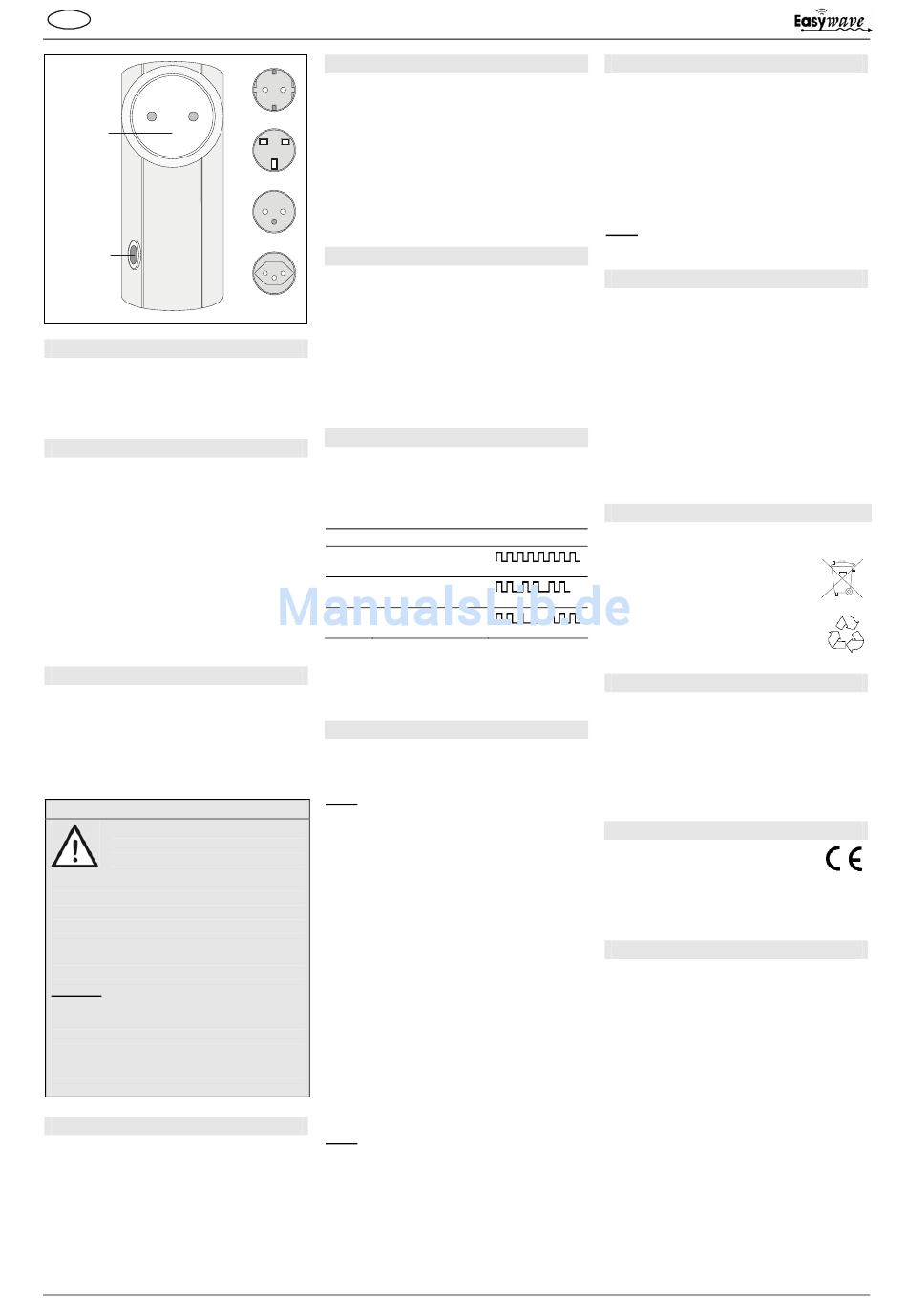

RCP05 Plug-In Receiver
Mains
Output
Programming
button
with LED
Models
RCP05-5001E-01 Art.-Nr. G66 021 10 .......... 868.30 MHz / D
RCP05-5001E-02 Art.-Nr. G66 021 11 .......... 868.30 MHz / GB
RCP05-5001E-04 Art.-Nr. G66 021 12 .......... 868.30 MHz / F/B
RCP05-5001E-05 Art.-Nr. G66 021 13 .......... 868.30 MHz / CH
Technical Details
Frequency: 868.30 MHz
Modulation: FSK
Power supply: 230 V AC / 50 Hz
Current consumption:
- real power ca. 0.21 W
- apparent power ca. 0.5 VA
Protection class: II
Degree of protection: IP20
Operating temperature: -10°C to +40°C
Output: 1 potential-loaded
relay contact (N.O.)
Max. contact rating: 16 A / 3,680 VA
Intended Use
This unit may only be used as an electronic
control (radio receiver) together with mains-
powered devices and only indoors.
The manufacturer shall not be liable for any
damage caused by improper or non-intended
use!
Safety advice
Carefully read through these
instructions before using the radio
control!
We will not accept any liability for personal
injury or damage to property caused by
failure to observe the operating instructions
and in particular the safety advice!
Observe the applicable laws, standards and
regulations as well as the manufacturer's
instructions for the devices to be operated!
Caution! Pay attention to the max. contact
rating (see Technical Details)!
Have faulty units checked by the manufac-
turer!
Do not open the unit housing!
Do not make any unauthorized alterations or
modifications to the unit!
Function
The RCP05 Plug-In Receiver is designed for
switching a mains-powered device on and off.
The receiver can be operated both by Easy-
wave multi-channel transmitters and single-
channel transmitters.
You can memorize a total of 32 transmission
codes.
Art.-Nr. 331 061 7x
Installation Advice
•
When selecting an electric socket, make
sure that the radio transmission between
the transmitter and receiver is unob-
D
structed. Brick walls and other insulating
materials reduce the range of the radio
transmission.
•
Avoid installing near large metal surfaces
GB
or close to the ground. If installation near
metal surfaces cannot be avoided, main-
tain a distance of at least 0.1 m.
F/B
Start-Up
1. Take the Plug-In Receiver out of the
package.
CH
2. Plug the unit into an electric socket.
3. Via the mains plug connect the device to
be switched to the mains output of the
Plug-In Receiver.
4. Transfer the codes of the transmitters to
the receiver (see section "Memorizing the
Transmission Codes").
Programming and Operating Modes
There are three programming modes for the 3
operating modes of the Plug-In Receiver.
The different modes are displayed by different
LED flashings.
Mode Operating Mode
1 ON/OFF (2 button
operation)
2 ON/OFF (1 button
operation)
3 Timer mode
7 minutes, retrigger
Change the programming mode by briefly
pressing the programming button
(< 1.6 sec.): Mode 1 –> Mode 2 –>
Mode 3 –> Operating mode.
Memorizing the Transmission Codes
In the "Memorizing the Transmission Codes"
mode you can transfer the codes of your
transmitter to the Plug-In Receiver.
Note: Generally you only have to transfer the
code of one button A per transmitter. The
code of the opposite transmitter button will be
assigned automatically.
1. Briefly (< 1.6 sec.) press the programming
button. The programming mode 1 is acti-
vated. The LED flashes.
If necessary change the programming
mode (see "Programming and Operating
Modes").
2. Press and hold the transmitter button, with
which you wish to switch the device. If the
code has been memorized, the LED lights
up for approx. 4 sec. and then flashes
again. Release the transmitter button.
3. Repeat the programming procedure for the
other transmitters. The unit can memorize
up to 32 transmission codes.
4. By briefly pressing the programming
button, you can return to the operating
mode (see „Programming and Operating
Modes").
Note: In case of longer power failure pro-
gramming remains.
Deleting Specific Codes
In the "Specific Delete" mode you can delete
specific transmission Codes.
1. Keep the programming button pressed for
more than 1.6 sec. The delete mode is ac-
tivated. The LED flashes rapidly.
2. Press the selected transmitter button.
If the LED of the Plug-In Receiver lights up
for approx. 4 sec., the transmitter code has
been deleted.
Note: By briefly pressing the programming
button, you can abort the delete procedure.
Reset (Deleting Memory Completely)
In the "Reset" mode you can delete all codes
memorized in the Plug-In Receiver.
1. Keep the programming button pressed for
more than 1.6 sec. The delete mode is ac-
tivated. The LED flashes rapidly.
2. Press the programming button again and
keep it pressed for more than 1.6 sec. If
the LED lights up for approx. 4 secs, all
the memorized codes have been deleted.
Note: By briefly pressing the programming
button, you can abort the delete procedure.
Disposal
Waste electrical products should not be
LED Flashing
disposed of with household waste!
Put the packaging material into
a container for cardboard and
paper.
Dispose of the waste product via
a collection point for electronic
scrap or via your specialist dealer.
Warranty
Within the statutory warranty period we under-
take to rectify free of charge by repair or
replacement any product defects arising from
material or production faults.
Any unauthorized tampering with, or modifica-
tions to, the product shall render this warranty
null and void.
Conformity
This product complies with the es-
sential requirements of the R&TTE
directive 1999/5/EC.
The Declaration of Conformity can be found
on the internet at: www.eldat.de.
Customer Service
If, despite correct handling, faults or malfunc-
tions occur or if the product was damaged,
please contact the company at the address
below:
RTS Automation Vertriebsgesellschaft Ltd.
ELDAT GmbH
Warschauer Str. 7
Im Gewerbepark 14
DE-03042 Cottbus
D-15711 Zeesen
Telefon: +49 355 280 9311
Germany
Fax: +49 355 711 501
Phone: + 49 (0) 33 75 / 90 37-0
Internet: www.rts-automation-limited.de
Telefax: + 49 (0) 33 75 / 90 37-90
E-Mail: huk@rts-automation-limited.de
Internet: www.eldat.de
e-Mail: info@eldat.de
82047 1007 D/GB
