How to Determine the Angle between the Microphones

Area to be recorded
(e.g. orchestra or band)
b
a
α
ω

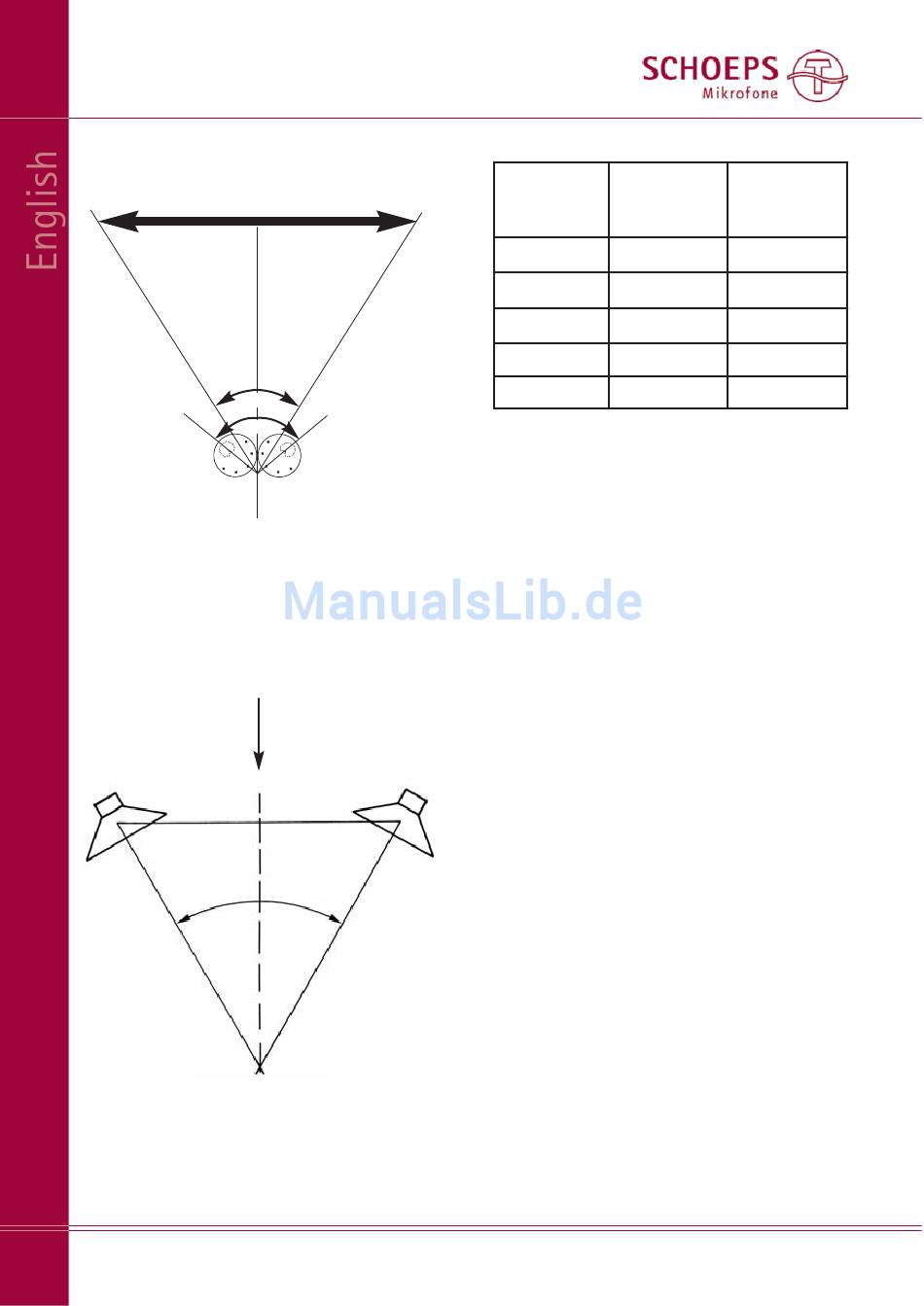

Fig. 3a
Recording angle α and the angle ω between
the microphones; all sound sources should be
lying within the recording angle α in order to
guarantee good mapping into the playback
area α ':
listener
Fig. 3b
The stereophonic recording angle α from Fig. 3a
is mapped into an angle α ' of 60° during
loudspeaker playback.
13 SCHOEPS GmbH · Spitalstr. 20 · D-76227 Karlsruhe (Durlach) · Tel: +49 721 943 20-0 · Fax: +49 721 943 2050
main stereo
axis
α '=
60°
angle ω
b/a
between the
microphones
4,3 130°
5,6 141°
8,3 153°
16,3 166°
oo 180°
Table 1
This table can be used to determine the ste-
reophonic recording angle α from the ratio of
b to a (according to Michael Williams)
www.schoeps.de · mailbox@schoeps.de
recording
angle α
130°
120°
110°
100°
90°
