Installation - IC Audio MT-PM-01 Benutzerhandbuch

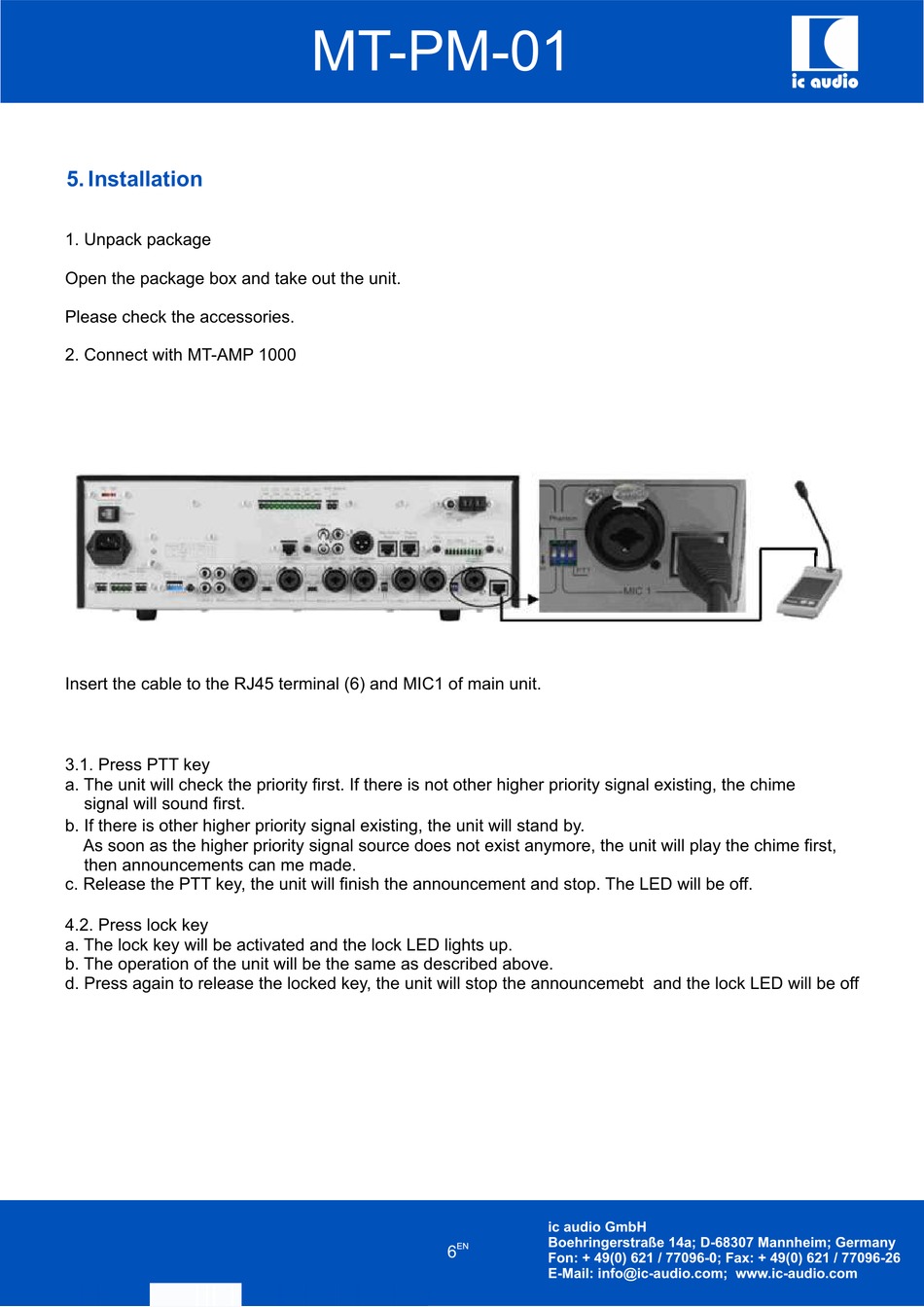

5. Installation

1. Unpack package
Open the package box and take out the unit.
Please check the accessories.
2. Connect with MT-AMP 1000
Insert the cable to the RJ45 terminal (6) and MIC1 of main unit.
3.1. Press PTT key
a. The unit will check the priority first. If there is not other higher priority signal existing, the chime
signal will sound first.
b. If there is other higher priority signal existing, the unit will stand by.
As soon as the higher priority signal source does not exist anymore, the unit will play the chime first,
then announcements can me made.
c. Release the PTT key, the unit will finish the announcement and stop. The LED will be off.
4.2. Press lock key
a. The lock key will be activated and the lock LED lights up.
b. The operation of the unit will be the same as described above.
d. Press again to release the locked key, the unit will stop the announcemebt and the lock LED will be off
MT-PM-01
EN
6
ic audio GmbH
Boehringerstraße 14a; D-68307 Mannheim; Germany
Fon: + 49(0) 621 / 77096-0; Fax: + 49(0) 621 / 77096-26
E-Mail: info@ic-audio.com; www.ic-audio.com
ic audio
