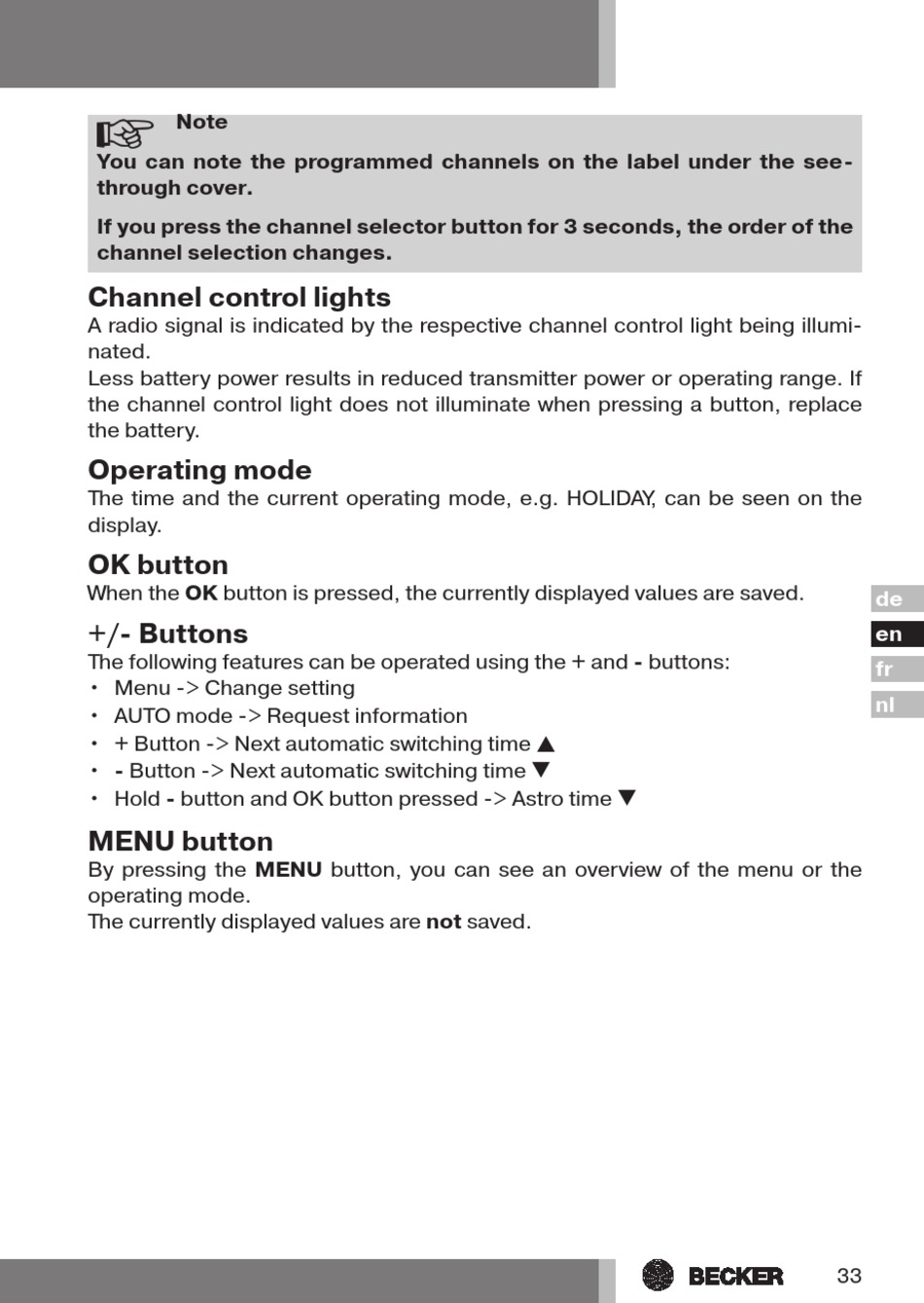

Operating Mode; Menu Button - Centronic TimeControl TC4410-II Montage- Und Betriebs-Anleitung

Note
You can note the programmed channels on the label under the see-
through cover.
If you press the channel selector button for 3 seconds, the order of the
channel selection changes.
Channel control lights
A radio signal is indicated by the respective channel control light being illumi-
nated.
Less battery power results in reduced transmitter power or operating range. If
the channel control light does not illuminate when pressing a button, replace
the battery.

Operating mode

The time and the current operating mode, e.g. HOLIDAY, can be seen on the
display.
OK button
When the OK button is pressed, the currently displayed values are saved.
+/- Buttons
The following features can be operated using the + and - buttons:
• Menu -> Change setting
• AUTO mode -> Request information
• + Button -> Next automatic switching time s
• - Button -> Next automatic switching time t
• Hold - button and OK button pressed -> Astro time t

MENU button

By pressing the MENU button, you can see an overview of the menu or the
operating mode.
The currently displayed values are not saved.
