Exsys EX-1063V Bedienungsanleitung

EX EX- EX - - 1063V 1063V 1063V
JUMPER SETTING & CONNECTORS
J5:
USB 2.0 - 10 pin connector (Default)
1 2 Pin Signal Pin
+5VCC +5VCC
3 4
Data1- Data2-
1 VCC1 +5V 5
Data1+ 5 6 Data2+
GND
7 8 GND 2 VCC2 +5V 6
9 10 GND
3 DATA1- 7
4 DATA2- 8
Attention!!!
Please make sure that you connect the cable in the right
order like shown in the list above. If you connect the cable
wrong it can destroy your hardware! The labelling on the
cable must match with the ones on our card.
If you use the internal USB A-Port J4 you can use only one
of the ports from the 10 Pin connector J5!
HARDWARE INSTALLATION
Attention! If you use Windows ME / Windows 2000 without service pack 4 or XP without
service pack. Please install the latest service pack first.
If you use Windows 2000 including service pack 4, Windows XP including SP 3, Vista, 7
or 8. Or you already installed the drivers please proceed with the following instructions
for hardware installation.
If you are ready with the jumper settings, please proceed with the following installation instructions.
Because there are large differences between PC's, we can give you only a general installation
guide for the EX-1063V. Please refer your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. If your pc case do have a front panel please follow the instructions at J5 above. Normally
the cables should be marked if not please ask the front panel manufacturer
4. If necessary please install now the external power supply to the card like shown at JP1 & J6
above.
5. Locate an available PCI expansion slot and remove its covers from the rear panel of your
computer.
6. Align the card with the expansion slot, and then gently but firmly, insert the card. Make sure
the card is seated and oriented correctly.
7. Then connect the card with a screw to the rear panel of the computer.
8. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
All OS
After the hardware installation the OS will recognize the device automatically and install the
drivers.
CHECK INSTALLED DRIVER
Open as sample the >Device manager< . Now you should see at „USB Devices" the following
new entrys: <USB Root Hub>.
If you see this or a similar information the device is installed correctly.
5
English English English EX EX- EX - - 1063V 1063V 1063V
DRIVER INSTALLATION
NEC Drivers (optional)
If you experience any performance problems or if you want to use older operating systems
which doesn't support USB 2.0 such as Windows 98SE. You can download the driver at our
Signal Pin Signal
website www.exsys.ch. Then you can install the optional NEC Drivers as follows.
DATA1+ 9 NC
Open and run the file "U2v2_1.exe" by double click on your mouse and follow the setup
DATA2+ 10 GND
program to finish installation process. After that shut down windows and follow the instructions
GND
for the Hardware installation. After installing the card simply start your computer and the card
will be recognized automatically by your system.
GND
MAC
The drivers are already integrated in MAC OS and the card will be installed automatically. In
doubt please refer to the installation manual from your MAC OS version !
LINUX
Because each individual distribution and kernel version of Linux is different, sadly we cant
provide a installation instruction here. Please refer to the installation manual for USB ports
from your Linux version !
English English English
J1 & J3:
2 x USB 2.0 Port verschraubbar
Die EX-1063V ist mit 2 externen und 1 internen Downstream Port ausgestattet. Die EX-1063V
ist voll kompatibel mit dem Microsoft Windows Standard OpenHCD Treibern und ist nach den
Normen des Universal Serial Bus (USB) Rev. 2.0 entwickelt worden. Sie hat einen Dual Speed
USB Transceiver. Sie unterstützt den 32Bit PCI & PCI-X Bus mit 5 Volt und 3,3 Volt. Durch die
externe Stromversorgung per PC-Netzteil werden an jedem Port die vollen 500mA zur Verfü-
gung gestellt. Der serielle USB 2.0 Bus unterstützt optimal die Leistung des schnellen NEC
Chipsatz. Die Karte gewährleistet so eine sichere Datenübertragung und exzellente Perfor-
mance von bis zu 480Mbit/s. Es ist nicht möglich die I/O Adressen und Interrupts manuell
einzustellen, da die Einstellungen vom System (BIOS) und beim installieren des Betriebssys-
tems automatisch vorgenommen werden. Die 2 externen Anschlüsse sind zusätzlich
verschraubbar.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
J1 & J3 & J4:
JP1:
J6:
6
Bedienungsanleitung Bedienungsanleitung
Vers. 1.3 / 11.04.13

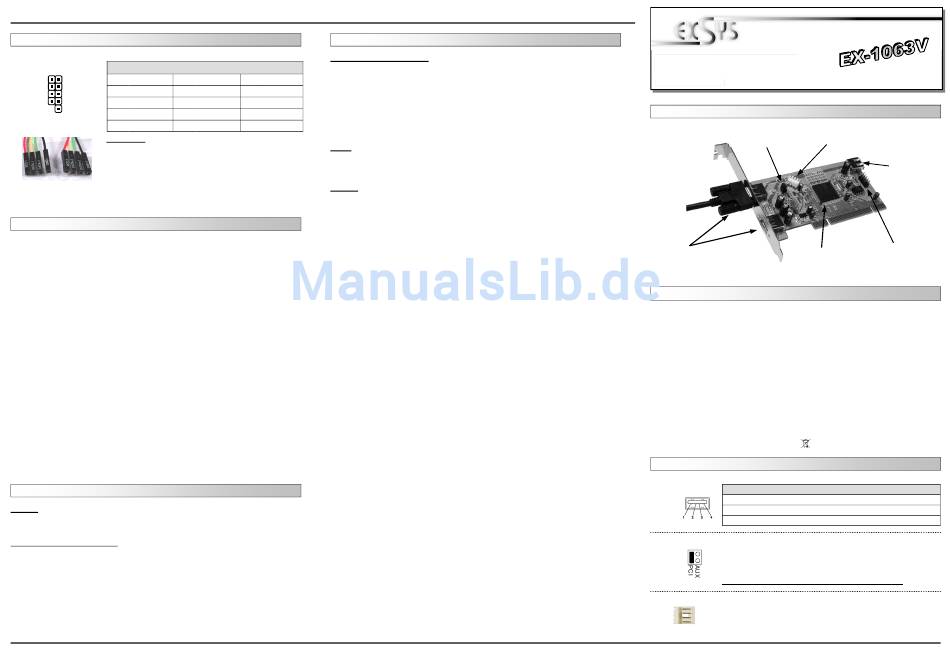

AUFBAU
JP1: Stromquelle wählen J6: Anschluss vom Netzteil für
PCI oder AUX +5V oder +12V Spannung
NEC Chip-Set
BESCHREIBUNG & TECHNISCHE DATEN
PCI 32-Bit oder PCI-X, 33Mhz
WIN 9.x/ ME/ 2000/ XP/ Vista/ 7/ 8/ Server 20xx/ MAC/ (Linux vom OS)
2x USB A-Buchse extern, 1x USB A-Buchse intern, 1x 10 Pin Stecker
EX-1063V, Treiber CD, Anleitung
CE CE CE CE / FCC / RoHS / WEEE DE97424562 / WHQL
JUMPER EINSTELLUNG & ANSCHLÜSSE
USB 2.0 A-Buchse
Pin Signal
1 VCC
2 DATA-
PCI = Strom vom PCI-BUS (Werkseinstellung)
AUX = Strom vom PC-Netzteil des Rechners
(Zur Entlastung des Mainboards und zur stabilen Stromversorgung bei
Verwendung von Endgeräten mit hohem Stromverbrauch).
Anschluss J6 muss mit PC-Netzteil verbunden werden!
Wenn JP1 auf AUX gestellt ist, muss J6 mit dem Stromanschluss
1 +5V
vom PC Netzteil verbunden werden!
2 GND
Bitte auf die richtige Polarität achten! Achtung! Stecker nie bei
3 GND
4 +12V eingeschaltetem PC ein oder ausstecken!
1
J4: 1 x USB 2.0
Port intern
J5: USB Port 3 & 4
für Front Anschluss
Pin Signal
3 DATA+
4 GND
