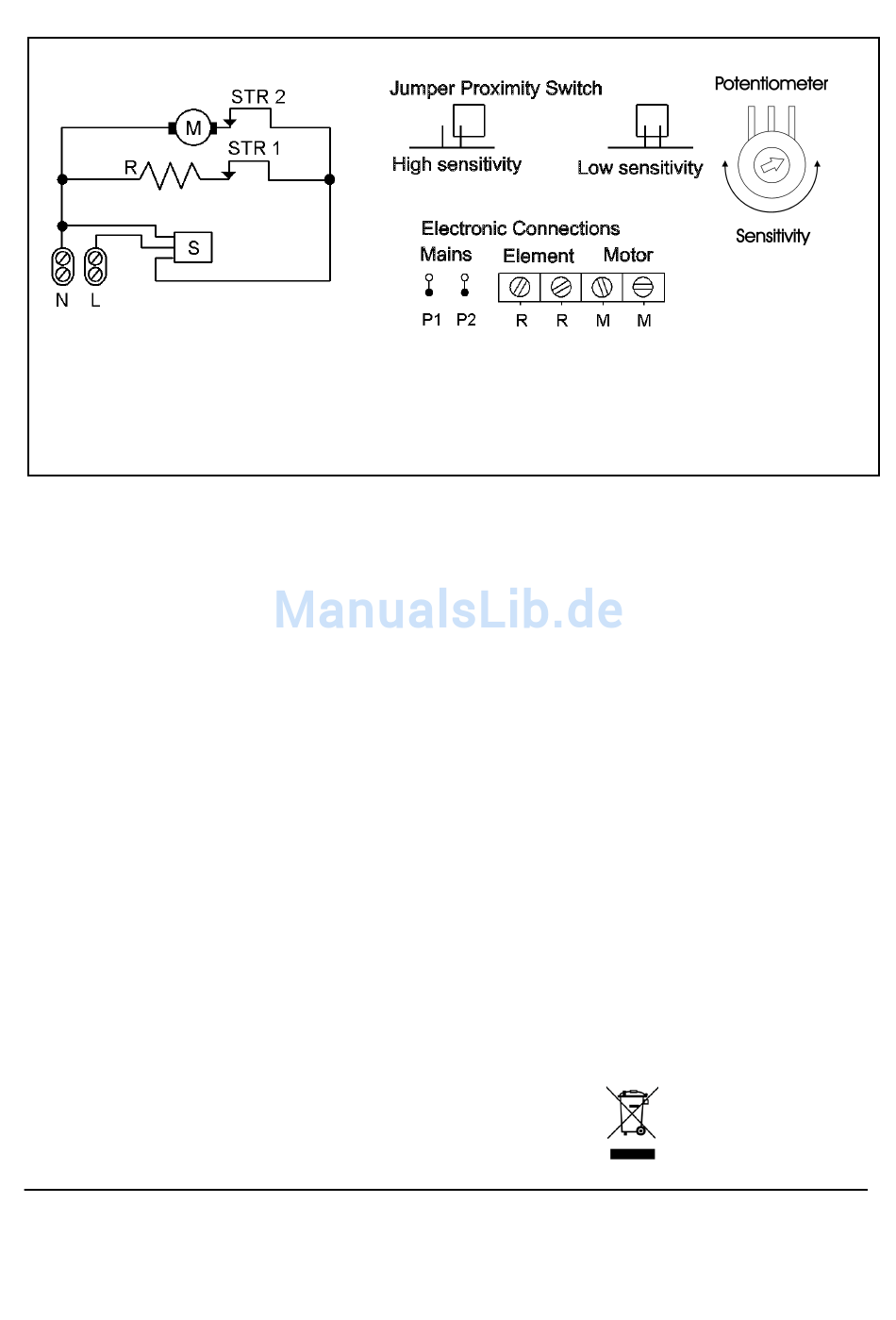

Circuit Diagram

L Phase
M Motor
N Neutral conductor
P1, P2 Power supply, electronic items
Guarantee
This product is guaranteed for two years in accordance with our guarantee terms.
Disposal
The appliance must not be disposed of with household waste.
Glen Dimplex Deutschland GmbH
Am Goldenen Feld 18
D-95326 Kulmbach
Technical specifications subject to change
R Heating element
S Proximity switch
STR 1 Safety cut-out, heating element
STR 2 Safety cut-out, motor
