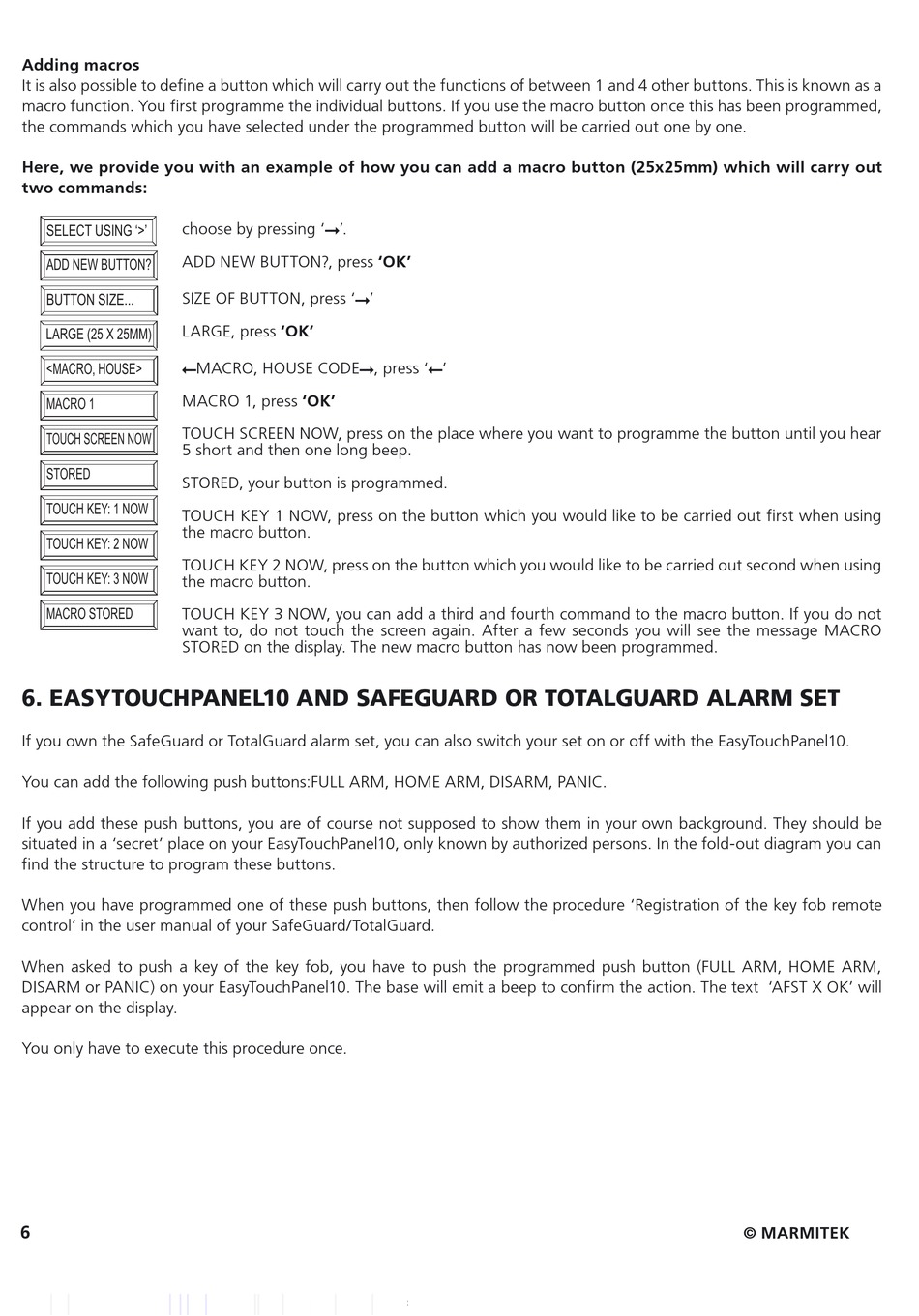

Adding macros
It is also possible to define a button which will carry out the functions of between 1 and 4 other buttons. This is known as a
macro function. You first programme the individual buttons. If you use the macro button once this has been programmed,
the commands which you have selected under the programmed button will be carried out one by one.
Here, we provide you with an example of how you can add a macro button (25x25mm) which will carry out
two commands:
6(/(&7 86,1* µ!¶
choose by pressing ' '.
$'' 1(: %87721" ADD NEW BUTTON?, press 'OK'
%87721 6,=(
SIZE OF BUTTON, press ' '
LARGE, press 'OK'
/$5*(  ; 00
0$&52 +286(!
MACRO 1, press 'OK'
0$&52
TOUCH SCREEN NOW, press on the place where you want to programme the button until you hear
728&+ 6&5((1 12:
5 short and then one long beep.
6725('
STORED, your button is programmed.
728&+ .(<  12:
TOUCH KEY 1 NOW, press on the button which you would like to be carried out first when using
the macro button.
728&+ .(<  12:
TOUCH KEY 2 NOW, press on the button which you would like to be carried out second when using
728&+ .(<  12:
the macro button.
0$&52 6725('
TOUCH KEY 3 NOW, you can add a third and fourth command to the macro button. If you do not
want to, do not touch the screen again. After a few seconds you will see the message MACRO
STORED on the display. The new macro button has now been programmed.

6. EASYTOUCHPANEL10 AND SAFEGUARD OR TOTALGUARD ALARM SET

If you own the SafeGuard or TotalGuard alarm set, you can also switch your set on or off with the EasyTouchPanel10.
You can add the following push buttons:FULL ARM, HOME ARM, DISARM, PANIC.
If you add these push buttons, you are of course not supposed to show them in your own background. They should be
situated in a 'secret' place on your EasyTouchPanel10, only known by authorized persons. In the fold-out diagram you can
find the structure to program these buttons.
When you have programmed one of these push buttons, then follow the procedure 'Registration of the key fob remote
control' in the user manual of your SafeGuard/TotalGuard.
When asked to push a key of the key fob, you have to push the programmed push button (FULL ARM, HOME ARM,
DISARM or PANIC) on your EasyTouchPanel10. The base will emit a beep to confirm the action. The text 'AFST X OK' will
appear on the display.
You only have to execute this procedure once.
6
MACRO, HOUSE CODE , press ' '
