3. Set-Up and Use

3.3. Connections to the television set

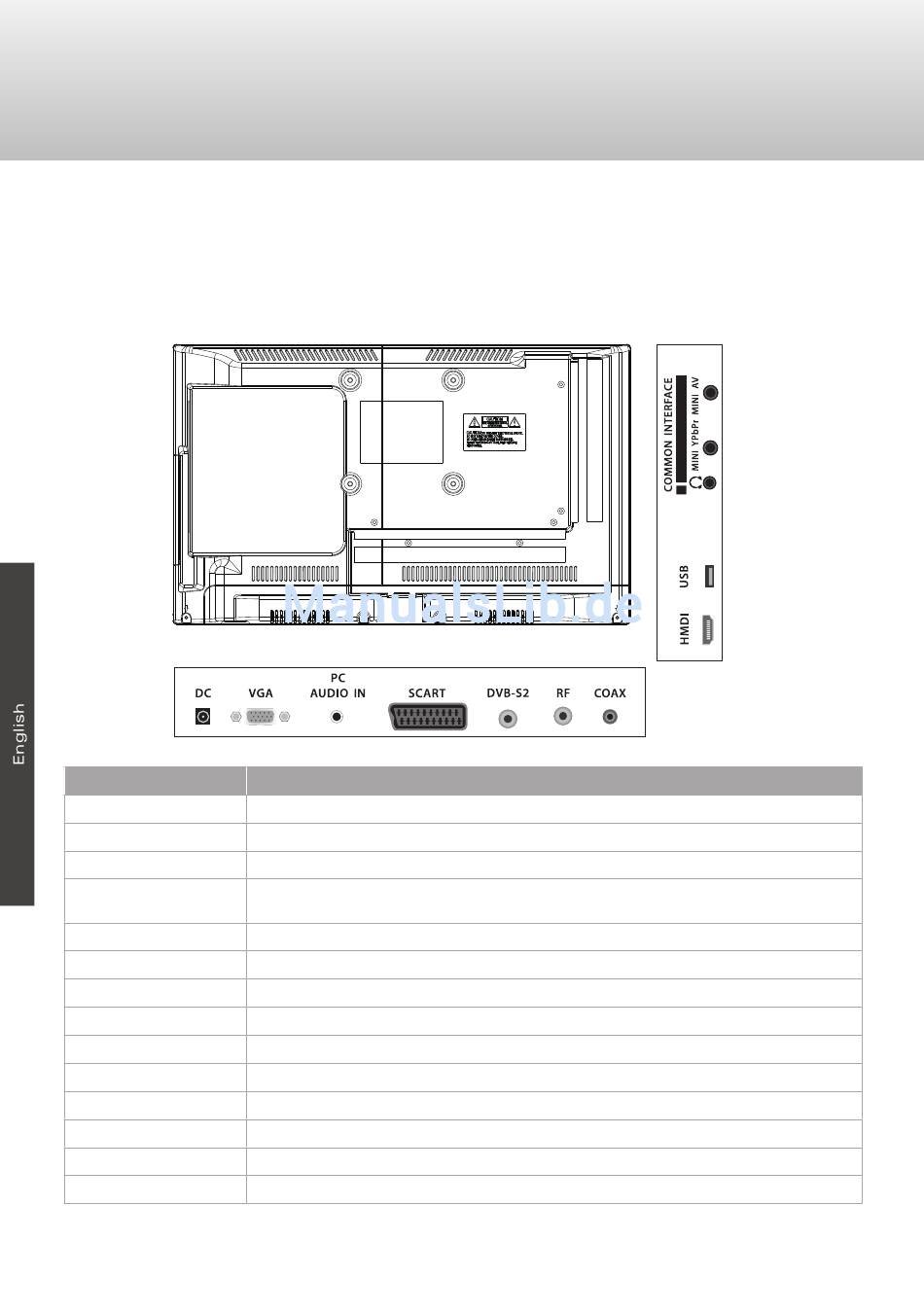

External devices or sources can be connected at the rear of the television set.
Both passive and active antennas (with integrated amplifier and their own power
source) can be connected to the antenna input.
on/off switch
Designation
On/off switch
DC
VGA
PC
AUDIO IN
SCART
DVB-S2
RF
COAX
HDMI
USB
Headphones
Mini YPbPR
Mini AV
Common Interface
52
Explanation
On/off switch reduces power consumption to 0
Power cord connection/power supply
Video connection for PC
Audio connection for PC
AV input for external source
Satellite antenna connection
Connection for DVB-T/DVB-T2 HD or cable television
Digital audio output (co-axial)
Digital AV input for external source
USB connection
Connection for headphones/external speakers (3.5 mm jack)
Component video input (adapter included)
AV input (adapter included)
CI-slot for encrypted programmes (NOTE: insert the right way round)
