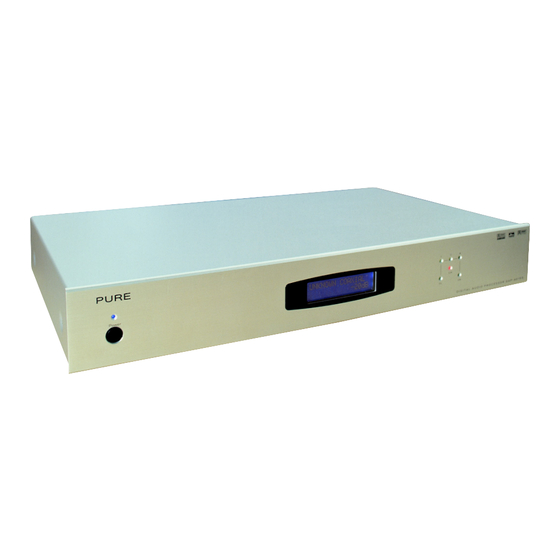

Inhaltszusammenfassung für VideoLogic PURE DAP-601ES
Seite 1
Owner’s manual..Besitzerhandbuch ..Manuel d'utilisation ...
Seite 2
Ce manuel a été écrit par Bruce Murray et illustré par Nick Noble. C’est product of VideoLogic Systems, Imagination Technologies Ltd., Home Park Noble. Dies ist ein Produkt von VideoLogic Systems, Imagination Technologies un produit de VideoLogic Systems, Imagination Technologies Limited, Estate, Kings Langley, Hertfordshire WD4 8LZ, UK.
Contents Introduction ..................2 Unpacking .................... 3 Overview diagrams ................3 Front Panel ............................. 3 Rear Panel ............................4 Remote Control ..........................4 Connecting up..................5 Connecting to your source units ..................... 5 Connecting to your amplifier ......................5 Connecting to the power supply ...................... 5 Using your DAP-601ES ................
Introduction Thank you for choosing the PURE DAP-601ES Digital Audio Processor. The DAP-601ES advanced digital audio processor features full support for PCM Stereo, DTS (Digital Theatre Systems), Dolby Digital 5.1 formats and Dolby Pro Logic II, while providing a full range of EQ and DSP effects. All settings are easily accessible via the remote control and can be stored as presets, enabling you to choose different listening modes for movies, music or TV at the touch of a button.
Bitte senden Sie mir mehr Informationen über: VideoLogic-Produkte PURE-Produkte Veuillez m'envoyer davantage d'informations sur : Les produits VideoLogic les produits PURE Occasionally we make our mailing lists available to carefully selected partners. If you would prefer NOT Gelegentlich stellen wir unser Adressenverzeichnis sorgfältig ausgewählten Partnern zur Verfügung. Falls Sie De temps à...
Rear Panel PURE DAP-601ES by VideoLogic S/PDIF OUTPUT INPUT Made in the UK 1. The six main outputs — Front Left (L), Front Right (R), Surround Left (SL), Surround Right (SR), Centre (C) and Sub (SW) feed audio signals to the matching inputs on your MCP-601ES multi-channel power amplifier.
Connecting up This section provides information on connecting your DAP-601ES to your source units, your amplifier and your power supply. Before connecting devices to your DAP-601ES we recommend switching both devices off. Connecting to your source units The following line level input connectors on the rear of your DAP-601ES enable you to connect up to five source units: AUX, VCR and TV Gold plated coaxial analogue stereo inputs, connect to a CD player, radio tuner, VCR or other stereo source using dual phono to dual phono cables.
Using your DAP-601ES This section provides information on the operation of your DAP-601ES. The DAP-601ES is simple to operate with all functions available from the remote control. Insert the batteries in the remote control and aim at the remote sensor on the front panel. Remove the protective film over the display panel before using the unit.
Delay Delay Adjusting the sound Your DAP-601ES enables you to fine tune different aspects of the sound to match your listening environment, the type of source you are using and your own personal listening preferences. Setting speaker delay The Delay function enables you to set a delay for rear and centre speakers to enable you to finely tune your setup to take into account your speaker positioning and the acoustics of your room.
Bass Manager Adjusting bass distribution Volume The six LEDs on the front panel of your DAP-601ES represent the six discrete audio channels (Left, Right, Centre, Surround Left, Surround Right and Sub). If a particular channel is active, the LED will light up in green. The LED will be red if that particular channel carries low frequencies below 60, 90 or 120 Hz.
Move closer to the unit and try again, if it works, this could be sign of weak batteries or that you were too far away from the unit My remote is lost or broken If your remote does not function and you have confirmed that it is not due to any of the reasons given above, contact your retailer or VideoLogic Technical Support to obtain a replacement.
Technical Specifications Decoder Motorola DSP56366 digital signal processor. Surround modes 5.1 channel Dolby Digital and DTS; Dolby Pro Logic/Pro Logic II. Front panel Power on/off button and LED, separate standby LED. 6 speaker configuration LEDs, for visual display of bass management settings.
Seite 13
Inhalt Einführung ..................12 Auspacken ..................13 Überblicksabbildungen ............... 13 Frontplatte ............................13 Rückwand ............................14 Fernbedienung ..........................14 Anschließen ..................15 Anschluss an Ihre Quellengeräte ....................15 Anschluss an Ihren Verstärker ...................... 15 Anschluss an die Netzversorgung ....................15 Benutzung Ihres DAP-601ES ............... 16 Ein- und Ausschalten ........................16 Testen Ihres Systems ........................16 Einen Eingang wählen ........................
Einführung Danke, dass Sie sich für den Kauf des digitalen Audioprozessors PURE DAP-601ES entschieden haben. Der fortschrittliche digitale Audioprozessor DAP-601ES bietet volle Unterstützung für PCM-Stereo, DTS (Digital Theatre Systems), Dolby Digital 5.1 Formate und das neueste Dolby Pro Logic II ebenso wie ein umfassendes Spektrum von EQ- und DSP-Effekten. Alle Einstellungen können mühelos über die Fernbedienung vorgenommen und als Vorgaben gespeichert werden, so dass Sie per Tastendruck verschiedene Hörmodi für...
Bitte senden Sie mir mehr Informationen über: VideoLogic-Produkte PURE-Produkte Veuillez m'envoyer davantage d'informations sur : Les produits VideoLogic les produits PURE Occasionally we make our mailing lists available to carefully selected partners. If you would prefer NOT Gelegentlich stellen wir unser Adressenverzeichnis sorgfältig ausgewählten Partnern zur Verfügung. Falls Sie De temps à...
Rückwand PURE DAP-601ES by VideoLogic S/PDIF OUTPUT INPUT Made in the UK 1. Die sechs Hauptausgänge - Front Links (L), Front Rechts (R), Surround Links (SL), Surround Rechts (SR), Centre (C) und Sub (SW) - speisen das Audiosignal an die entsprechenden Eingänge Ihres Multi-Kanal-Power-Verstärkers MCP-601ES.
Anschließen In diesem Abschnitt wird beschrieben, wie Sie Ihren DAP-601ES an Ihren Quellengeräten, Ihrem Verstärker und Ihrer Stromversorgung anschließen. Bevor Sie ein Gerät an den DAP-601ES anschließen, empfehlen wir, beide Geräte auszuschalten. Anschluss an Ihre Quellengeräte Die folgenden Line Level-Anschlüsse an der Rückwand Ihres DAP-601ES ermöglichen die Verbindung mit bis zu fünf Quellengeräten: AUX, VCR und TV Vergoldete Analog-Stereoeingänge - Verbindung mit einem CD-Player, Radiotuner, VCR oder einer anderen Stereoquelle, die Dual-Phono-zu-Phono-Kabel verwendet.
Benutzung Ihres DAP-601ES Dieser Abschnitt enthält Informationen zum Betrieb des DAP-601ES. Der DAP-601ES ist einfach zu bedienen, da alle Funktionen über die Fernbedienung zugänglich sind. Legen Sie die Batterien in die Fernbedienung ein, und richten Sie die Fernbedienung auf den Fernsensor an der Frontplatte.
Den Sound einstellen Delay Delay Bei Ihrem DAP-601ES können Sie verschiedene Aspekte des Sounds fein einstellen, damit sie Ihrer Hörumgebung, dem von Ihnen benutzten Quellentyp und Ihren persönlichen Vorlieben entsprechen. Einstellung der Lautsprecherverzögerung Die Funktion Delay ermöglicht es Ihnen, eine Verzögerung für die Rear- und Centre-Lautsprecher einzustellen, damit Sie Ihren Setup fein einstellen und dabei die Lautsprecherposition und die Raumakustik berücksichtigen können.
Bass Manager Einstellung des Bass-Management Volume Die sechs LEDs an der Frontplatte des DAP-601ES repräsentieren die sechs getrennten Audiokanäle (Links, Rechts, Centre, Surround Links, Surround Rechts und Sub). Wenn ein bestimmter Kanal aktiv ist, leuchtet die entsprechende LED grün. Die LED ist rot, wenn dieser bestimmte Kanal niedrigere Frequenzen unter 60, 90 oder 120 Hz aufweist.
Falls Sie immer noch Schwierigkeiten mit dem Gerät haben, setzen Sie sich mit Ihrem Händler in Verbindung, besuchen Sie unsere Website unter www.videologic.de/pure, oder nehmen Sie mit uns Verbindung auf. Benutzen Sie dazu bitte die Angaben über die neuesten Support- Informationen auf der Rückseite dieses Handbuchs.
Technische Daten Decoder Motorola DSP56366 digitaler Audioprozessor. Surround-Modi 5.1-Kanal Dolby Digital und DTS; Dolby Pro Logic/Dolby Pro Logic II`. Frontplatte Taste Power on/off und LED, separate Standby-LED. 6 LEDs für Lautsprecherkonfiguration, für die optische Anzeige der Bass-Managementeinstellungen. LEDs leuchten rot, wenn der Kanal Bass ausgibt, oder grün, wenn Bass-Management angewendet wird.
Seite 23
Sommaire Introduction ..................22 Déballage ................... 23 Schémas synoptiques ................. 23 Panneau avant ..........................23 Panneau arrière ..........................24 Télécommande ..........................24 Branchement ..................25 Branchement sur vos sources audio ....................25 Branchement sur votre amplificateur ................... 25 Branchement sur le secteur ......................25 Utilisation du DAP-601ES ..............
Introduction Félicitations ! Vous venez d'acquérir une unité centrale audio numérique PURE DAP-601ES. L'unité centrale audio numérique étendue DAP-601ES prend totalement en charge les formats PCM Stereo, DTS (Digital Theatre Systems), Dolby Digital 5.1 et Dolby Pro Logic II tout en offrant une gamme complète d'effets d'égalisation et DSP . Tous les paramètres sont facilement accessibles avec la télécommande.
Bitte senden Sie mir mehr Informationen über: VideoLogic-Produkte PURE-Produkte Veuillez m'envoyer davantage d'informations sur : Les produits VideoLogic les produits PURE Occasionally we make our mailing lists available to carefully selected partners. If you would prefer NOT Gelegentlich stellen wir unser Adressenverzeichnis sorgfältig ausgewählten Partnern zur Verfügung. Falls Sie De temps à...
Panneau arrière PURE DAP-601ES by VideoLogic S/PDIF OUTPUT INPUT Made in the UK 1. Les six sorties principales - avant gauche (L), avant droit (R), arrière gauche (SL), arrière droit (SR), central (C) et haut-parleur d'extrême grave (SW) transmettent les signaux audio aux entrées correspondantes de votre amplificateur de puissance multi-canaux MCP-601ES.
Branchement Cette section vous explique comment brancher votre DAP-601ES sur vos sources audio, votre amplificateur et le secteur. Avant de brancher des périphériques sur votre DAP-601ES, nous vous recommandons de mettre ces appareils hors tension. Branchement sur vos sources audio Les connecteurs d'entrée de niveau de ligne suivants sont situés sur le panneau arrière de votre DAP-601ES et vous permettent de brancher jusqu'à...
Utilisation du DAP-601ES Cette section vous explique comment utiliser votre DAP-601ES. Le DAP-601ES est facile d'emploi, toutes les fonctions étant disponibles sur la télécommande. Insérez les piles dans la télécommande et pointez-la vers le capteur situé sur le panneau avant. Retirez le film protecteur recouvrant le panneau d'affichage avant d'utiliser l'unité.
Réglage du son Delay Delay Le DAP-601ES vous permet de régler avec précision diverses caractéristiques du son pour l'adapter à votre environnement d'écoute, au type de source audio que vous utilisez et à vos propres préférences d'écoute. Réglage de la temporisation des haut-parleurs La fonction Delay vous permet de définir une valeur de temporisation des haut-parleurs arrière et central afin que vous puissiez ajuster vos réglages avec précision en tenant compte de l'emplacement de vos haut-parleurs et des propriétés acoustiques de la pièce.
Bass Manager Réglage de la répartition des graves Volume Les six témoins lumineux situés sur le panneau avant de votre DAP-601ES représentent les six canaux audio distincts (gauche (L), droit (R), central (C), arrière gauche (SL), arrière droit (SR) et haut-parleur d'extrême grave (SW)). Si un canal particulier est actif, le témoin s'illumine en vert.
Garantie VideoLogic Systems Ltd. ("VideoLogic") garantie l'utilisateur final contre tout défaut de matière et tout vice de fabrication dans le cadre d'une utilisation normale pendant une période de deux (2) ans à compter de la date d'achat. Veuillez retourner la fiche de garantie ci-jointe à l'agence Videologic la plus proche de chez vous afin d'enregistrer le produit.
Spécifications techniques Décodeur Processeur de signal numérique Motorola DSP56366. Modes Surround Canal DTS et Dolby Digital 5.1 ; Dolby Pro Logic/Dolby Pro Logic II. Panneau avant Bouton et témoin lumineux d'alimentation marche/arrêt, témoin lumineux du mode veille distinct. 6 témoins lumineux de configuration des haut-parleurs permettant un visuel des paramètres de gestion des graves.
Seite 35
Manufactured under license from Dolby Laboratories. Manufactured under license from Digital Theater “Dolby”, “Pro Logic”, and the double-D symbol are Systems, Inc. US Pat. No. 5,451,942 and other trademarks of Dolby Laboratories. world-wide patents issued and pending. “DTS” “DTS 1992-1997 Dolby Laboratories. All rights reserved Digital Surround”, are trademarks of Digital Theater Systems, Inc.
Seite 36
Please return your registration card to your nearest VideoLogic centre. Schicken Sie Ihre Registrierkarte zum nächsten VideoLogic Center. Veuillez envoyer la carte d’enregistrement au centre VideoLogic le plus proche. Deutschsprachige Länder VideoLogic GmbH Max-Planck-Str. 25, D - 63303 Dreieich, Germany +49 (0)6103 311022 Fax sales@videologic.de...
