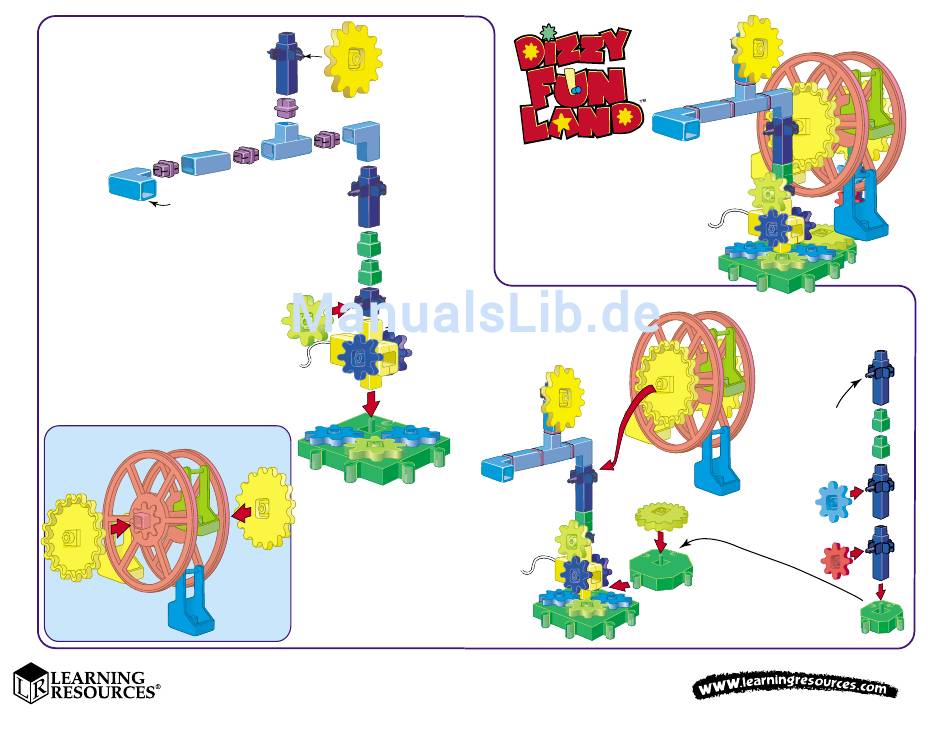

STEP 1
Build this support on
the base. The motor
should turn this gear
and the three gears
on the base.
T he merry-go-round
will connect here.
STEP 2
Add two large gears
to the Ferris wheel .
LER 9199 — Dizzy Fun Land
Add a medium
gear to the side pin.
STEP 3
motor
Attach this side of the Ferris
wheel to the support you
built in Step 1.
Put three small gears
on a square base.
FERRIS WHEEL FERRIS WHEEL FERRIS WHEEL
STEP 4
Add a medium gear
and medium base.
© Learning Resources, Inc., Vernon Hills, IL 60061 (USA)
STEP 5
Build this support
for the other side
of the Ferris wheel.
STEP 6
Attach the center of the
other side of the Ferris
wheel to this pin.
STEP 7
Attach this small base
to the medium base.
