Connector.
•
Connettore.
•
Connecteur.
•
Schnittstellen.
•
Conectador.

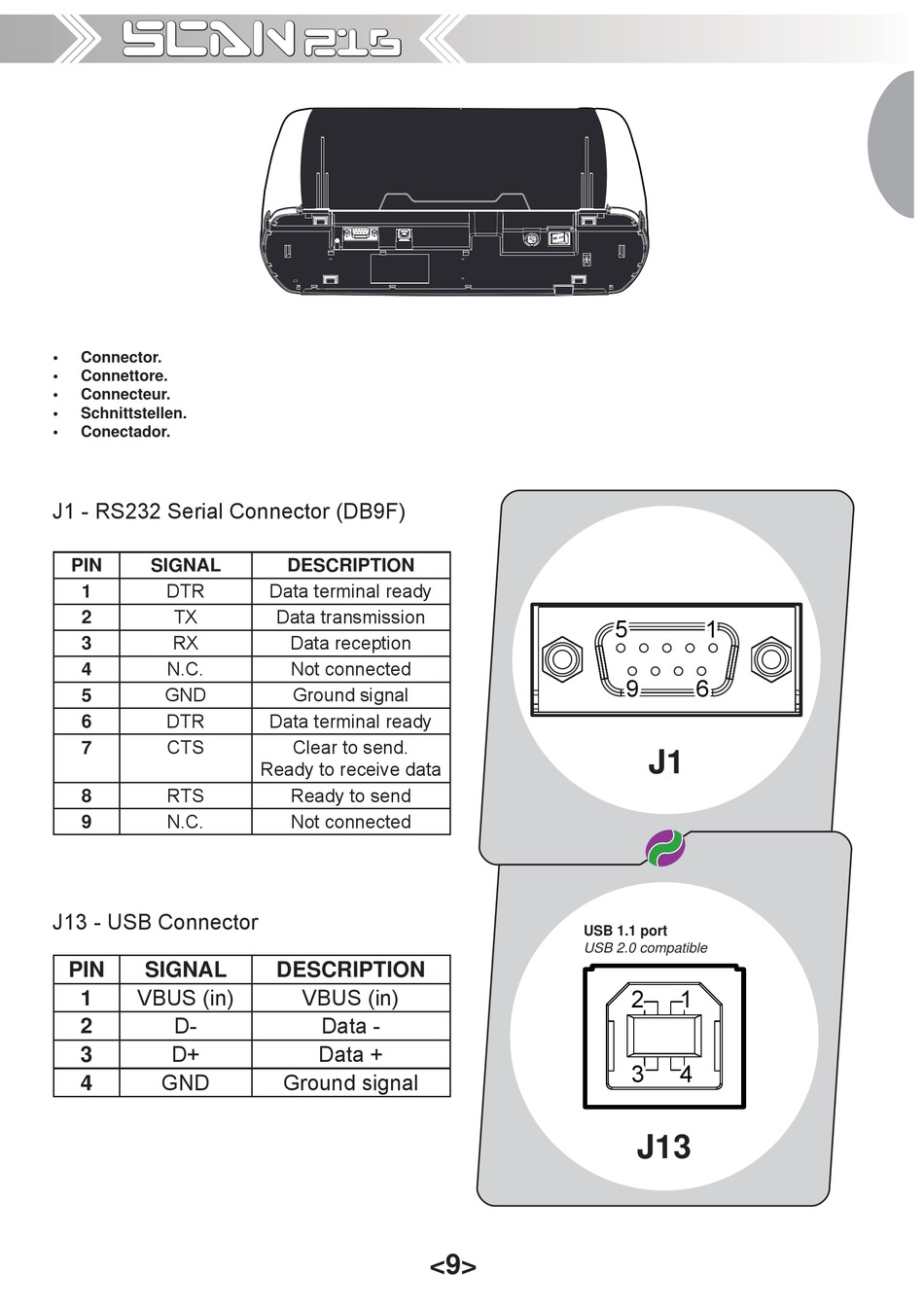

J1 - RS232 Serial Connector (DB9F)
PIN
SIGNAL
DTR
1
TX
2
RX
3
N.C.
4
GND
5
DTR
6
CTS
7
RTS
8
N.C.
9
J13 - USB Connector
PIN
SIGNAL
VBUS (in)
1
D-
2
D+
3
GND
4
216
216
DESCRIPTION
Data terminal ready
Data transmission
Data reception
Not connected
Ground signal
Data terminal ready
Clear to send.
Ready to receive data
Ready to send
Not connected
DESCRIPTION
VBUS (in)
Data -
Data +
Ground signal
<9>
5 5
1
1
9 9
6 6
J1
USB 1.1 port
USB 2.0 compatible
2 2
1 1
3 3
4 4
J13
