Description

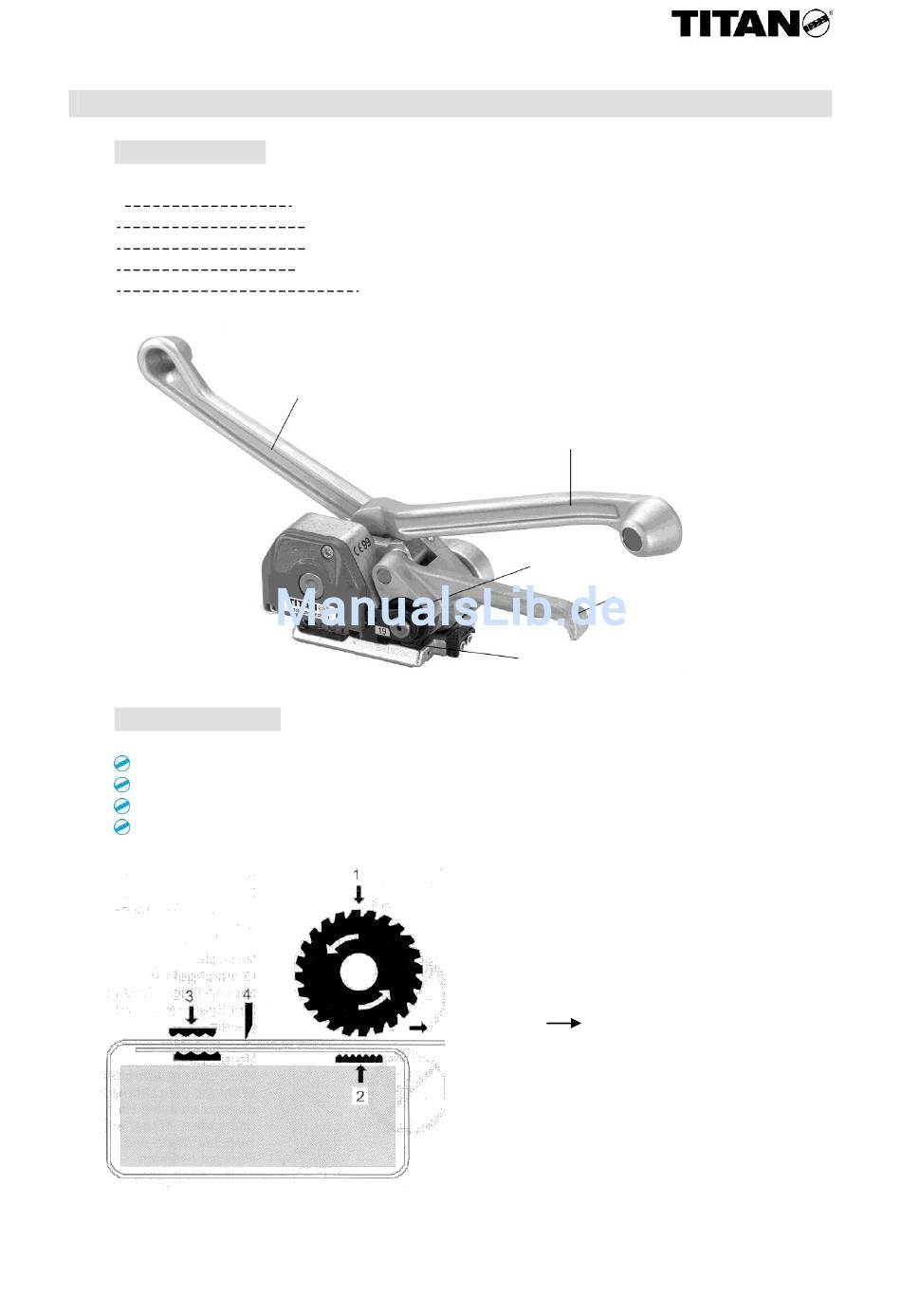

5.1. Design

96 Cutting lever
520 Rocker compl.
29 Tension wheel
125 Gripper plate
522 Tension lever compl.

5.2. Function

Strap clamped by pressure on gripper plate 1/2
Tensioning by turning feed wheel 1
Sealing by punching the strap 3
Cutting the strap with cutter 4
HKE–heavy duty
522
H 223HD EU 25/08
96
29
520
125
Attention!
When changing the feed wheel
strictly observe the moving direction!
Arrow
