XPEED LX CLASS C

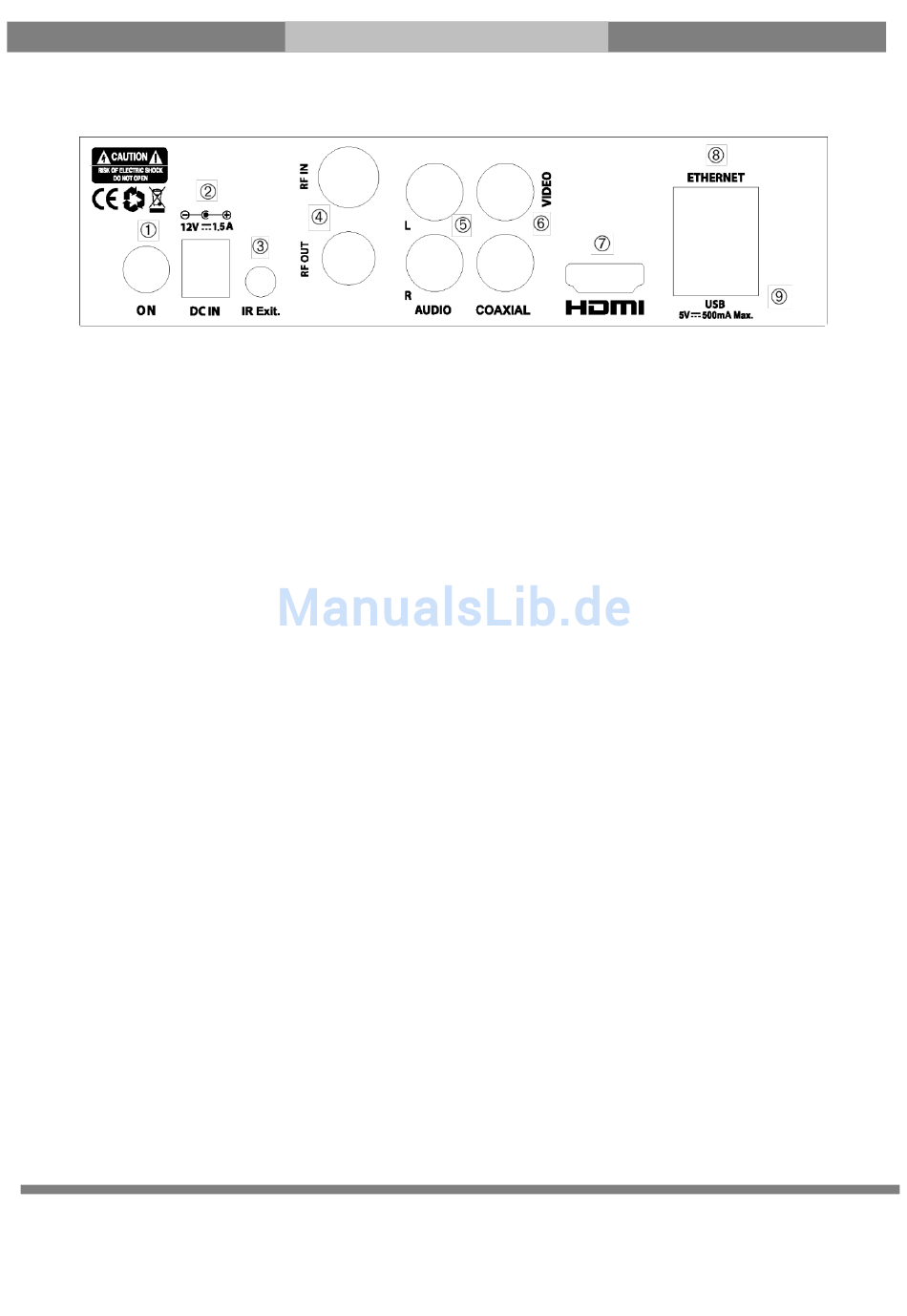

Rear Panel

1. On/Off Switch: Power on/off.
2. DC IN : Connect DC Power Adapter
3. IR Port: Connect external IR Receiver
4. TUNER : Fixed hybrid DVB-C/T/T2 Tuner – Connect Cable to RF IN
5. Composite (CVBS, L, R) : Video/Audio connection via RCA
6. S/PDIF : Coaxial Output
7. HDMI out : HDMI output to connect to your Television
8. Ethernet Port : Connect LAN cable
9. USB Port: Connect USB Storage device or external hard drive
4
