Siemens CCMS2025 Installation Instruction / Installationsanleitung

1/3“ ip-boxkamera, 2 mp, tag/nacht

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

CCMS2025

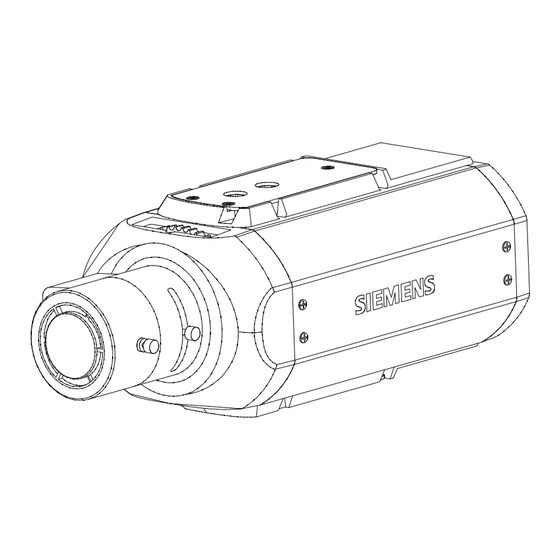

1/3'' IP-Box Camera, 2 MP, Day/Night
1/3" IP-Boxkamera, 2 MP, Tag/Nacht
Installation Instruction / Installationsanleitung
14
English
1
Back-focus locking screw
2
Back-focus adjustment ring
3
BNC connector
4
SD card slot
5
Reset button
6
Default button
7
SD card protection
8
Power indicator
9
Digital I/O terminal
10
Lens mount
11
Ethernet connector
12
DC 12 V/AC 24 V power terminal
13
1/4-inch tripod thread
14
Microphone
About this document
This guide outlines the most important information regarding the
installation of the camera. For instructions regarding the
configuration and further mounting options please refer to the
configuration manual on CD.
1
2
13
Deutsch
1
Auflagemaß-Fixierschraube
2
Auflagemaß-Justierring
3
BNC-Anschluss
4
SD-Kartensteckplatz
5
Reset-Taste
6
Default-Taste
7
SD-Kartensicherung
8
Betriebsanzeige
9
Digitaler E/A-Anschluss
10
Objektiv-Anschluss
11
Ethernet-Anschluss
12
DC 12 V/AC 24 V-Stromanschluss
13
1/4-Zoll-Stativgewinde
14
Mikrofon
Zu diesem Dokument
In dieser Installationsanleitung finden Sie die Anweisungen zur
Installation der Kamera. Anweisungen zur Konfiguration und
weitere Montagevarianten finden Sie im Konfigurationshandbuch
auf der CD.
3 4
5
6
7
8
Siemens AG
EN
DE
9
10
11
12
9
12

Werbung

loading

Inhaltszusammenfassung für Siemens CCMS2025

  • Seite 1 CCMS2025 1/3'' IP-Box Camera, 2 MP, Day/Night 1/3“ IP-Boxkamera, 2 MP, Tag/Nacht Installation Instruction / Installationsanleitung English Deutsch Back-focus locking screw Auflagemaß-Fixierschraube Back-focus adjustment ring Auflagemaß-Justierring BNC connector BNC-Anschluss SD card slot SD-Kartensteckplatz Reset button Reset-Taste Default button Default-Taste SD card protection...
  • Seite 2 CCMS2025, IP-Box Camera, 2 MP Step 2: Connection Package contents Start-up procedure Lens • Install the remote software onto your PC, following the IP camera 1. Only DC controlled lenses can be used for this camera. description in the "Readme" file on the CD.
  • Seite 3 CCMS2025, IP-Box-Kamera, 2 MP 8. Stellen Sie wieder die kleinste Brennweite (Weitwinkel) Schritt 2: Anschließen Lieferumfang ein und optimieren Sie das Auflagemaß durch Objektiv Nachjustieren des Einstellrings (2). • IP-Kamera 9. Ziehen Sie die Feststellschraube (1) wieder an. 1. Für diese Kamera können nur DC-gesteuerte Objektive •...
  • Seite 4 Issued by Siemens AG Siemensallee 84 © 2011 Copyright by Siemens AG D-76187 Karlsruhe Data and design subject to change without notice. www.buildingtechnologies.siemens.com Supply subject to availability. Document no. A6V10334000 Edition 24.08.2011...
