EN
Use
• Release hand lever 1 by turning locking knob 2
in position ON.
• Hold handle 1 fully open and press down the
retaining pawl 3. It is now possible to turn the
pivoted blade 4 as required.
• Insert the wire rope and turn the pivoted blade
4 until the edge of the blade rests on the cable.
Do not cut angularly!
• Squeeze the handles to manually operate the
pivoted blade 4 during the cutting process.
• Releasing the pivoted blade 4 is possible du-
ring cutting proceeding as follows: Open hand-
les 1 until the block, keep the retaining pawl
3 pressed. Turn back the pivoted blade 4. In
some cases release the retaining pawl 3 by a
blow (with an plastic hammer) on the pivoted
blade 4 (see point x).
• Lock lever 1 by turning the locking knob 2 in
position OFF during squeezing both handles.
Maintenance
• Oil movable parts.
• Brush ratchet teeth.
The tool is only for use in applications pur-
poses described in the operating instruc-
tions.
Using this tool for tasks other than those descri-
bed may lead to accidents or the destruction of
the tool.
The tool must only be repaired by an electro-
mechanical specialist or by the manufacturer.
For works of external staff we assume no liabili-
ty. Use only original BAUDAT spare parts! If not,
claims of the warranty declaration expires.
15-257_SCS18.indd 5

Instruction manual

Wire rope cutter SCS18
For flexible wire ropes up to max.
Ø 18 mm. Stainless and high com-
pressed wire ropes up to max. Ø
15 mm

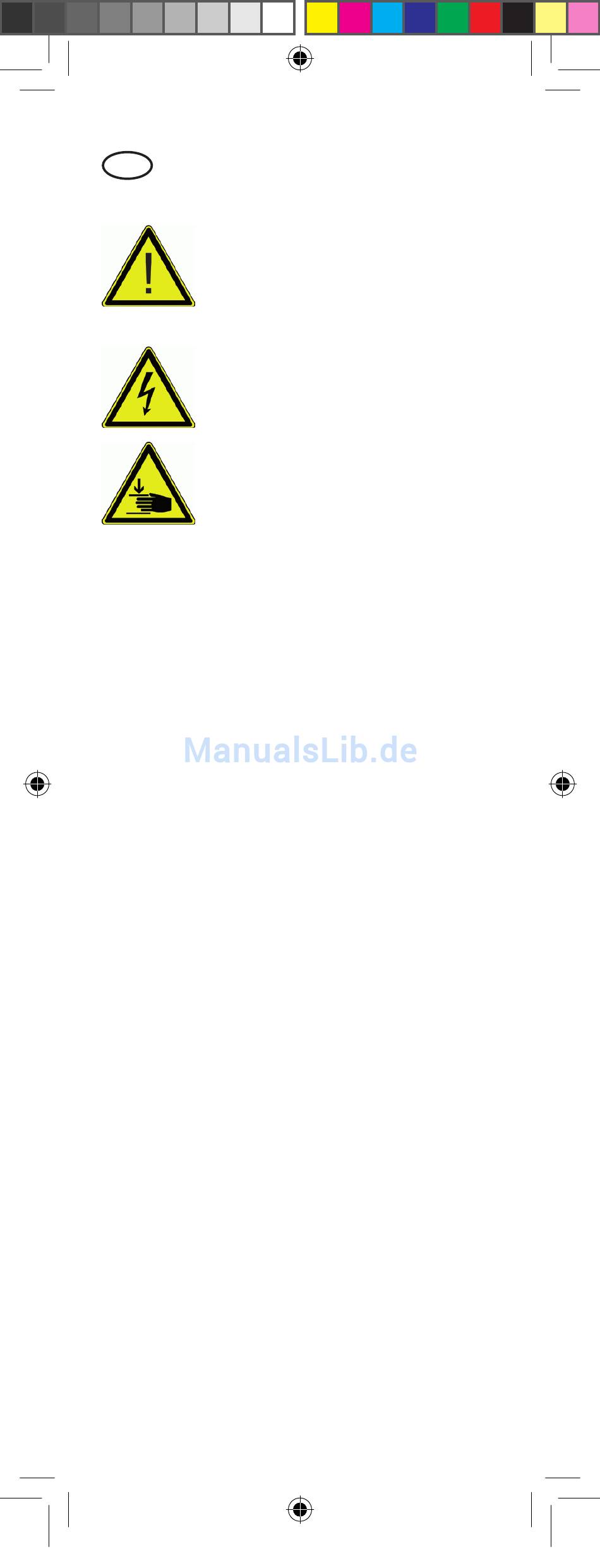

Do not live working!
Switch off current!
No extremities near the blades!
5
