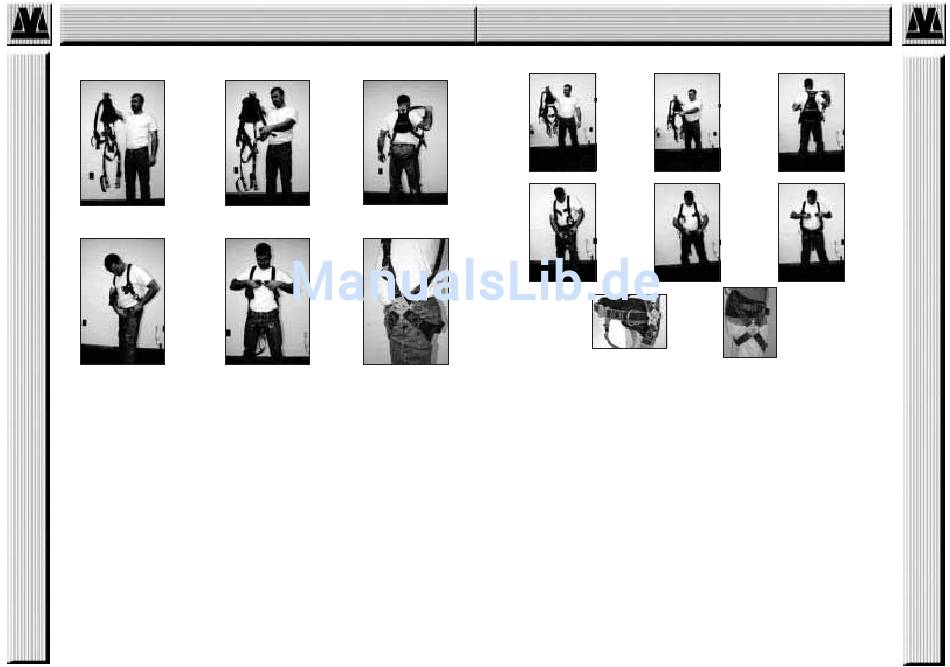

DONNING THE REVOLUTION WITHOUT BELT
B. Donning the Revolution without belt
B.1
B.4
B.1 Hold harness by back D-ring. Shake harness to allow all straps to fall in place.
B.2 If leg or chest straps are buckled, release straps and unbuckle at this time.
B.3 Slip straps over shoulder so D-ring is located in the middle of the back between
shoulder blades.
B.4 Pull buckle portion of leg strap between legs and connect to opposite end of
leg strap.
Repeat with second leg strap.
B.5 Connect chest strap. The shoulder strap retainer (chest strap) must be positioned
in the mid-chest area 15 to 20 cm below the trachea but not below the sternum.Fasten
securely to keep shoulder straps taut.
B.6 After all straps have been buckled, thighten webbing so that harness fits snug,
but allows full range of movement. To maximize comfort, be sure to adjust the
harness so that the PivotLink centers are at waist level.
B.7 Front anchorage loops should be level with the sternum. When using this
4
anchorage point, the intermediate attachment should be connected to both loops.
B.8 To remove harness, release quick connect or tongue buckles.
B.2 B.3
B.5 B.6
DONNING THE REVOLUTION WITH BELT
C. Donning the Revolution with belt
C.1 C.2
C.4 C.5
C.7
C. 1 Hold harness by back D-ring. Shake harness to allow all straps to fall in
place.
C.2 If leg or chest straps are buckled, release straps and unbuckle at this time.
C.3 Slip straps over shoulder so D-ring is located in the middle of the back between
shoulder blades.
C.4 Pull buckle portion of leg strap between legs and connect to opposite end of
leg strap. Repeat with second leg strap.
C.5 Attach integral work-positioning belt. (Connecting belt first ensures PivotLink
is in the proper location.)
C.6 Connect chest strap. The shoulder strap retainer (chest strap) must be
positioned in the mid-chest area 15 to 20 cm below the trachea but not
below the sternum. Fasten securely to keep shoulder straps taut.
After all straps have been buckled, tighten webbing so that harness fits snug, but
allows full range of movement. To maximize comfort, be sure to adjust the harness
so that the PivotLink centers are in the right position:
C.7 Construction Harness With belt:The PivotLink centres are positioned at
waist level
C.8 Utilities & Telecom Harness : The PivotLink centres are on the outside of the
hips
C.9 To remove harness, reverse procedure.
C.3
C.6
C.8
5
