OPERATION MANUAL
STAR HDMI 2.0 SWITCH 3>1 18 GBPS
DESCRIPTION
Thank you for choosing this product. The Star HDMI switch supports the new, high-resolution 4k50/60 Hz UHD HDR and HDCP2.2 formats, and is downward-compatible.
It can be connected directly to the TV/projector, or be connected using the adapter supplied along with an HDMI extension cable. This makes it a convenient solution when source devices are set up a long
way from the TV or projector, because only one long HDMI cable needs to be installed, instead of three. The inputs are automatically connected to the last source activated, and can, alternatively, also be
switched over on the device manually. No external power supply unit is required (HDMI powered).
FEATURES:
•
Supports UHD 4k@50/60 Hz
•
Supports HDR | HDCP2.2 | 3D | 36 bit Deep Color
•
Automatic switchover
•
Downward-compatible
•
Supports uncompressed audio formats such as LPCM
•
Supports compressed audio formats such as DTS Digital, Dolby Digital
•
Supports HD audio formats such as DTS-HD and Dolby True HD
•
Blu-ray / PS4 compatible
•
Output with fi xed HDMI cable (approx. 50 cm)
•
Bandwidth = 3 x 600 MHz / 6 Gbps (=18 Gbps)
•
HDMI powered
•
Dimensions: 82 x 72 x 17 mm
•
Weight: 100 g
SAFETY INSTRUCTIONS
1. General
Read, observe and adhere to the following safety instructions. Please keep the operating manual. Observe all the warning notices on the components and in the operating manual.
2. Proper use
The components are solely designed for operation indoors. Connect them as specifi ed in the operating instructions. Only use accessories which have been recommended by the manufacturer.
3. Humidity
Select an installation location for the components which does not have a high level of relative humidity and is free of moisture. Never use the components near water. Moisture can bypass the electrical
insulation and pose a lethal danger, as it can for all products not specially designed to be water-resistant. The components may not be exposed to dripping or sprayed water.
4. Product protectio
Do not under any circumstances expose the components to high levels of humidity. Extreme temperature fl uctuations, humidity and extended exposure to light can damage the components and alter their
appearance. Make sure that no foreign objects or liquids enter the components.
5. Positioning
Do not position the components near sources of heat, heaters, heating valves, ovens or other heat-producing devices. The components may only be stored and operated in the temperature range stated. The
components heat up during operation.
6. Connection
The components must only be connected to the specifi ed rated voltage! All cables must be positioned in such a way that there is no danger of them being damaged (e.g. being stepped on, placed under
furniture etc.). Never remove cables by pulling the cable; instead, always hold the plug when disconnecting. In stand-by mode, the components are not completely disconnected from the mains supply. To
avoid any unnecessary hazards or energy consumption during longer absences, the components should be disconnected from the mains supply.
7. Maintenance
Maintenance on the product may only be performed by persons qualifi ed to do so. Maintenance is necessary in all cases of damage, i.e. in the case of damaged cables and plugs, as well as after liquid spills
or objects falling on the components, components falling down, foreign bodies entering the components, exposure of components to rain or humidity, or other infl uences impairing the functioning of the
components.
8. Looking after the product
Disconnect the components from the power supply before cleaning them Always clean the components with a soft, dry and lint-free cloth, or with a brush. Do not under any circumstances use scouring
powder, alcohol, benzine, furniture polish or similar substances.
DISPOSAL:
Old or defective devices that are labelled with a crossed-out rubbish bin may not be disposed of in conventional household waste. They must be disposed of at local recycling centres in accordance with
the applicable national legislation. Proper disposal helps to conserve resources and protect the environment. Batteries should NOT be disposed of in household waste. You are legally obligated to return
used batteries for proper disposal. Batteries can be returned anywhere that similar batteries are sold, or be returned to public collection points.
MISC
Indication without guarantee. All product images similar. We reserve the right to make changes.
SIMPLIFIED EU DECLARATION OF CONFORMITY
Hereby, in-akustik GmbH & Co. KG declares that the equipment typ is in compliance with Directive EMV 2014/30/EU and RoHS 2011/65/EU. The full text of the EU declaration of conformity is available
at the following internet address: www.in-akustik.com
in-akustik GmbH & Co. KG
Tel.:
Untematten 12-14
Fax.:
79282 Ballrechten-Dottingen
E-Mail:
GERMANY
Web:
CONNECTION OVERVIEW

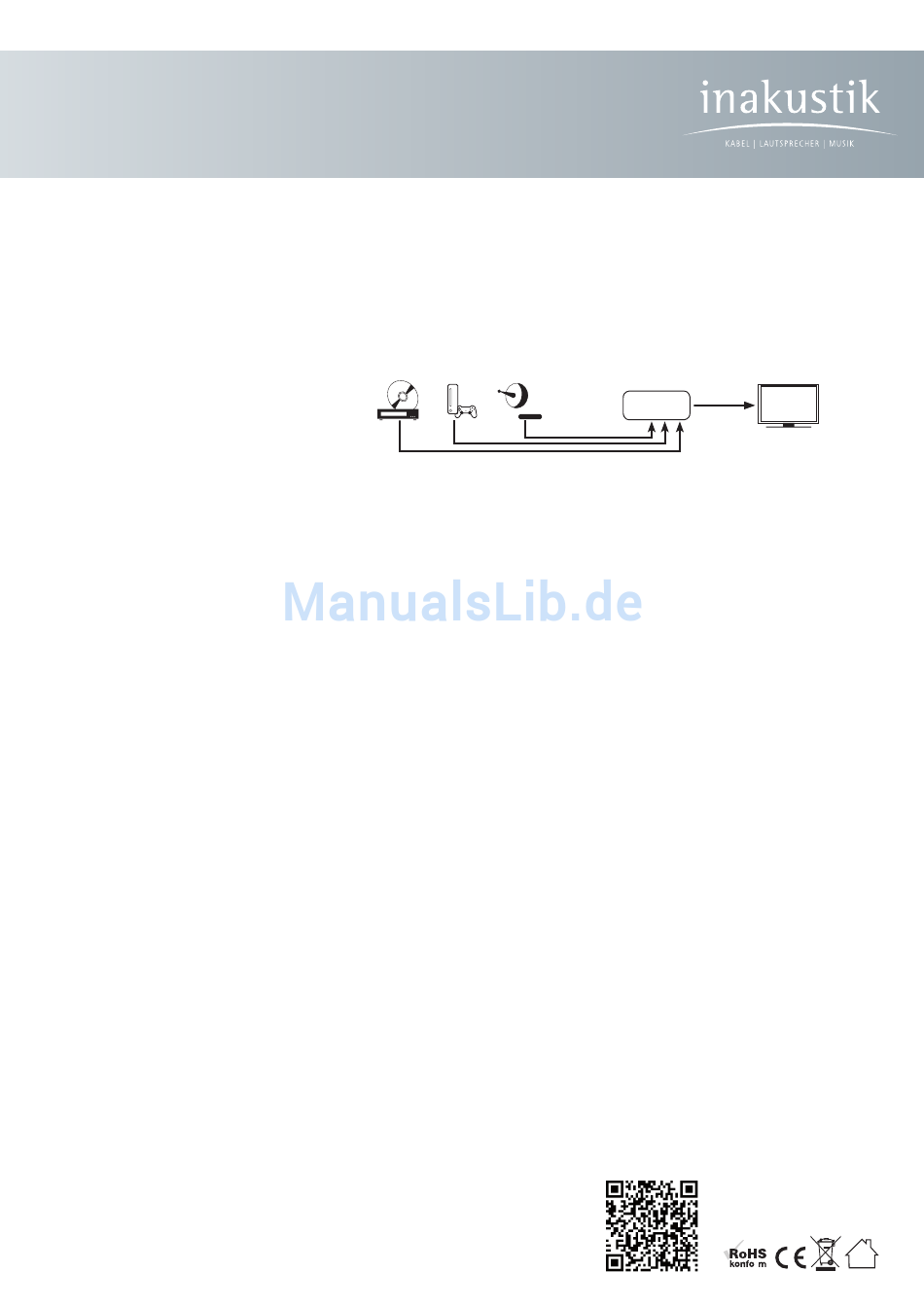

1. Connect the source device to the HDMI switch inputs (cable* not included)
2. Connect the fi xed HDMI cable used by the HDMI switch to the TV
3. If necessary, use the HDMI double coupling to use an HDMI extension cable* between the switch and the TV
*Only use a high-quality HDMI cable! Please note that long, and poor-quality, HDMI cables may result in problems with
high-resolution image formats such as UHD.
OPERATION
The HDMI switch automatically connects to the last source activated. In isolated cases, the sources connected may not
support this feature, and the automatic switchover will not react. Alternatively, the inputs can be switched over manually
using the Select button..
+49 (0) 7634 5610-70
Typ: Star HDMI2.0 Switch 3>1 18Gbps
+49 (0) 7634 5610-80
Item-No.: 0032450314
info@in-akustik.de
EAN Code: 4001985515424
www.in-akustik.de
SWITCH
r
Download the operating instructions
from www.in-akustik.de
Made in China
