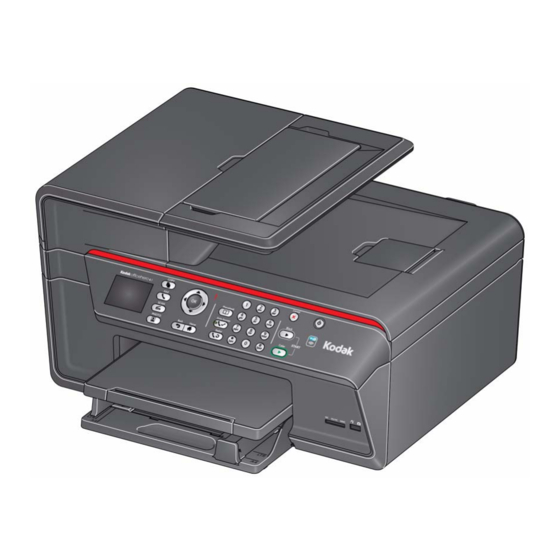

Kodak Office Hero 6.1 Kurzanleitung

all-in-one printer • All-in-One Drucker
imprimante multifonction • Stampante multifunzione
impresora multifunción
Start Here
Kurzanleitung
Commencez ici
Guida introduttiva
Comience aquí
1 Remove all orange tape
and packing material.
Entfernen Sie das
orangefarbene
Klebeband und das
Verpackungsmaterial
vollständig.
Retirez la bande
adhésive orange et
l'emballage.
A
Rimuovere il nastro
arancione e il materiale
di imballaggio.
Retire todas las cintas
anaranjadas y el
material de embalaje.
B
2
Select Your Language
Press OK
English (U.S.)
English (International)
Deutsch
Français
Select Country/Region
Press OK
United States
Canada
Mexico
Brazil
3
A
CLICK!
KLICK!
CLIC!
B
CLIC!
¡CLIC!
4
A
B
C
D
5
A
B
C
D
6
7 Fax set-up (optional) Configurazione del fax (opzionale)
Fax-Einstellung (optional) Configuración del Fax (opcional)
Configuration du télécopieur (en option)
CLICK!
KLICK!
CLIC!
CLIC!
¡CLIC!
Choose connection type Scegliere il tipo di connessione
Wählen Sie den Verbindungstyp aus Seleccione el tipo de conexión
Sélectionnez le type de connexion
USB
Ethernet
USB
A
OR • ODER • OU • O • O
www.kodak.com/go/aiodownloads
B
To connect, you need:
• A wireless router.
• To determine whether your router supports Wi-Fi Protected Setup (WPS). See your router's
documentation.
Connect to a non-WPS wireless router
NOTE: If you already set up your printer, you need to press Home, then press: ▼ to select Network
Settings > OK > Wi-Fi Setup Wizard > OK.
A
Record your network information:
• Network Name (SSID) ___________________________________________________________
• Security String (case-sensitive) ___________________________________________________
B
Press ▼ to select Wireless, then press OK.
C
Press ▼ to select your network, then press OK.
If you don't see your network in the list:
• Select Rescan for Wireless Networks then
press OK.
• Make sure your wireless router is turned on
and within range.
• Get help at
www.kodak.com/go/inkjetnetworking.
D
Enter your network password, if required.
• Select abc/123 then press OK to change
from uppercase to lower case.
• Select ABC/123 then press OK to change
from lower case to upper case.
• Select !@# then press OK to enter
punctuation or symbols.
E
When the confirmation message appears,
press OK. The Wi-Fi status light is on.
NOTE: If you are unable to connect your
printer, go to
www.kodak.com/go/inkjetnetworking.
F
Go to
Connect to a WPS wireless router
NOTE: If you already set up your printer, you need to press Home, then press: ▼ to select
Network Settings > OK > Wi-Fi Setup Wizard > OK.
A
Press ▼ to select Wireless, then press OK.
B
With WPS Connect selected, press OK.
C
Select one of the following methods of connecting.
IMPORTANT: Before you press OK on the printer, make sure you know where the router's button
is, or where to enter the generated PIN.
Push Button Configuration
NOTE: You will have two minutes to press
or select the WPS button. It may be
a button on the device or a virtual
button in the device's software.
1. With Push Button Configuration
selected, press OK.
2. Press or select the WPS button for your
wireless router.
D
When the confirmation message appears,
press OK. The Wi-Fi status light is on.
NOTE: If you are unable to connect your
printer, go to
www.kodak.com/go/inkjetnetworking.
E
Go to
Follow the online
instructions
Befolgen Sie die
Online-Anweisungen
Suivez les instructions en
ligne
Seguire le istruzioni online
Siga las indicaciones en
línea
EN
Entering a PIN
1. Press ▼ to select Generate WPS PIN,
then press OK.
2. In your wireless router's software,
locate the PIN screen.
3. Enter the PIN you received from the
LCD into the PIN screen.
