X-GLOO Matrix Kurzanleitung

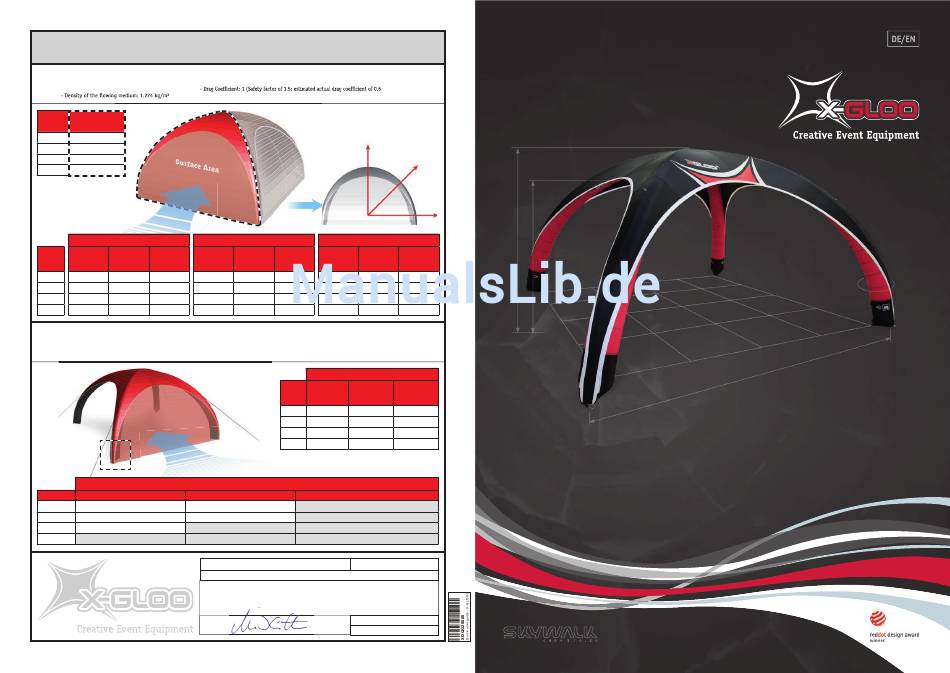

WIND RESISTANCE CERTIFICATE
FORCES
BASIS: - Wind Speed: 3.6 m/s = 1 km/h
- Friction of Ballast Barrel and ground: 1 [material: rubber-to-asphalt]
Matrix Surface Area
Size
with Side Wall
4x4 6.5m²
(70ft²)
5x5 10m²
(107.6ft²)
6x6 14m²
(150.7ft²)
8x8 25m²
(269.1ft²)
Drag Lift
(D) [daN] (L) [daN]
Matrix 30 km/h 40 km/h 60 km/h 30 km/h
Size wind speed wind speed wind speed wind speed
(18.7 mph) (25 mph) (37.3 mph) (18.7 mph)
4x4 27.4 49.1 110.4 13.7
5x5 42.1 75.55 170 21
6x6 59 105.78 238 29.5
8x8 105.4 188.85 424.97 52.7
BALLAST RECOMMENDATIONS
Below are shown the weights necessary to secure one tube on your X-GLOO during high winds. At a minimum, this weight should be used on all tubes facing into the
wind. However, in order to achieve the most security and stability we strongly recommend that you secure all four tubes on your X-GLOO.
X-GLOO Ballast System(s) Per Tube
Matrix Size 30 km/h wind speed 40 km/h wind speed
(18.7 mph)
4x4 1x Tube Ballast 2x Tube Ballasts
5x5 1x Tube Ballast 2x Tube Ballasts
6x6 2x Tube Ballasts 1x Ballast Barrel
8x8 1x Ballast Barrel 2x Ballast Barrels
X-GLOO Creative Event Equipment
Skywalk GmbH & Co. KG, Windeckstr. 4, 83250 Marquartstein, Germany
X-GLOO Event Tent ballast reccomendations based on anticipated wind speed and direction.
User note: These recommendations are valid only in cases where the X-GLOO is properly set up and
anchored. Improper setup of the X-GLOO can also result in damage to the tent an possible injury to
people in the surrounding area.
Approval:
L
T
Total Force
(T) [daN]
40 km/h 60 km/h 30 km/h 40 km/h 60 km/h
wind speed wind speed wind speed wind speed wind speed
(25 mph) (37.3 mph) (18.7 mph) (25 mph) (37.3 mph)
24.55 55.24 30.6 54.9 123.4
37.77 85 47.1 84.5 190.1
52.88 119 66 118.3 266
94.42 212.48 117.8 211.1 475.2
Weight Per Tube
Matrix 30 km/h 40 km/h 60 km/h
Size wind speed wind speed wind speed
(18.7 mph) (25 mph) (37.3 mph)
4x4 16 kg 28 kg 63 kg
(34 lbs) (62 lbs) (139 lbs)
5x5 24 kg 43 kg 97 kg
(53 lbs) (95 lbs) (214 lbs)
6x6 34 kg 60 kg 136 kg
(74 lbs) (133 lbs) (299 lbs)
8x8 60 kg 108 kg 242 kg
(133 lbs) (237 lbs) (534 lbs)
60 km/h wind speed
(25 mph) (37.3 mph)
1x Ballast Barrel
1x Ballast Barrel
2x Ballast Barrels
3x Ballast Barrels + No-rub Mat
Date: 01.11.2014
D
KURZANLEITUNG
QUICK USER GUIDE
WINDECKSTR. 4 | 83250 MARQUARTSTEIN - GERMANY
Tel. +49 (0) 86 41- 69 48 - 60 | www.x-gloo.com | info@x-gloo.com
