GB
Technical Details and references
With one high-efficiency LED
u
Vehicular optical test requirement, German
u
standard
Equipped with rechargeable lithuim battery
u
With one pc recharger
u
Installation:
Install the bracket on seat post properly, the rubber pad angle provide
u
horizontal position.
Install the light at left 45° and twist clockwise until it "clicks" into proper
u
position.
Untwist the light by turning 45° anti-clockwise and pull out the light.
u
Aaccording to StVZO §67 the lighting equipment must be fitted correctly
u
and firmly and constantly be ready for operation. Lighting equipment must
not be covered.
The lowest point of the illuminating surface of the tail lamp shall be not
u
less than 250 mm from the ground and the highest point of the illumina-
ting surface of the red reflex reflector may not be located higher than 600
mm from the ground.
The upper housing surface has to be parallel with the ground and perpen-
u
dicular to the vehicle longitudinal axis.
When low battery indicator turn ON, the batteries must be changed as
u
soon as possible.
Recharge battery
Open the USB cover at the bottom of light. Plug in Micro USB cable with connected adaptor or com-
u
puter, charging indicator from Red (Charging) change to Green (full). Around 2.5 hours charge time.
Plug off the USB cable and close the USB cover.
u
Safety Precaution:
DO NOT LOOK directly into the light.
u
Keep away from heat.
u
Battery fully charge when green indicator turn ON.
u
DO NOT Charge the battery more than 15 hours consecutively.
u
DO NOT use this product while recharging.
u
070-50214_PRL-360.indd 2

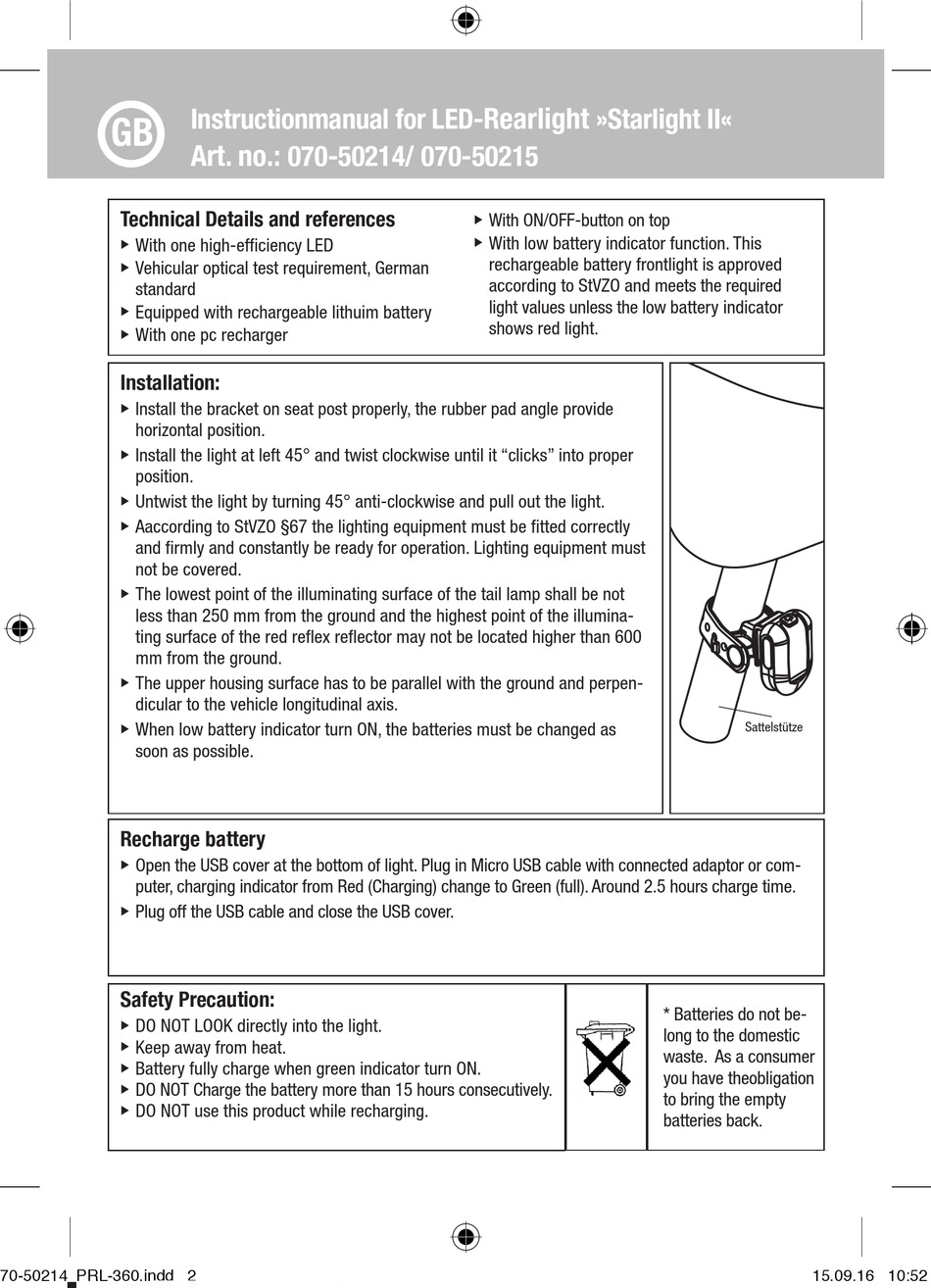

Instructionmanual for LED- Rearlight »Starlight II«
Art. no.: 070-50214/ 070-50215
With ON/OFF-button on top
u
With low battery indicator function. This
u
rechargeable battery frontlight is approved
according to StVZO and meets the required
light values unless the low battery indicator
shows red light.
Sattelstütze
* Batteries do not be-
long to the domestic
waste. As a consumer
you have theobligation
to bring the empty
batteries back.
15.09.16 10:52
