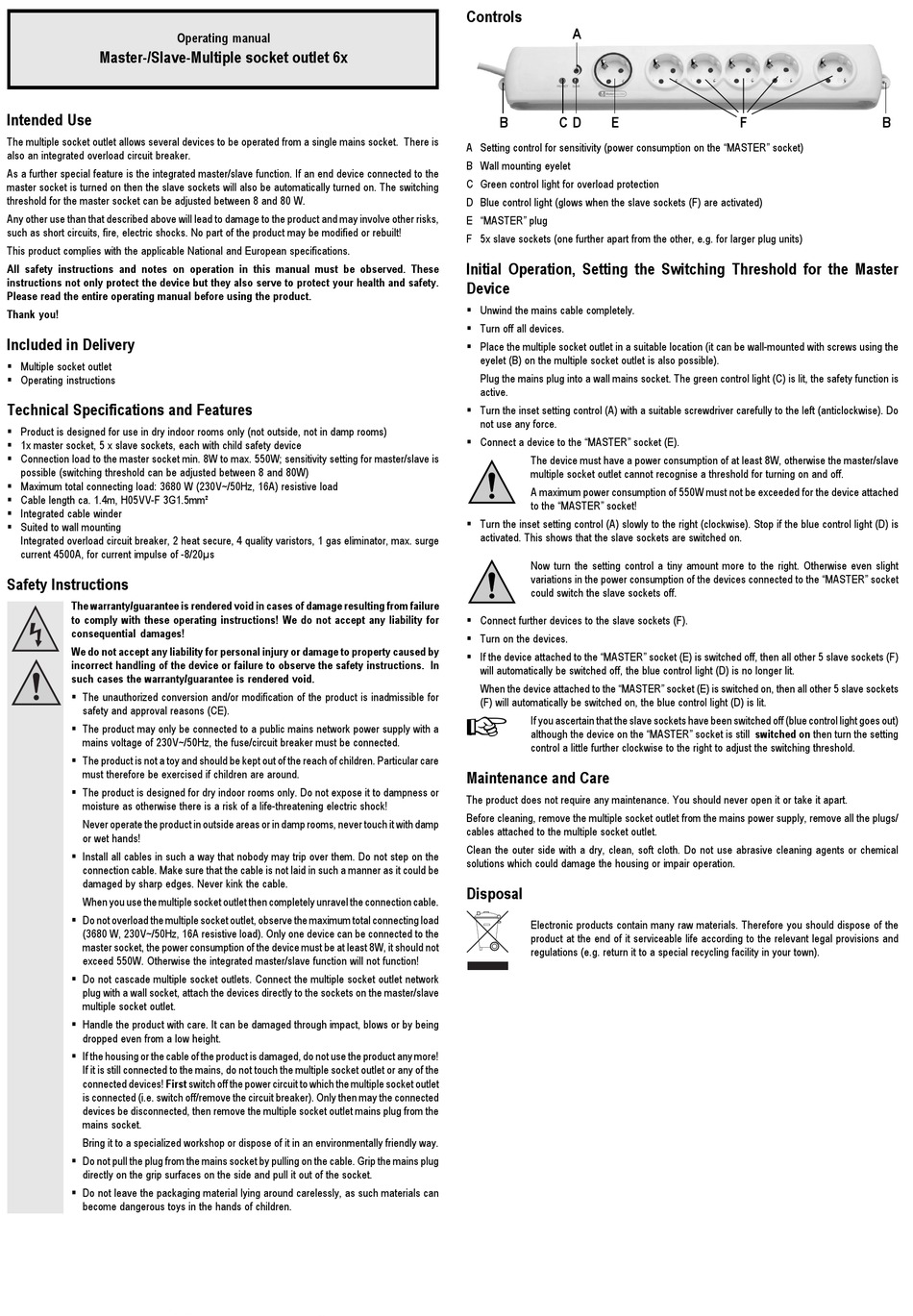

Operating manual
Master-/Slave-Multiple socket outlet 6x
Intended Use
The multiple socket outlet allows several devices to be operated from a single mains socket. There is
also an integrated overload circuit breaker.
As a further special feature is the integrated master/slave function. If an end device connected to the
master socket is turned on then the slave sockets will also be automatically turned on. The switching
threshold for the master socket can be adjusted between 8 and 80 W.
Any other use than that described above will lead to damage to the product and may involve other risks,
such as short circuits, fire, electric shocks. No part of the product may be modified or rebuilt!
This product complies with the applicable National and European specifications.
All safety instructions and notes on operation in this manual must be observed. These
instructions not only protect the device but they also serve to protect your health and safety.
Please read the entire operating manual before using the product.
Thank you!
Included in Delivery
Multiple socket outlet
Operating instructions
Technical Specifications and Features
Product is designed for use in dry indoor rooms only (not outside, not in damp rooms)
1x master socket, 5 x slave sockets, each with child safety device
Connection load to the master socket min. 8W to max. 550W; sensitivity setting for master/slave is
possible (switching threshold can be adjusted between 8 and 80W)
Maximum total connecting load: 3680 W (230V~/50Hz, 16A) resistive load
Cable length ca. 1.4m, H05VV-F 3G1.5mm²
Integrated cable winder
Suited to wall mounting
Integrated overload circuit breaker, 2 heat secure, 4 quality varistors, 1 gas eliminator, max. surge
current 4500A, for current impulse of -8/20µs
Safety Instructions
The warranty/guarantee is rendered void in cases of damage resulting from failure
to comply with these operating instructions! We do not accept any liability for
consequential damages!
We do not accept any liability for personal injury or damage to property caused by
incorrect handling of the device or failure to observe the safety instructions. In
such cases the warranty/guarantee is rendered void.
The unauthorized conversion and/or modification of the product is inadmissible for
safety and approval reasons (CE).
The product may only be connected to a public mains network power supply with a
mains voltage of 230V~/50Hz, the fuse/circuit breaker must be connected.
The product is not a toy and should be kept out of the reach of children. Particular care
must therefore be exercised if children are around.
The product is designed for dry indoor rooms only. Do not expose it to dampness or
moisture as otherwise there is a risk of a life-threatening electric shock!
Never operate the product in outside areas or in damp rooms, never touch it with damp
or wet hands!
Install all cables in such a way that nobody may trip over them. Do not step on the
connection cable. Make sure that the cable is not laid in such a manner as it could be
damaged by sharp edges. Never kink the cable.
When you use the multiple socket outlet then completely unravel the connection cable.
Do not overload the multiple socket outlet, observe the maximum total connecting load
(3680 W, 230V~/50Hz, 16A resistive load). Only one device can be connected to the
master socket, the power consumption of the device must be at least 8W, it should not
exceed 550W. Otherwise the integrated master/slave function will not function!
Do not cascade multiple socket outlets. Connect the multiple socket outlet network
plug with a wall socket, attach the devices directly to the sockets on the master/slave
multiple socket outlet.
Handle the product with care. It can be damaged through impact, blows or by being
dropped even from a low height.
If the housing or the cable of the product is damaged, do not use the product any more!
If it is still connected to the mains, do not touch the multiple socket outlet or any of the
connected devices! First switch off the power circuit to which the multiple socket outlet
is connected (i.e. switch off/remove the circuit breaker). Only then may the connected
devices be disconnected, then remove the multiple socket outlet mains plug from the
mains socket.
Bring it to a specialized workshop or dispose of it in an environmentally friendly way.
Do not pull the plug from the mains socket by pulling on the cable. Grip the mains plug
directly on the grip surfaces on the side and pull it out of the socket.
Do not leave the packaging material lying around carelessly, as such materials can
become dangerous toys in the hands of children.
Controls
A
B
C
D
E
A Setting control for sensitivity (power consumption on the "MASTER" socket)
B Wall mounting eyelet
C Green control light for overload protection
D Blue control light (glows when the slave sockets (F) are activated)
E "MASTER" plug
F 5x slave sockets (one further apart from the other, e.g. for larger plug units)
Initial Operation, Setting the Switching Threshold for the Master
Device
Unwind the mains cable completely.
Turn off all devices.
Place the multiple socket outlet in a suitable location (it can be wall-mounted with screws using the
eyelet (B) on the multiple socket outlet is also possible).
Plug the mains plug into a wall mains socket. The green control light (C) is lit, the safety function is
active.
Turn the inset setting control (A) with a suitable screwdriver carefully to the left (anticlockwise). Do
not use any force.
Connect a device to the "MASTER" socket (E).
The device must have a power consumption of at least 8W, otherwise the master/slave
multiple socket outlet cannot recognise a threshold for turning on and off.
A maximum power consumption of 550W must not be exceeded for the device attached
to the "MASTER" socket!
Turn the inset setting control (A) slowly to the right (clockwise). Stop if the blue control light (D) is
activated. This shows that the slave sockets are switched on.
Now turn the setting control a tiny amount more to the right. Otherwise even slight
variations in the power consumption of the devices connected to the "MASTER" socket
could switch the slave sockets off.
Connect further devices to the slave sockets (F).
Turn on the devices.
If the device attached to the "MASTER" socket (E) is switched off, then all other 5 slave sockets (F)
will automatically be switched off, the blue control light (D) is no longer lit.
When the device attached to the "MASTER" socket (E) is switched on, then all other 5 slave sockets
(F) will automatically be switched on, the blue control light (D) is lit.
If you ascertain that the slave sockets have been switched off (blue control light goes out)
although the device on the "MASTER" socket is still switched on then turn the setting
control a little further clockwise to the right to adjust the switching threshold.
Maintenance and Care
The product does not require any maintenance. You should never open it or take it apart.
Before cleaning, remove the multiple socket outlet from the mains power supply, remove all the plugs/
cables attached to the multiple socket outlet.
Clean the outer side with a dry, clean, soft cloth. Do not use abrasive cleaning agents or chemical
solutions which could damage the housing or impair operation.
Disposal
Electronic products contain many raw materials. Therefore you should dispose of the
product at the end of it serviceable life according to the relevant legal provisions and
regulations (e.g. return it to a special recycling facility in your town).
F
B
