Power Plug Radio Repeater RXP03
GB

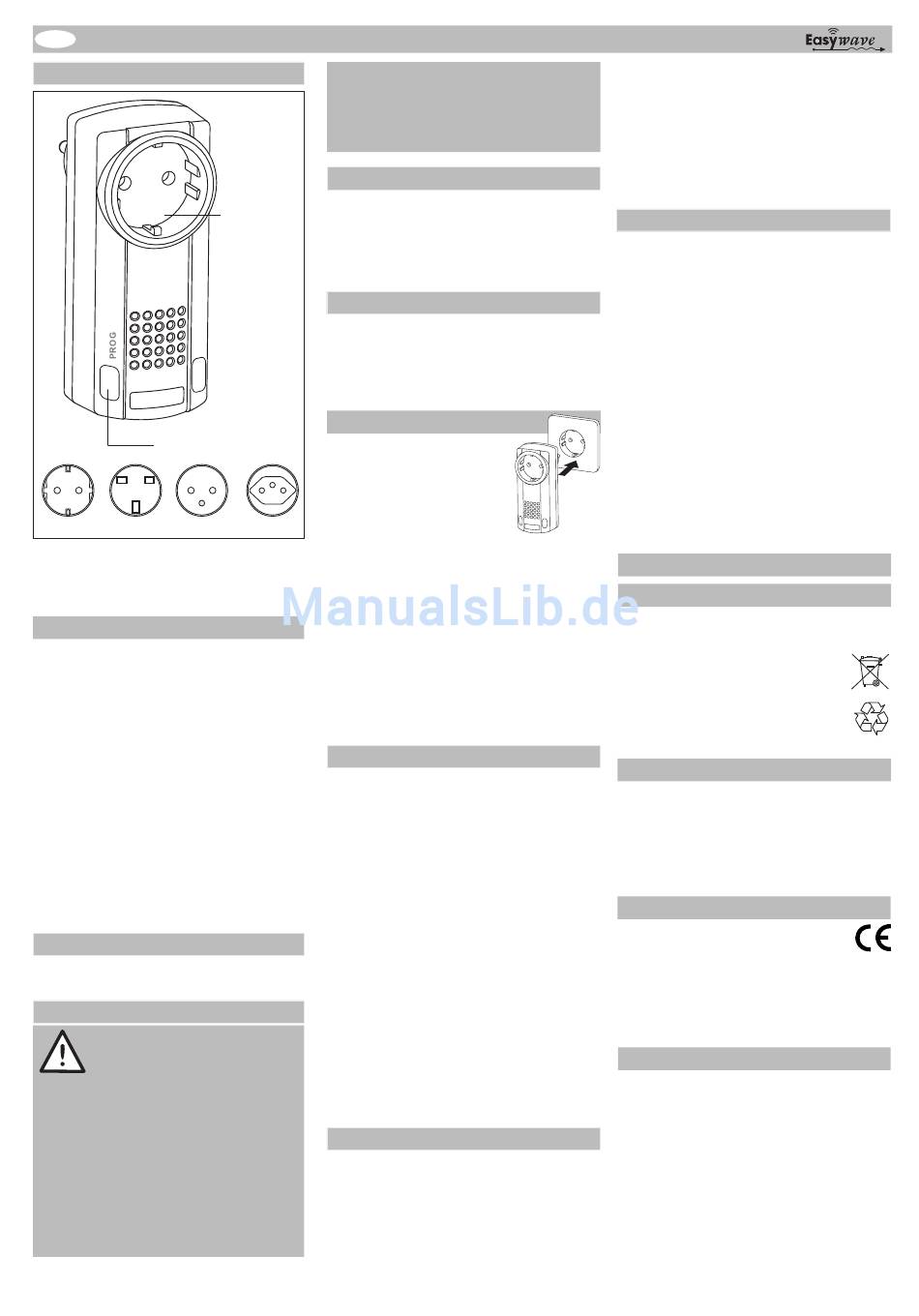

Models
Programming button and
LED view
D(A/NL/S/N)
F/B (PL)
GB
RXP03-5001E-01 868.30 MHz
RXP03-5001E -02 868.30 MHz
RXP03-5001E -04 868.30 MHz
RXP03-5001E -05 868.30 MHz
Technical Details
Frequency: 868.30 MHz
Modulation: FSK
Transmission delay: 300 ms
Range: open field:
buildings:
Operating voltage: 230 V AC / 50 Hz
Power consumption: 80 mA
Leistungsaufnahme: 0,7 W (stand by)
Protective class: II
Protective type: IP 20
Operating temp:: -20°C to +60°C
Max. relative air
humidity : 60%
Mains output : Power plug
( non switchable
Max. contact load : 16 A / 230 V AC
Dimensions (WxHxT) 50 x 120 x 75 mm
Weight: approx. 190 g
Scope of Delivery
Power plug radio repeater RXP03, operating
instructions
Safety Advice
Please read these instructions
carefully before using the device!
We do not accept any liability for personal
injury or damage to property caused by
incorrect handling or non-observance of the
safety instructions!
Observe the valid laws and regulations as well
as the manufacturer's instructions
devices to be operated!
Attention! Observe the admissible supply
voltage and the maximum contact load of the
wall outlet (16 A, 230 V AC / 50 Hz)!
Have malfunctioning devices checked by the
manufacturers!
Do not open the appliance's casing!
Do not make any unauthorized alterations or
modifications to the unit!
Intended Use
The unit may only be used as a Repeater for
Wall outlet
Easywave telegrams.
The manufacturer shall not be liable for any
damage caused by improper or non-intended
use.
Function
The Power Plug Radio Repeater receives
radiograms of Easywave transmitters and re-
transmits these radiograms with a transmission
delay of 300 ms. So the range of Easywave radio
transmitters can be extended.
Start Up
1. Plug the repeater into a
properly functioning earthed
outlet. The repeater is ready
for operation now.
Attention! Ensure an inter-
CH ference-free wireless con-
nection. Do not install the device in a
D
distribution box, metal housings or close to
GB
large metal objects
F/B
2. Teach the coding of the Easywave
CH
transmitter into the repeater (see section
"Teaching in the transmitter").
As long as no Easywave transmitter code is
memorized by the repeater, every received
Easywave telegram will be re-transmitted.
During receiving a radiogram, the LED flashes
150 m
approx.
for a short time. During re-transmission, the LED
30 m
approx.
flashes a little bit longer.
Teaching in the transmitter
The transmission codes of the corresponding
Easywave transmitters have to be memorized by
the repeater so that specific radiograms are re-
transmitted.
1. Briefly (< 1.6 sec.) press the programming
button. The LED flashes.
)
2. Press and hold a transmitter button. As soon
as the code has been memorized, the LED
lights up for 4 seconds and then flashes
again. Release the transmitter button.
3. Repeat step 2 with the other transmitters. The
repeater can memorize up to 16 transmitter
codes.
4. To return to the operating mode briefly
(< 1.6 sec.) press the programming button.
After memorizing the first transmitter code, the
repeater only re-transmits the radiograms of
memorized transmitters.
In case of a longer power failure the programming
of the repeater remains.
Deleting Specific Transmission
In the delete mode you can delete specific
for the
transmitter codes.
1. Keep the programming button pressed for
more than 1.6 sec. activated. The LED
flashes rapidly.
2. Press the selected transmitter channel
button. As soon as the code has been
deleted, the LED lights up for 4 sec. and then
flashes again rapidly.
3. Repeat step 2 with another transmitter or
briefly (< 1.6 sec.) press the programming
button in order to return to the operating
mode.
Reset (Deleting Memory Completely)
In the reset mode you can delete all codes the
repeater has memorized.
1. Keep the programming button pressed for
more than 1.6 sec. The LED flashes rapidly.
2. Press the programming button again and
keep it pressed for more than 1.6 sec. As
soon as the memory has been deleted
completely, the LED lights up for 4 sec. and
than flashes again rapidly.
3. Briefly (< 1.6 sec.) press the programming
button in order to return to the operating
mode.
Note: If all codes have been deleted, the repeater
will re-transmit every Easywave telegram again.
General Information
Disposal
Waste electrical products should not be
disposed of with household waste!
Dispose of the waste product via a collec-
tion point for electronic scrap or via your
specialist dealer.
Put the packaging material into the
recycling bins for cardboard, paper and
plastics.
Warranty
We will remedy defects on the device based on
material or production errors within the statutory
warranty period or exchange the device.
Any unauthorized tampering with, or modifica-
tions to, the product shall render this warranty null
and void.
Conformity
The product fulfils the essential require-
ments of the R&TTE directive
1999/5/EG.
For application in: EU/CH/FL/IS/N
The Declaration of Conformity can be found on
the internet at: www.eldat.de.
Customer Service
If the device does not work properly despite
proper handing or in case of damage, please
contact your retailer.
Codes ELDAT GmbH
Im Gewerbepark 14
D-15711 Zeesen
Germany
Phone: + 49 (0) 33 75 / 90 37-0
Fax: + 49 (0) 33 75 / 90 37-90
Internet: www.eldat.de
E-mail: info@eldat.de
98805 0511 D/GB
