Connection and operation

Before installation, please make sure all devices you wish to
connect have been turned off.
1. Connect the audio source device to the converter using
appropriate Toslink or Coaxial cables.
2. Connect the A/V receivers or amplifiers to the converter using
appropriate R/L cable.
3. Connect the converter to power supply by USB cable or
power adapter.
4. Turn on the receiver.
Notes:
• When connected to the Toslink and Coaxial cables at the
same time, the product will give priority to Toslink input.
• Insert / Extract cable gently.

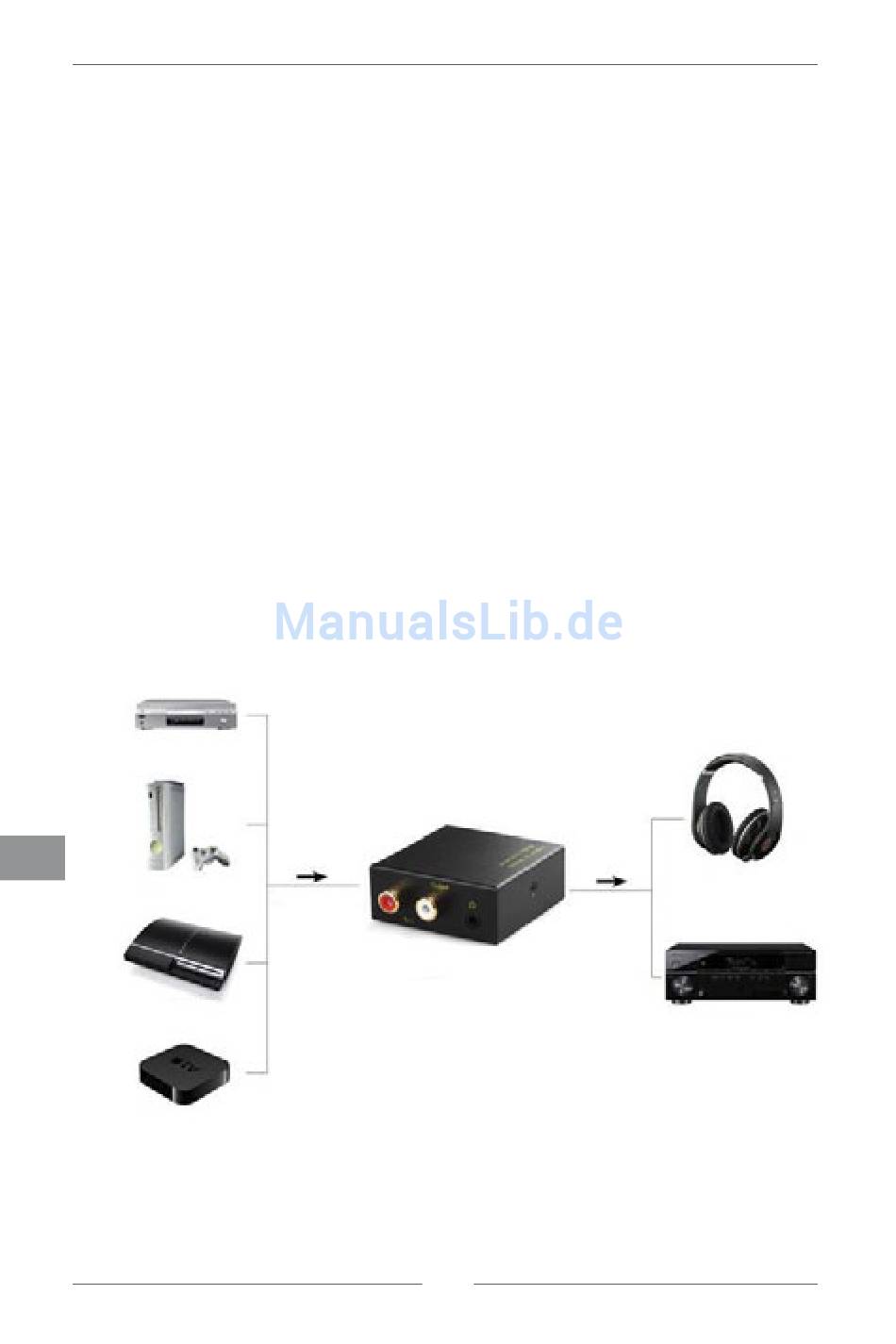

CONNECTION DIAGRAM

DVD and Blu-ray
player
EN
Xbox
PS3
Apple TV
Toslink
/Coaxial
8
owner's mAnuAl
Headphones
jack/R/L
Amplifier
