Assembling Your Kickscooter; Installing A Second Battery Pack - Segway Ninebot ES1 Benutzerhandbuch

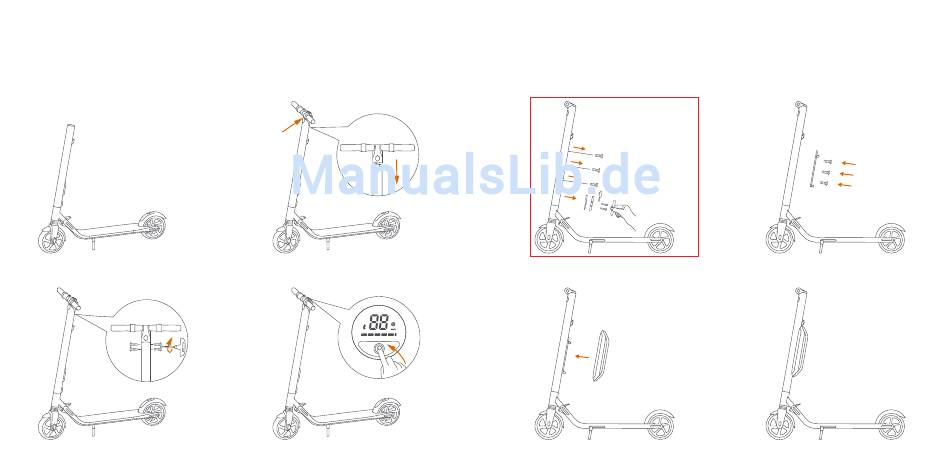

4 Assembling Your KickScooter

1. Unfold the stem and push it until you hear a
click. Then unfold the kickstand to support
the scooter.
3. Install four screws (two on each side) with
the included hex wrench.
06
2. Firmly connect the wires inside the handle and
the stem. Slide the handle onto the stem. Be
aware of the correct orientation.
Head Light
toward front
4. Verify that your KickScooter powers on and off.

5 Installing a Second Battery Pack

Follow these steps when installing a second battery pack:
1. Remove the three screws on the stem, as
shown. Then remove the cover near the
charge port.
3. Install the battery pack onto the support bracket
and tighten the screws securely.
2. Install the support bracket and fasten securely
with three screws, as shown.
4. Verify that your KickScooter powers on and off.
07
