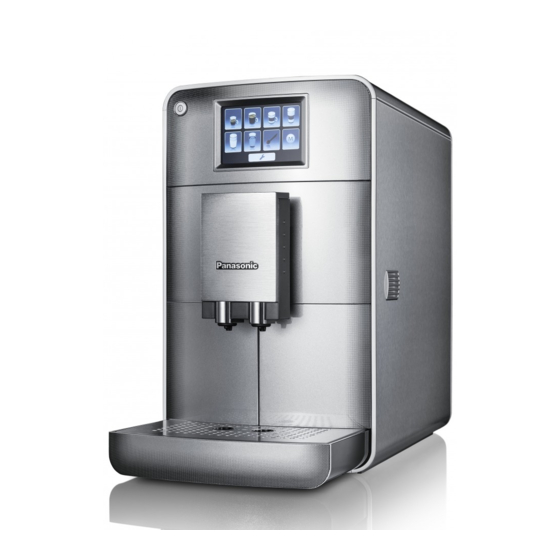

Panasonic NC-ZA1 Handbuch

Contact information
Kontaktinformation
Coordonnées
UNITED KINGDOM
GB
Panasonic Customer Communications Centre:
Website : www.panasonic.com/uk/support/
Phone : 0844 844 3899
IRELAND
IE
Panasonic Customer Communications Centre:
Website : www.panasonic.com/uk/support/
Phone : 01 289 8333
DE DEUTSCHLAND
Panasonic Konsumenten Hotline
Website : www.panasonic.com/de/support/
Phone : 040-55 55 88 55
AT ÖSTERREICH
Panasonic Konsumenten Hotline
Website : www.panasonic.com/de/support/
Phone : 01-2 67 60 67
FRANCE
FR
Service Consommateur Panasonic
Website : www.panasonic.com/fr/support
Phone : 01 70 48 91 73
BELGIQUE-BELGIE
BE
Klantendienst / Service clientèle
Website : www.panasonic.com/be/nl/support
Phone : 070-223011
NL NEDERLAND
Consumenten Call Center
Website : www.panasonic.com/nl/support/
Phone : 073-6402802
PL POLSKA
Infolinia Panasonic Polska
Website : www.panasonic.com/pl/wsparcie
Phone : 801 003 532, 22 295 37 27
(numer dla połączeń z telefonów komórkowych)
Installation of milk hose
Attach the milk hose.
1 Insert the straight cut end of the milk hose
through the side opening of the espresso
machine.
2 Insert the end of the milk hose firmly into the
opening on the side of the milk foamer until it
stops.
3 Press the milk hose into the guide, then
close the door.
4 Insert the milk hose into the milk package.
Do not use soy or rice milk otherwise it may
influence the milk foam quality.
Installation of the stainless steel plate and the drip tray
Place the stainless steel plate (rounded edge is facing up) on the drip tray.
Push them into the espresso machine until they snap into place.
Open the drip tray by pressing it.
Correct Incorrect
Snap into the inner circumference of drip tray.
NC-ZA1_1SG_EU.indd 1



Split end goes into the milk
package.
Stainless steel plate
Important information
Thank you for purchasing this Panasonic product.
Please make sure to read the Operating Instructions before using the Espresso
machine.
If you encounter any issue with this unit—please contact Panasonic. See contact
information opposite.
Wichtige Hinweise
Wir danken Ihnen für den Kauf des Panasonic-Produkts.
Lesen Sie sich bitte die Bedienungsanleitung durch, bevor Sie den
Kaffeevollautomaten verwenden.
Bitte wenden Sie sich zuerst an die Konsumenten-Hotline, wenn Sie Fragen zur
Benutzung, Reinigung, Fehlfunktionen, etc. haben.
Informations importantes
Nous vous remercions d'avoir choisi le produit Panasonic.
Veuillez vous assurer de lire ce mode d'emploi avant d'utiliser la machine
expresso.
Veuillez premièrement nous contacter via nos coordonnées, lorsque vous avez
une question concernant l'utilisation, le nettoyage, une panne, etc.
The amount of milk is low or milk foam quality is poor.
1
Open the cap from milk foamer and remove milk foamer nozzle.
Clean the milk foamer nozzle with a thin needle.
Cap



Milk foamer nozzle
2
Soak all parts of milk foamer in the cleaner solution (mix of 250 mL water and
7.5–15 mL milk system solution) for 5 hours and rinse well.
3
Use the brush of the measuring spoon and clean all parts of the milk foamer
especially the 5 vents highlighted. Finally rinse the milk foamer well.



×5
Front Back
Please contact the contact information, when the condition is not improved.
When the display shows U10 or water is collected in the waste container
Q
Brewing unit is blocked.
•
Pull out the brewing unit and loosen at the rear
by turning the pin at least 3 times using tooth
on the measuring spoon.
1
Turn the brewing unit upside down. Open the brewing unit and put it under warm
running water to clean by brush.
(Make sure all coffee residue is removed from the stainless steel filter.)
2
Soak the brewing unit for approximately 30 minutes in lukewarm water
containing diluted dish soap (neutral) and rinse well.
Stainless
steel filter
Please contact the contact information, when the condition is not improved.

>5 H


0.5 H
2014/04/04
×3
10:45:19
