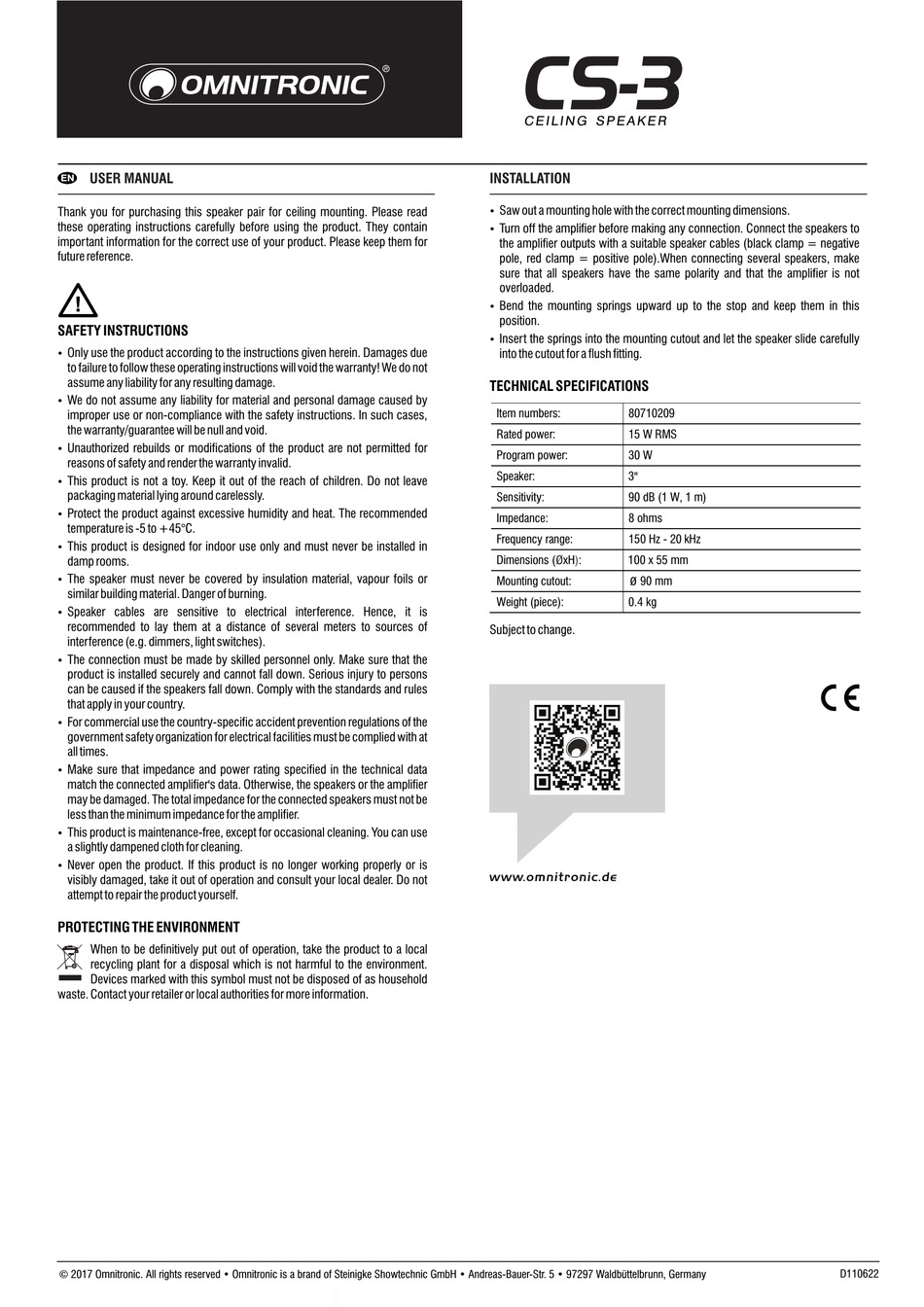

USER MANUAL
EN
Thank you for purchasing this speaker pair for ceiling mounting. Please read
these operating instructions carefully before using the product. They contain
important information for the correct use of your product. Please keep them for
future reference.
SAFETY INSTRUCTIONS
Only use the product according to the instructions given herein. Damages due
?
to failure to follow these operating instructions will void the warranty! We do not
assume any liability for any resulting damage.
We do not assume any liability for material and personal damage caused by
?
improper use or non-compliance with the safety instructions. In such cases,
the warranty/guarantee will be null and void.
Unauthorized rebuilds or modifications of the product are not permitted for
?
reasons of safety and render the warranty invalid.
This product is not a toy. Keep it out of the reach of children. Do not leave
?
packaging material lying around carelessly.
Protect the product against excessive humidity and heat. The recommended
?
temperature is -5 to +45°C.
This product is designed for indoor use only and must never be installed in
?
damp rooms.
The speaker must never be covered by insulation material, vapour foils or
?
similar building material. Danger of burning.
Speaker cables are sensitive to electrical interference. Hence, it is
?
recommended to lay them at a distance of several meters to sources of
interference (e.g. dimmers, light switches).
The connection must be made by skilled personnel only. Make sure that the
?
product is installed securely and cannot fall down. Serious injury to persons
can be caused if the speakers fall down. Comply with the standards and rules
that apply in your country.
For commercial use the country-specific accident prevention regulations of the
?
government safety organization for electrical facilities must be complied with at
all times.
Make sure that impedance and power rating specified in the technical data
?
match the connected amplifier's data. Otherwise, the speakers or the amplifier
may be damaged. The total impedance for the connected speakers must not be
less than the minimum impedance for the amplifier.
This product is maintenance-free, except for occasional cleaning. You can use
?
a slightly dampened cloth for cleaning.
Never open the product. If this product is no longer working properly or is
?
visibly damaged, take it out of operation and consult your local dealer. Do not
attempt to repair the product yourself.
PROTECTING THE ENVIRONMENT
When to be definitively put out of operation, take the product to a local
recycling plant for a disposal which is not harmful to the environment.
Devices marked with this symbol must not be disposed of as household
waste. Contact your retailer or local authorities for more information.
© 2017 Omnitronic. All rights reserved • Omnitronic is a brand of Steinigke Showtechnic GmbH • Andreas-Bauer-Str. 5 • 97297 Waldbüttelbrunn, Germany
CS-3
C E I L I N G S P E A K E R
INSTALLATION
Saw out a mounting hole with the correct mounting dimensions.
?
Turn off the amplifier before making any connection. Connect the speakers to
?
the amplifier outputs with a suitable speaker cables (black clamp = negative
pole, red clamp = positive pole).When connecting several speakers, make
sure that all speakers have the same polarity and that the amplifier is not
overloaded.
Bend the mounting springs upward up to the stop and keep them in this
?
position.
Insert the springs into the mounting cutout and let the speaker slide carefully
?
into the cutout for a flush fitting.
TECHNICAL SPECIFICATIONS
Item numbers:
80710209
Rated power:
15 W RMS
Program power:
30 W
Speaker:
3"
Sensitivity:
90 dB (1 W, 1 m)
Impedance:
8 ohms
Frequency range:
150 Hz - 20 kHz
ø
Dimensions (
xH
)
:
100 x 55 mm
ø
Mounting cutout:
90 mm
Weight (piece):
0.4 kg
Subject to change.
www.omnitronic.de
D110622
