y Auto -Off: 10 ± 1 second
y Battery: 2 x AAA 1.5V batteries

Current Consumption

‹

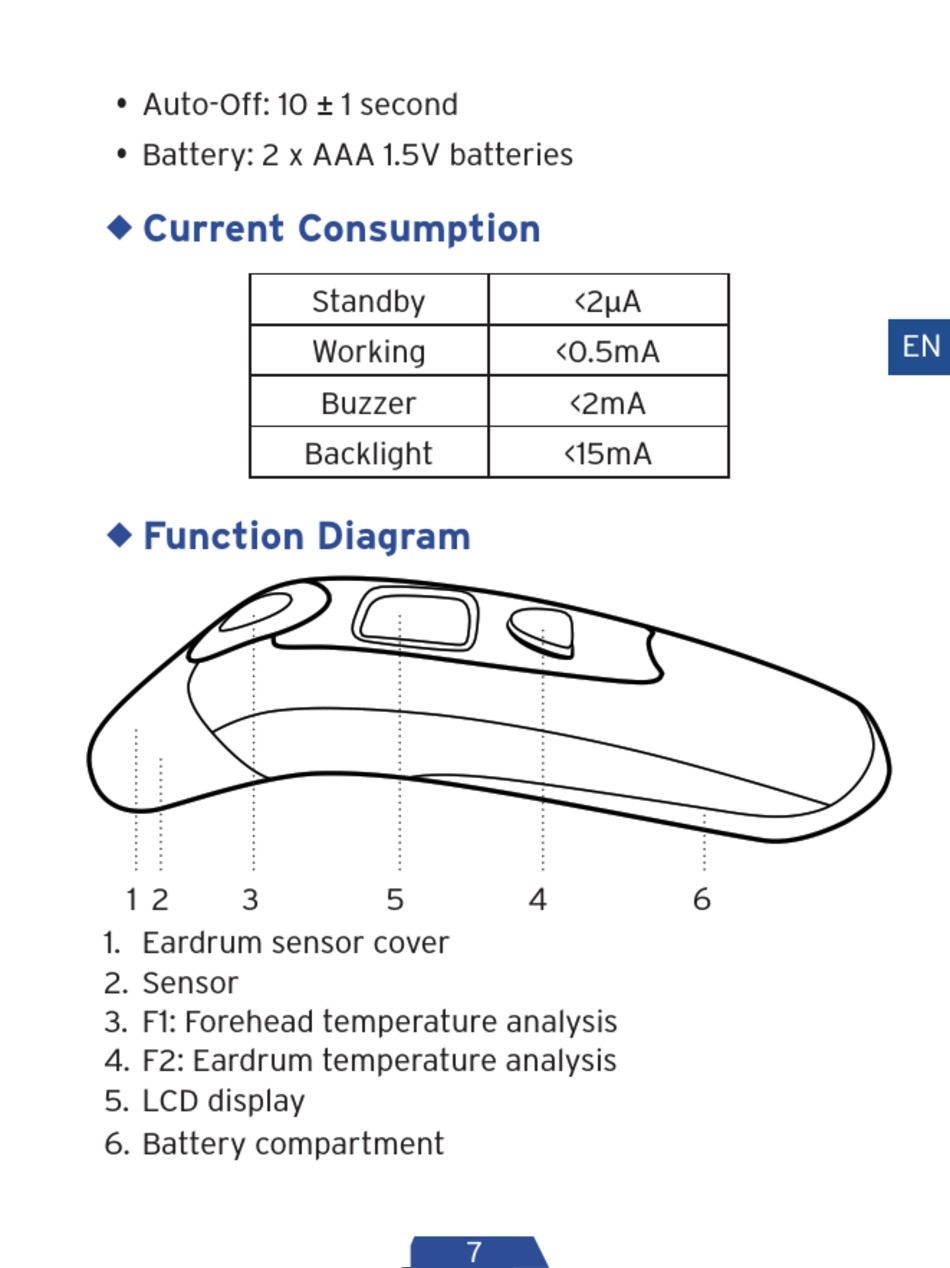

Function Diagram

‹
1 2 3
1. Eardrum sensor cover
2. Sensor
3. F1: Forehead temperature analysis
4. F2: Eardrum temperature analysis
5. LCD display
6. Battery compartment
Standby
Working
Buzzer
Backlight
5
7
<2μA
<0.5mA
<2mA
<15mA
