Teil 2: Operation and programming:

Involight "DMXREC" is an easy-to-use DXM recording and playback device.
Note: Basic knowledge for the DMX-512 standard is required!

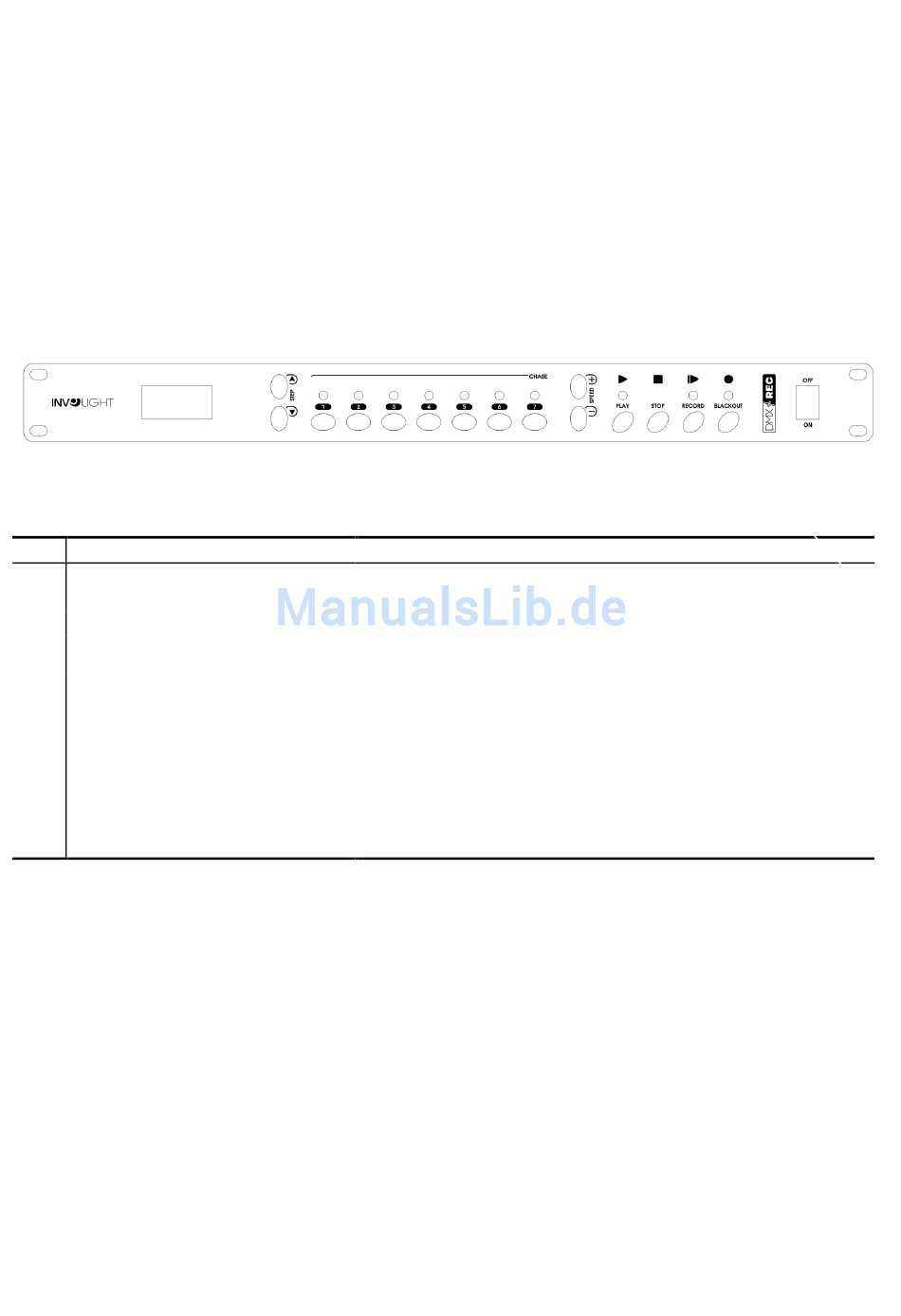

2.1 Overview of keys and switches:

Illustration 1.
Recorder-Surface:
1.
Pos. Controls
1 LCD Display
2 Keys /STEP▲/ und /STEP▼/
3 Keys /CHASE/ 1-7
4 Keys /SPEED▲/ und /SPEED▼/
5 Key /PLAY/
6 Key /STOP/
7 Key /RECORD/
8 Key / BLACKOUT/
9 Power switch
2. 3.
Function
These keys are used to select the chases..
Keys 1-7 to select a program (user-programmed chaser).
Adjusting the execution speed during the time-controlled sequence
of scenes or a chaser.
This key starts the selected chaser. This is for recording and
playback.
This button will terminate the selected chaser. This is for recording
and playback.
Starts a recording.
Switches all control channels to the value zero. The LED is lit in
this state.
Turns the unit on and off.
13
4. 5. 6. 7. 8. 9.
