TAXI TAXI
Mobile
Data
Terminal
GPS
Antena
*Data Terminal and GPS
are not being supplied
by Digitax
Radio Modem
The Digitax F1 Taximeter has sev eral
communication channels that make possible the
communication with the external world.
Two independent RS232 serial ports at baud rate
from 300 to 38400 and a 4 wire synchro channel
plus a special printer driver, allow the interfacing to
several devices at the same time. The Commtax 2
included protocol allows remote managing of all the
taximeter, magnetic Credit Card reader , chip card
and printer functions. The link to a dispatch system
or another mobile terminal is accomplished on the
RS232 port at any baud rate from 300 to 38400
using a frame structure N, 8, 1: signal level +/- 12 V ,
using the protocol COMMTAX 2 described in this
document.

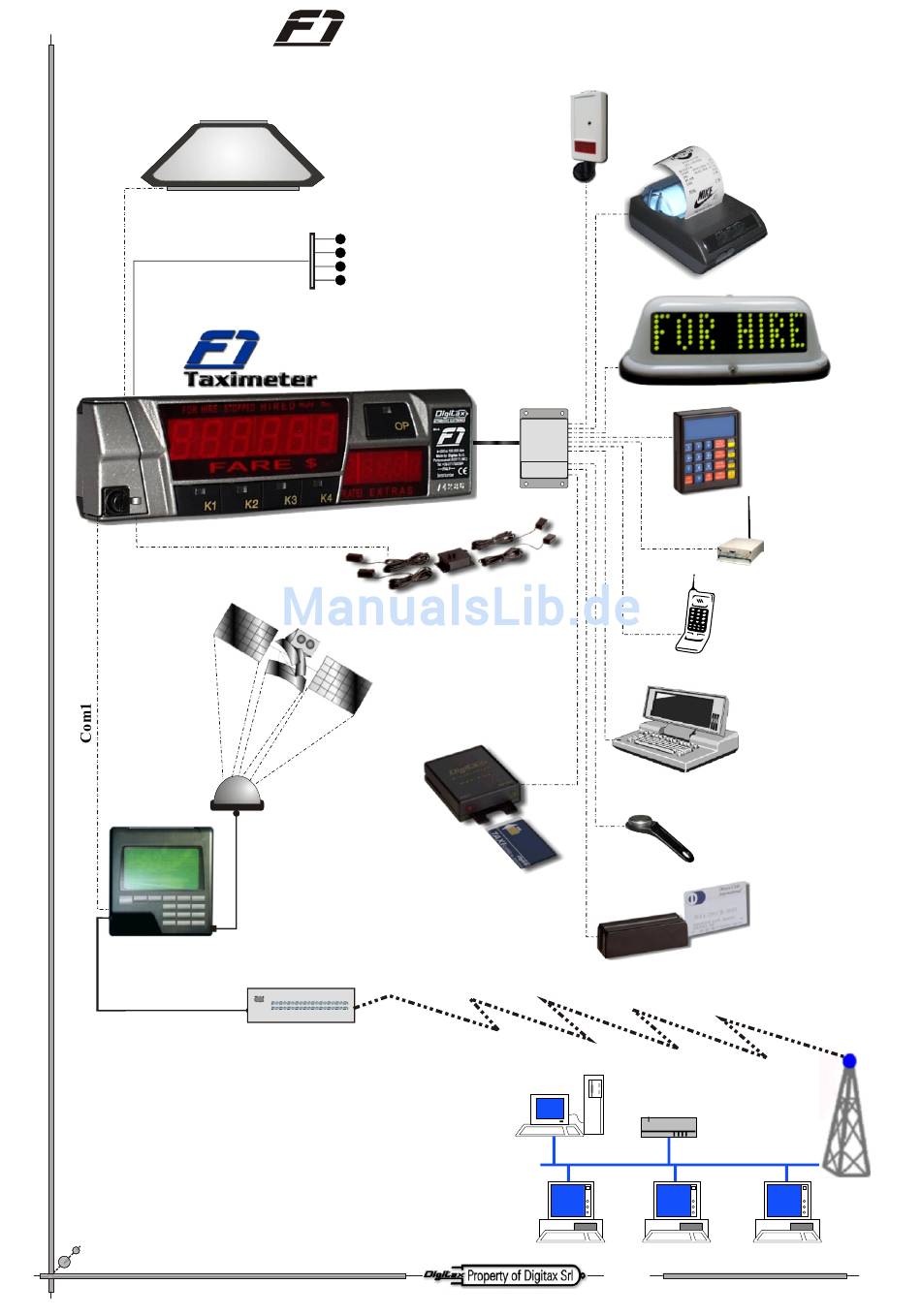

Interfacing System
4 Programmierbare
Ausgaenge
"Verteiler-Box"
Com2
I.R.
Fahrgast Sensor
Smart Card
Reader/Writer
I.R. Sender
RS232
Unibus
Network
Input/Output
Dallas ™
Fahrer Speicher Key
Graphic Drucker
Inteliegente
Dachleuchte
Abgesetzte Tastadur
kurze Distance
Funk Modem
GSM \ GPRS
Modem
PC oder Terminal
Magnetic Card
Reader/Writer
Base Station
