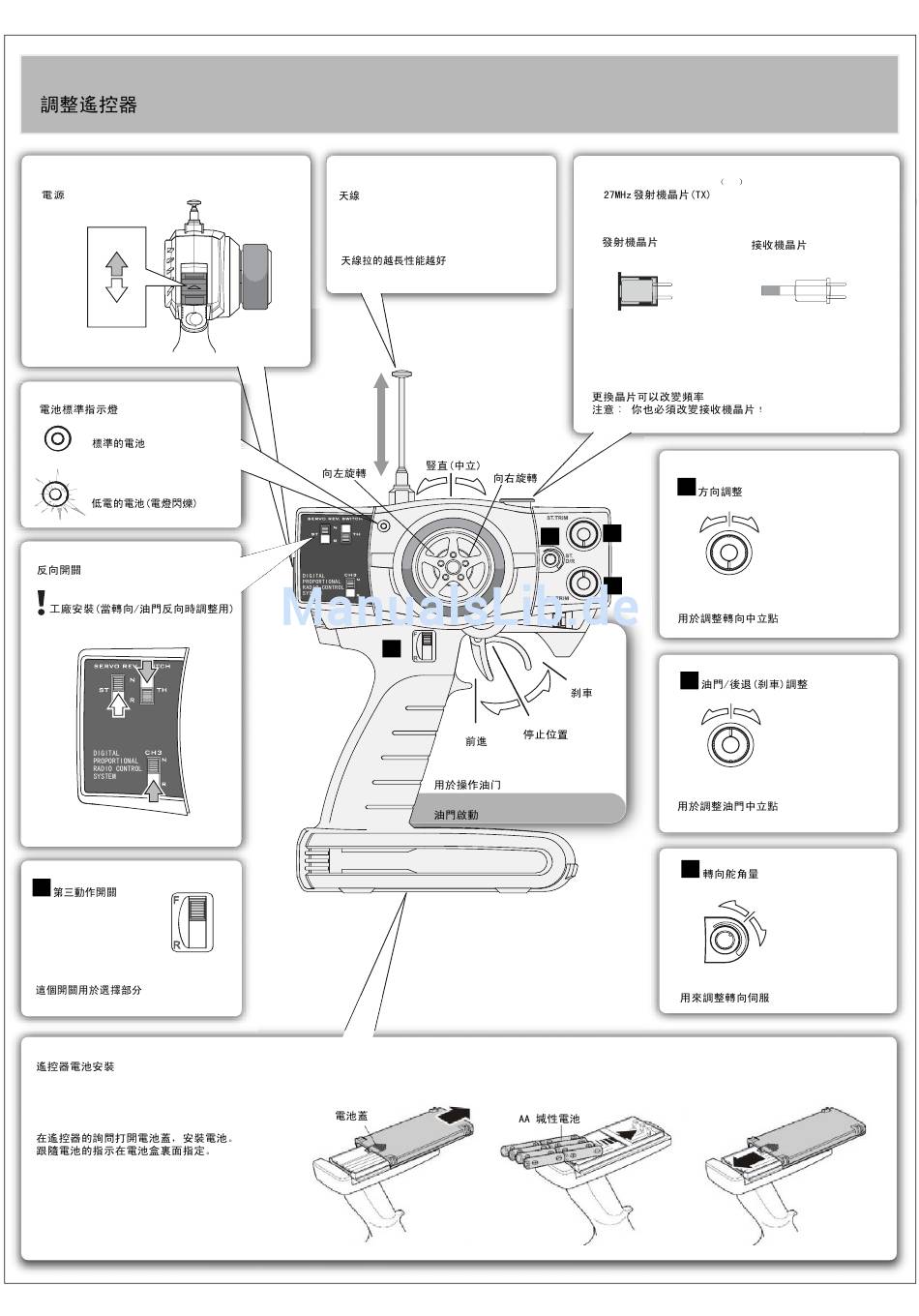

Transmitter Preparation
Power Switch
ON
OFF
Battery Level Indicator
Good Batteries
Low Batteries(Light Blinks)
Reverse Switch
Servo Factory Settings
3ch Switch
4
This switch is used for optional parts.
Transmitter Battery Installation
Open battery cover at the bottom of transmitter.
Install batteries. Follow the direction of batteries
designated in the inside of battery box.
Antenna
Extend the antenna to the maximum
Length for best performance
Straight (neutral)
Left turn
Right turn
4
Forward
To be used for throttle operation
Throttle Trigger
Battery Cover
8X
27MHzTransmitter Crystal
Transmitter crystal(TX)
The crystal can be replaced to change frequencies.
Note : You must also change receiver crystals!
Do not use AM crystals
1
1
3
2
To be used for trimming the steering
operation
2
Brake
Stop(Neutral)
To be used for trimming the throttle
operation
3
To be used to adjust steering servo throw
AA Alkaling Batteries
TX
Receiver crystal(RX)
Steering Trim
Throttle Trim
Steering Dual Rate
