Technical Data:
Ledino LED Wall-/ Ceiling Light „Altona HF"
with HF-Motion Sensor, for indoor use
IP20, isolation class 1, IK 02
220-240 V AC 50/60 Hz, Epistar LED chip (70 lm/W)
CRI > 80 Ra, SDCM 6, 120° beam angle
operating temp. -20 bis 40 ° C, not dimmable
metal base plate, diffusor made of PMMA
lifetime 25000 h, 20000 switching cycles
IP20 (no protection against water)
statutory warranty 2 years
18 watts, Ø 320 mm, 1260 lmenergy class A+
22 kWh/1000 (at non-stop operation of sensor)
maximum consumption
18 W LED light correspond approx. 100 W incandescent lamps
11200181002020: warm white light 2700 K
11200184002020: neutral white light 4000 K
Ø: 320 mm, H: 95 mm, 0.61 kg
24 watts, Ø 360 mm, 1700 lm, energy class A+
28 kWh/1000 (at non-stop operation of sensor)
maximum consumption
24 W LED light correspond approx. 140 W incandescent lamps
11200241002020: warm white light 2700 K
11200244002020: neutral white light 4000 K
Ø: 360 mm, H: 100 mm, 0.65 kg
HF motion sensor with twilight switch:
5,8 GHz HF system (> 0.2 mW), power consumption ca. 0.5 W
installation height at ceiling mounting 2.5 -3.5 m
installation height 2.5 m: detection range max. Ø 20 m (360° )
light sensitivity adjustable: off/ 10 lx/ 50 lx/ 100 lx
duty cycle adjusting: 10 sec./ 3 min./ 6 min./ 12 min.

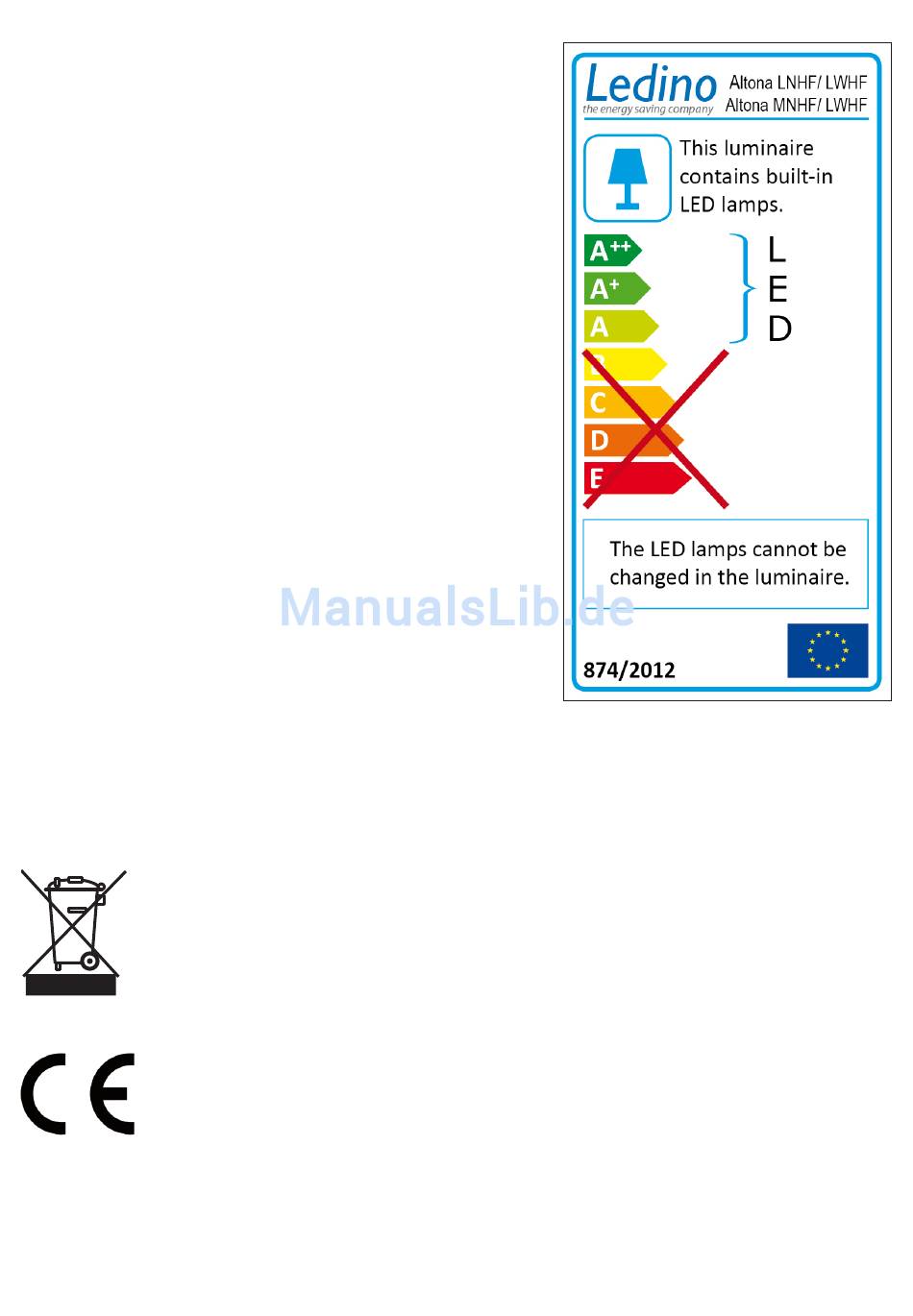

Used units must not be disposed of with household waste!
If the unit is no longer operational, every consumer is required by law to dispose
of used devices separate from household waste, e. g. at a collection point run by
the communal authority borough. In this way, used devices can be recycled and
waste materials disposed of in an environmentally friendly manner.
For this reason, electrical equipment is labelled with the displayed symbol.
We hereby confirm that the products are in line with the regulations – and in
particular with the protection requirements – of the European Union's directive
on the harmonisation of the legislation relating to electromagnetic compability
(2014/30/EU), of the directive on radio equipment and telecommunications termi-
nal equipment (2014/53/EU), the low voltage directive 2014/35/EU, the directive
for Energyrelated Products 2009/125/EG and the RoHS directive 2011/65/EC.
Ledino
the energy saving company
12
18 W, PF > 0.5
24 W, PF > 0.5
Deutschland GmbH
Spitzahornweg 1
14974 Ludwigsfelde/ Berlin
Germany
IP20
