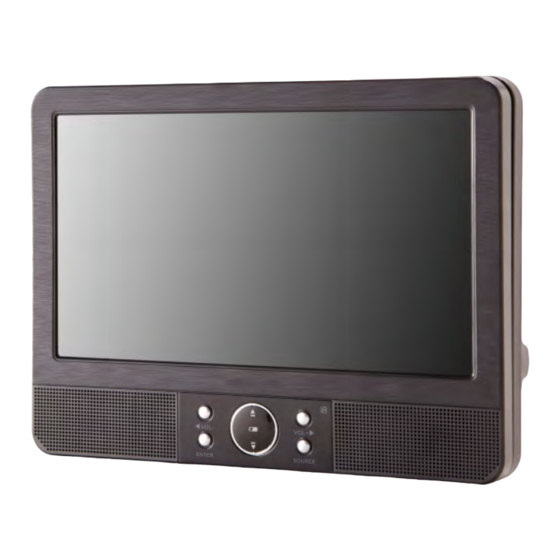

Voyager VYDVD7 Bedienungsanleitung

Vorschau ausblenden
Inhaltsverzeichnis

Werbung

Quicklinks

Instruction Manual
VYDVD7 / VYDVD7-PM / VYDVD7-PP
VYDVD9 / VYDVD9-PM / VYDVD9-PP

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Voyager VYDVD7

  • Seite 1 Instruction Manual VYDVD7 / VYDVD7-PM / VYDVD7-PP VYDVD9 / VYDVD9-PM / VYDVD9-PP...

  • Seite 3: Inhaltsverzeichnis

    SMASHED SCREEN IDENTIFICATION ........................PIXEL STATEMENT ......................TROUBLE SHOOTING This manual covers the following VOYAGER models: 1) VYDVD7: Voyager 7" DVD Player 2) VYDVD7-PM: Voyager 7" DVD Player/Monitor 3) VYDVD7-PP: Voyager 7" DVD Player/Player 4) VYDVD9: Voyager 9" DVD Player 5) VYDVD9-PM: Voyager 9"...

  • Seite 4: Precautions

    PRECAUTIONS Thank you for choosing this VOYAGER portable DVD player. Please read this manual carefully before operation and keep it for future reference. It will be helpful should you encounter any operational problem. WARNING: Do not expose this product to rain, moisture or water under any circumstances, doing so may result in the risk of electric shock or fire.

  • Seite 5: Cautions On Using This Product

    Please read this instruction manual carefully and follow the instructions for safe operation of the player and accessories. Refer all servicing to authorized VOYAGER repair centres only. Do not attempt to repair this product yourself due to risk of electric shock, doing so will render the manufacturers warranty void.

  • Seite 6: Package Contents

    PACKAGE CONTENTS Please check the contents of your purchased model using the guide below. In the event of an item being missing please contact your local VOYAGER dealer. VYDVD7 / VYDVD9 DVD Player Easy Fit Car Mount Car Power Cable...

  • Seite 7: Vydvd7 Series Dvd Player

    VYDVD7 SERIES DVD PLAYER VYDVD7 / VYDVD7-PM / VYDVD7-PP Player /MODE Fixing points for easy fit car mount bracket Fixing points to secure the supplied car mount bracket. See page 15 for further information. Product Rating label Product details, model name etc to be found here.
  • Seite 8 VYDVD7 SERIES DVD PLAYER (CONTD.) VYDVD7 / VYDVD7-PM / VYDVD7-PP Player /MODE OK / Play & Pause Press to confirm selection made within the Setup menu or DVD menu. Press to start / pause / resume playback. IR Headphone LED’s When illuminated the four red LED’s (two LEDs’...
  • Seite 9 VYDVD7 SERIES DVD PLAYER (CONTD.) VYDVD7 / VYDVD7-PM / VYDVD7-PP Player /MODE AV Out socket Used to connect the DVD player to the second DVD player or monitor using the connection cable supplied with the ‘-PM’ (player/monitor) and ‘-PP’ (player/player) models.

  • Seite 10: Vydvd7 Series Monitor

    VYDVD7 SERIES MONITOR VYDVD7-PM Monitor SETUP Fixing points for easy fit car mount bracket Fixing points to secure the supplied car mount bracket. See page 15 for further information. Product Rating label Product details, model name etc to be found here.
  • Seite 11 PLAYER PARTS & CONTROLS (CONTD.) PLAYER PARTS & CONTROLS (CONTD.) VYDVD7 SERIES MONITOR (CONTD.) VYDVD7-PM Monitor SETUP VOL+ Press to increase volume level. Applies to monitor player speakers and earphones. UP / DOWN Press to navigate up and down within the monitor settings menu VOL- Press to decrease volume level.

  • Seite 12: Vydvd9 Series Dvd Player

    VYDVD9 SERIES DVD PLAYER VYDVD9 / VYDVD9-PM / VYDVD9-PP Player /MODE Fixing points for easy fit car mount bracket Fixing points to secure the supplied car mount bracket. See page 15 for further information. Product Rating label Product details, model name etc to be found here. Player stand Pull out stand from the bottom to use DVD player outside of vehicle.
  • Seite 13 VYDVD9 SERIES DVD PLAYER (CONTD.) VYDVD9 / VYDVD9-PM / VYDVD9-PP Player /MODE OK / Play & Pause Press to confirm selection made within the Setup menu or DVD menu. Press to start / pause / resume playback. IR Headphone LED’s When illuminated the four red LED’s (two LEDs’...
  • Seite 14 VYDVD9 SERIES DVD PLAYER (CONTD.) VYDVD9 / VYDVD9-PM / VYDVD9-PP Player /MODE AV Out socket Used to connect the DVD player to the second DVD player or monitor using the connection cable supplied with the ‘-PM’ (player/monitor) and ‘-PP’ (player/player) models.

  • Seite 15: Vydvd9 Series Monitor

    VYDVD9 SERIES MONITOR VYDVD9-PM Monitor Fixing points for easy fit car mount bracket Fixing points to secure the supplied car mount bracket. See page 15 for further information. Product Rating label Product details, model name etc to be found here. Monitor stand Pull out stand from the bottom to use monitor outside of vehicle.
  • Seite 16 VYDVD9 SERIES DVD MONITOR (CONTD.) VYDVD9-PM Monitor VOL+ Press to increase volume level. Applies to monitor player speakers and earphones. UP / DOWN Press to navigate up and down within the monitor settings menu. VOL- Press to decrease volume level. Applies to monitor player speakers and earphones.

  • Seite 17: Easy Fit Car Mount & Installation

    EASY FIT CAR MOUNT PARTS & INSTALLATION The supplied mount has been designed to allow the easy installation into your vehicle. Please follow instructions given below. Car Mount Bracket Locating hole for thumbwheel Thumbwheel will pass through the car mount bracket here. Locating hole for Anti-rotation pin Anti-rotation pin will pass through the car mount bracket here.

  • Seite 18: Car Mount

    EASY FIT CAR MOUNT PARTS & INSTALLATION (CONTD.) Car Mount PUSH Seat / Screen adjustment thumbwheel Loosen thumbwheel to increase / decrease the distance between seat and the screen as required, remembering to re-tighten the thumbwheel before use Screen viewing angle adjustment thumbwheel Loosen this thumbwheel to change the angle of the screen as required, remembering to re-tighten the thumbwheel before use.

  • Seite 19: System Connections

    The DVD player can now be turned on. Please turn the DVD player off before disconnecting the car adaptor or turning off the vehicle. VYDVD7-PM / VYDVD9-PM (Player / Monitor models) For the player / monitor models there is the standard car adaptor connection as described above and also the audio / video / power connection between the player and monitor to be made using the supplied cable.
  • Seite 20 SYSTEM CONNECTIONS (CONTD.) VYDVD7-PP / VYDVD9-PP (Player / Player models) For the player / player models there is the standard car adaptor connection as described on the previous page to one of the two DVD players and also the audio / video / power connection between the two players to be made using the supplied cable.

  • Seite 21: Car Adaptor Fuse Information

    20mm glass fuse 3A unscrew Replacements fuses are readily available, should you have any difficulties please contact you local VOYAGER dealer. INSERTING A DISC To open the disc compartment move the OPEN catch located on the top of the DVD player to the right.

  • Seite 22: Audio / Video Connections

    AUDIO / VIDEO CONNECTONS The VOYAGER range of DVD players have Audio / Video (AV) Out and In functionality. This allows the DVD player to be connected using the an AV cable (sold separately) to an external screen, i.e. a television or an external AV source, i.e. a camcorder.

  • Seite 23: Remote Control

    REMOTE CONTROL This section describes the remote control functions. IR Transmitter SEARCH MUTE SOURCE STEP DISPLAY MENU SUBTITLE ANGLE AUDIO /PBC TITLE ENTER MODE SETUP VOL- VOL+ REPEAT SLOW PROGRAM ZOOM Battery Compartment MUTE Disable the audio output, applies to DVD player speakers, earphones and audio out. SOURCE Press to select media source: DVD / AV IN / MEDIA.
  • Seite 24 REMOTE CONTROL (CONTD.) STOP Press once during playback to stop playback of DVD content, pressing the play/pause button will then resume playback from that point. Press twice to stop playback of DVD content, this will cancel resume function. IR HEADPHONE MODE Press once to turn on the IR transmitter, this will open Channel A.

  • Seite 25: Using The Remote Control

    Note: The remote control is only for use with the DVD player. When using two remote controls with the VYDVD7-PP or VYDVD9-PP (two DVD players) try to avoid operating the second player by angling the remote control towards your DVD...

  • Seite 26: Remote Control Battery Replacement

    REMOTE CONTROL BATTERY REPLACEMENT To replace the battery please follow given instructions and see diagram below. 1. Using a finger nail move the spring clip to the right and hold in that position. 2. Pull the battery tray away from the main body of the remote control. 3.

  • Seite 27: Media Playback

    MEDIA PLAYBACK The VOYAGER Series of DVD players allow playback of video, photo and audio files from USB memory sticks and memory cards. Insert the memory device as shown below, these can only be inserted fully when they are in the correct orientation, i.e. the memory card has contacts facing the front of the player as shown below.

  • Seite 28: Video Compression Formats

    “Home Theatre” option for optimum compression and suitable playback quality upon the player. Maintain the 16:9 ratio for full screen viewing. If your DivX movie is still unable to be played upon the Voyager Player then please change the file extension from .divx to .avi and re-try.

  • Seite 29: Wireless Headphones

    WIRELESS HEADPHONES The VOYAGER range of portable DVD players have an in-built infra-red transmitter to allow wireless use of compatible headphones. The transmitter is set to OFF by default and can be turned on by simply pressing the IR Headphone ( ) button on the remote control.

  • Seite 30: System Setup General

    SYSTEM SETUP - GENERAL Press SETUP on the remote control to access the system setup menus. Using the navigation buttons and enter button, select required option, press SETUP to exit. TV DISPLAY 16:9 ANGLE MARK 4:3 PANSCAN OSD LANGUAGE 4:3 LETTERBOX CLOSED CAPTION 16:9 SCREEN SAVER...

  • Seite 31: Video

    SYSTEM SETUP - VIDEO Video Setup Page BRIGHTNESS Adjust the brightness to best suit viewing environment. Default: 00 CONTRAST Adjust the contrast to best suit viewing environment. Default: 00 Adjust the hue to best suit viewing environment. Default: 00 SATURATION Adjust the saturation to best suit viewing environment.

  • Seite 32: Preferences

    SYSTEM SETUP - PREFERENCES Preference Page TV TYPE Select the TV type for when DVD player is used with a televison. Default: PAL AUDIO Select the preferred audio language. Default: ENG SUBTITLE Select the preferred subtitle language or turn subtitles off. Default: ENG DISC MENU Select the preferred disc language.

  • Seite 33: Password Mode

    SYSTEM SETUP - PASSWORD Password Setup Page PASSWORD MODE Turn Off / On the requirement to enter a password when selecting the Parental Control level. Default: ON PASSWORD Change the default password ‘1234' to one of your choice. This new password will now be used for changing parental control, unless password mode has been turned off.

  • Seite 34: Product Specification

    Rating: 3V Model: Cr2025 Dimensions VOYAGER 7 Series Player: 189 x 144 x 37mm (W/H/D) VOYAGER 7 Series Monitor: 189 x 144 x 21mm (W/H/D) VOYAGER 9 Series Player: 224 x 168 x 37mm (W/H/D) VOYAGER 9 Series Monitor: 224 x 168 x 21mm (W/H/D)

  • Seite 35: Smashed Screen Identification

    Please see below for a sample image of a broken LCD panel for reference. Replacement panels can however be installed by the VOYAGER product support centre after contacting them directly. See www.voyager-systems.co.uk for details.

  • Seite 36: Trouble Shooting

    Check the power LED indicator is illuminated on the DVD player, if not then the car power cable or DC IN socket may have been damaged, please contact your local VOYAGER dealer for further information. The DVD player has blank screen The DVD player will be in Auto-Standby shutdown.
  • Seite 37 Press the SOURCE button on the remote control or the Second DVD player in a MODE button on the DVD player and make sure the DVD VYDVD7-PP / VYDVD9-PP player that has the disc is in is set to DVD mode and that system does not show the image the second player is in AV IN mode.
  • Seite 40 VYDVD-S-IM-EN-DE-A0...
