User Guide (English)
1. Make sure all items listed in the Box Contents are included in
the box.
2. READ SAFETY INSTRUCTION BOOKLET BEFORE USING
THE PRODUCT.
3. Study the connection diagram.
Support
For product registration, visit alesis.com.
For the latest information about this product (system requirements, compatibility information, etc.), visit
alesis.com/samplerack.
For additional product support, visit alesis.com/support.

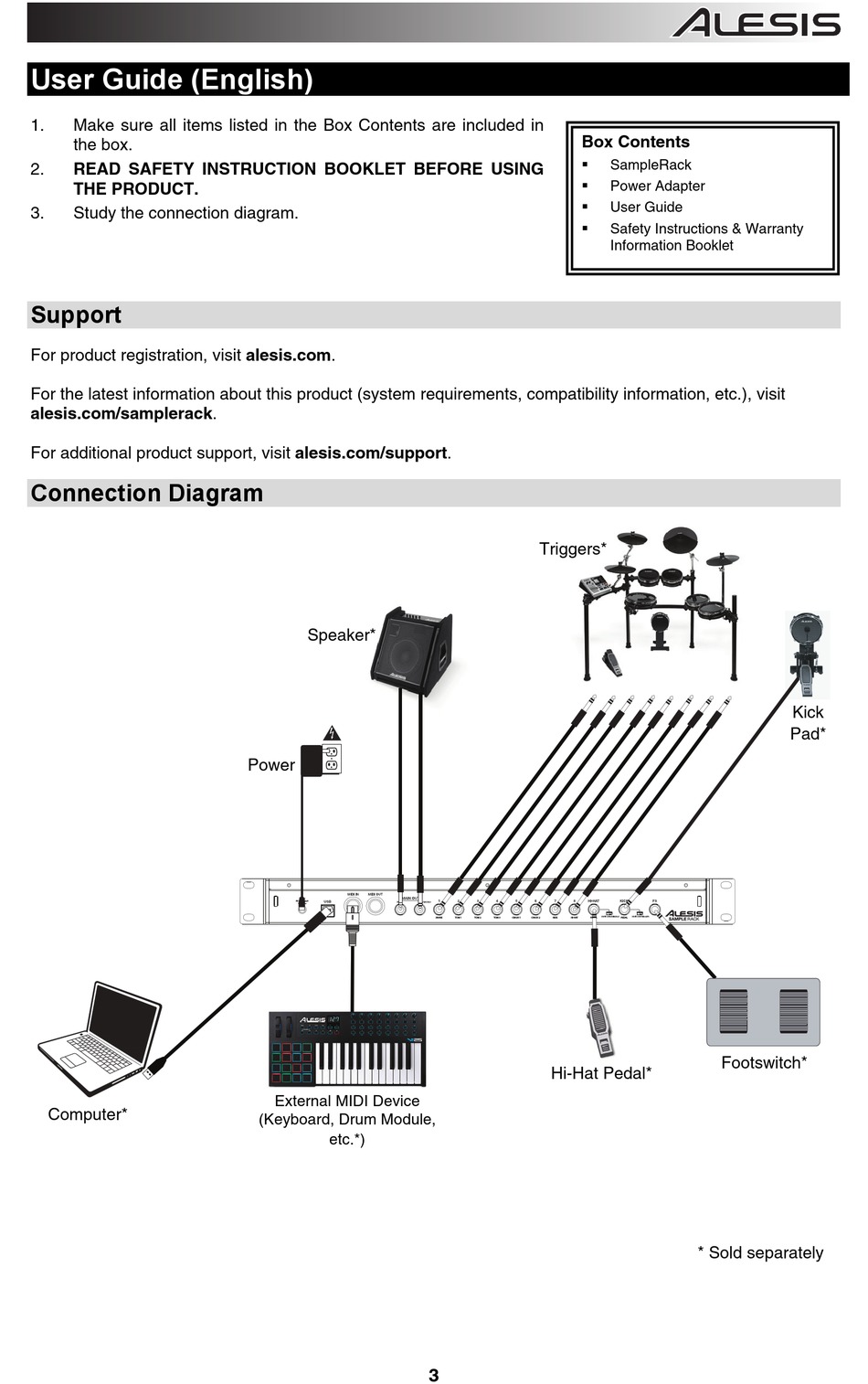

Connection Diagram

Computer*
Speaker*
Power
DC IN
9V DC 500mA
External MIDI Device
(Keyboard, Drum Module,
etc.*)
Box Contents




Triggers*
SNARE TOM 1 TOM 2 TOM 3 CRASH 1 CRASH 2 RIDE HI-HAT PEDAL
Hi-Hat Pedal*
3
SampleRack
Power Adapter
User Guide
Safety Instructions & Warranty
Information Booklet
PEDAL
Footswitch*
* Sold separately
Kick
Pad*
