size of bolt.
Size of Bolt
M10-M12
M12-M16
M14-M16
M18-M24
Do not use tool if switch does not turn it on or
off. Any tool that connot be controlled with the
switch is dangerous and must be repaired.
Disconnect the plug from the power source
before making any adjustments, changing
accessories,or storing the tool. Such preventive
safety measures reduce the risk of starting the
tool accidentally.
Store idle tools out of reach of children and
other untrained persons. Tools are dangerous in
the hands of untrained users.
Maintain tools with care. Keep cutting tools
sharp and clean. Properly maintained tools with
sharp cutting edges are less likely to bind and
are easier to control.
Check for misalignment or binding of moving
parts,breakage of parts, and any other condition
that may affect the tools operation. If damaged,
have the tool serivced before using. Many
accidents are caused by poorly maintained
tools.
Use only accessories recommended by the
manufacturer for your model. Accessories that
are suitable for one tools, may become hazards
when used with another tool.
Addition
Waring: (1) Please stop the tool when you want
to change the running direction and change
by pressing switch. (2) The troque will vary
bigger from longer running time. When you
want to assemble or unassemble a bolt, you
want keep the tool running more than 5S. But
when keeping running more than 5S, it is not
meaning the toruqe will be bigger and bigger.
Please refer to the diagram(1), this clause is not
suit for variable torque wrench.
8
Torque(N.M)
40-80
100-200
120-200
200-350

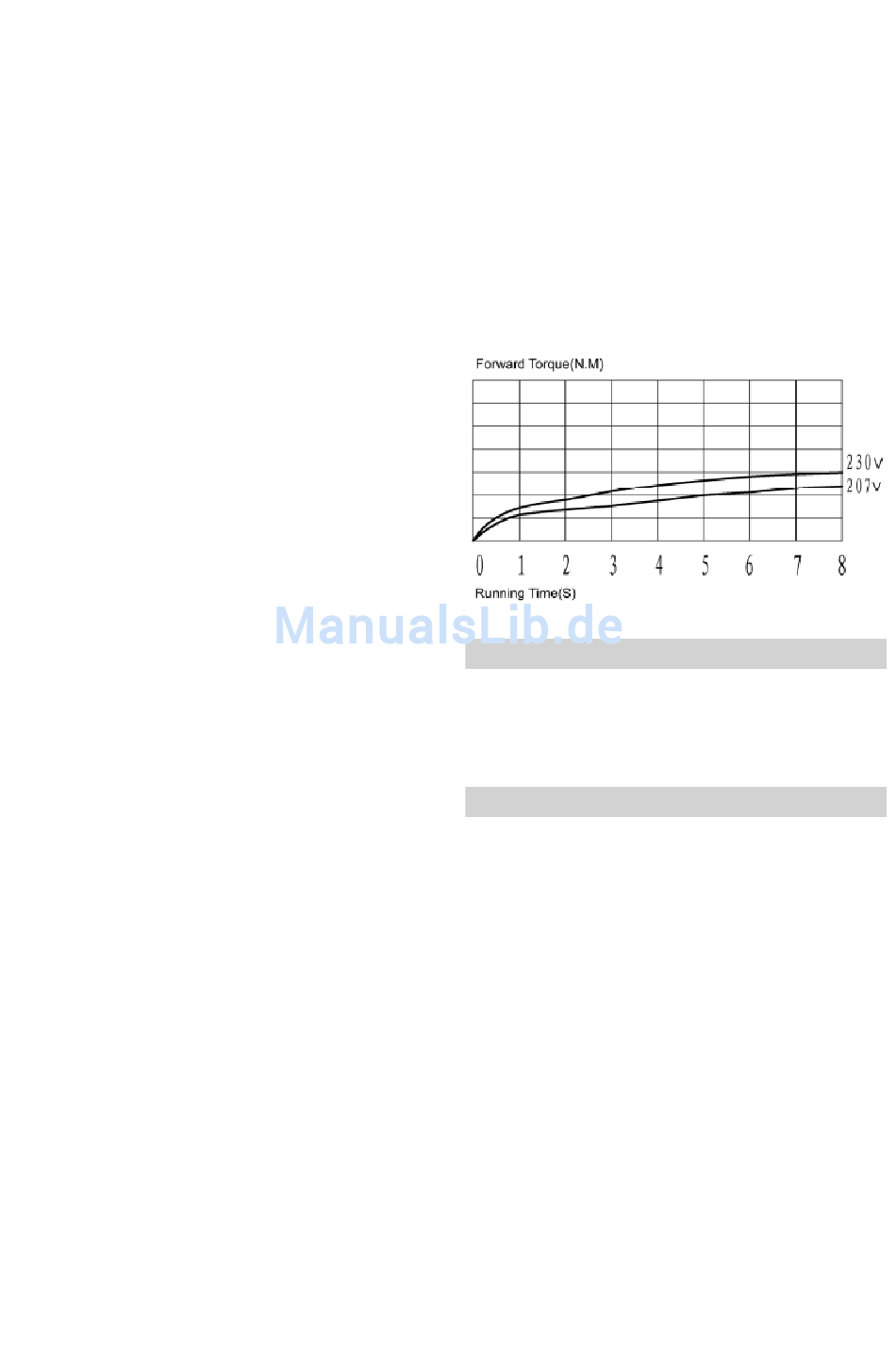

Diagram(1)
Remark:It is suit for unvariable torque wrench
1. When the voltage is 10% less than rated,will
result in the forward torque decreasing rapidly.
(Please refer to diagram(1)).
2. When choose wrong sockets also can result in
torque decreasing.
3. The torque will vary from different size of bolt.
Layout (B1)
1. ON/OFF switch - Reversing switch
2. Square drive mount (mounting shaft)
APPLICATION
Tools can be used for tire changing,shock
absorber replacement, exhaust system work,
lawn mower repair and small engine work,
assembling and unassembling the bolt and nut.
Switch On/Off (B2)
Your tool starts or stops by depressing and
releasing the rocker switch. Press the bottom
of the switch to go forward(clockwise). Press
the top of the swicth to reverse(go counter-
clockwise).
Install/Remove sockets or Accessories (B3)
To install a socket on the anvil, align the hole of
the socket with the anvil and push down firmly.
To remove a socket form the anvil, pull the
socket out firmly.
