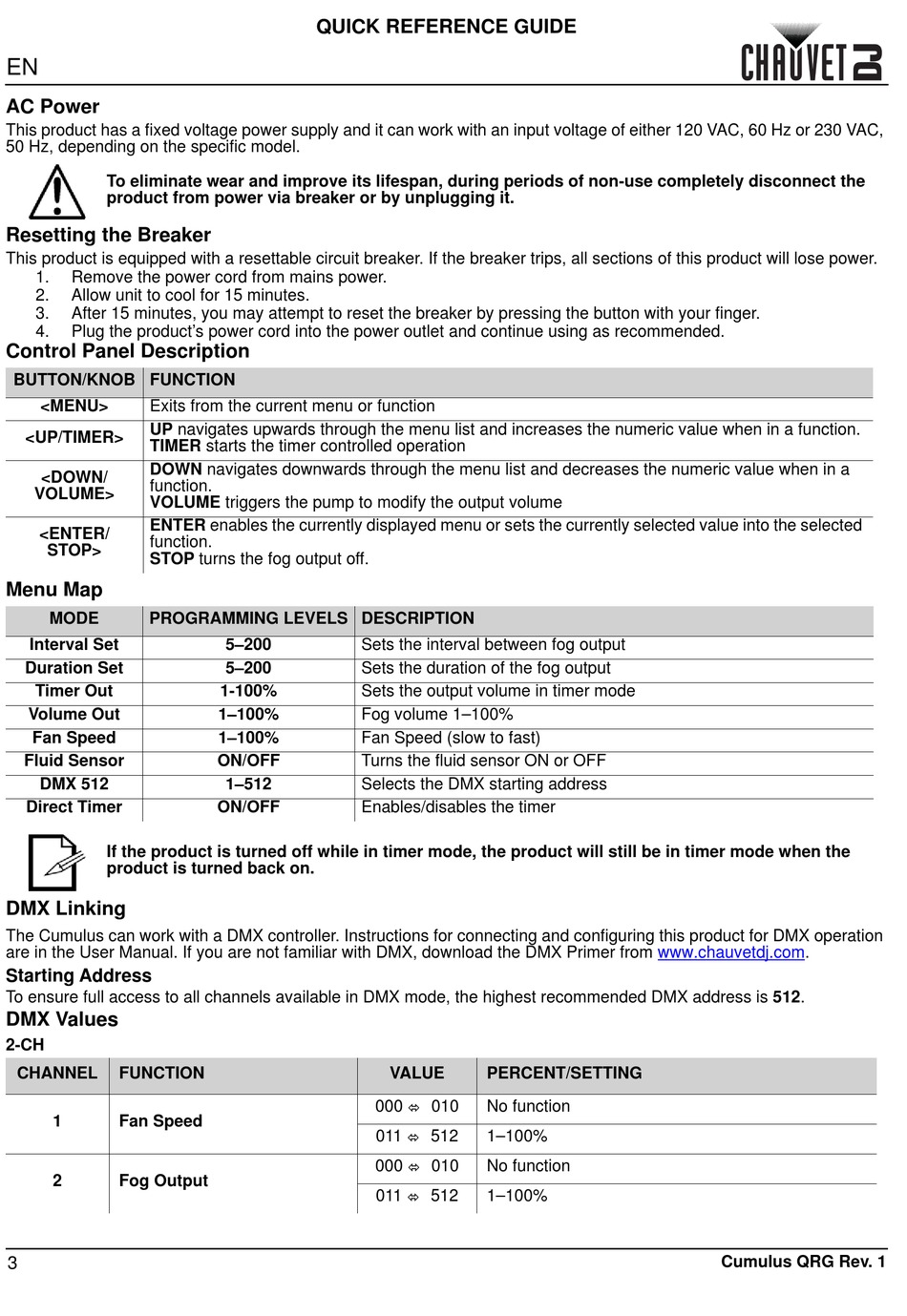

Chauvet DJ Cumulus Schnellanleitung Seite 4

EN
AC Power
This product has a fixed voltage power supply and it can work with an input voltage of either 120 VAC, 60 Hz or 230 VAC,
50 Hz, depending on the specific model.
To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
Resetting the Breaker
This product is equipped with a resettable circuit breaker. If the breaker trips, all sections of this product will lose power.
1. Remove the power cord from mains power.
2. Allow unit to cool for 15 minutes.
3. After 15 minutes, you may attempt to reset the breaker by pressing the button with your finger.
4. Plug the product's power cord into the power outlet and continue using as recommended.
Control Panel Description
BUTTON/KNOB FUNCTION
<MENU> Exits from the current menu or function
UP navigates upwards through the menu list and increases the numeric value when in a function.
<UP/TIMER>
TIMER starts the timer controlled operation
DOWN navigates downwards through the menu list and decreases the numeric value when in a
<DOWN/
function.
VOLUME>
VOLUME triggers the pump to modify the output volume
ENTER enables the currently displayed menu or sets the currently selected value into the selected
<ENTER/
function.
STOP>
STOP turns the fog output off.
Menu Map
MODE PROGRAMMING LEVELS DESCRIPTION
Interval Set
Duration Set
Timer Out
Volume Out
Fan Speed
Fluid Sensor
DMX 512
Direct Timer
If the product is turned off while in timer mode, the product will still be in timer mode when the
product is turned back on.
DMX Linking
The Cumulus can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation
are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.
Starting Address
To ensure full access to all channels available in DMX mode, the highest recommended DMX address is 512.
DMX Values
2-CH
CHANNEL FUNCTION
1 Fan Speed
2 Fog Output
3
QUICK REFERENCE GUIDE
5–200 Sets the interval between fog output
5–200 Sets the duration of the fog output
1-100% Sets the output volume in timer mode
1–100% Fog volume 1–100%
1–100% Fan Speed (slow to fast)
ON/OFF Turns the fluid sensor ON or OFF
1–512 Selects the DMX starting address
ON/OFF Enables/disables the timer
000
011
000
011
VALUE PERCENT/SETTING
010 No function

512 1–100%

010 No function

512 1–100%

