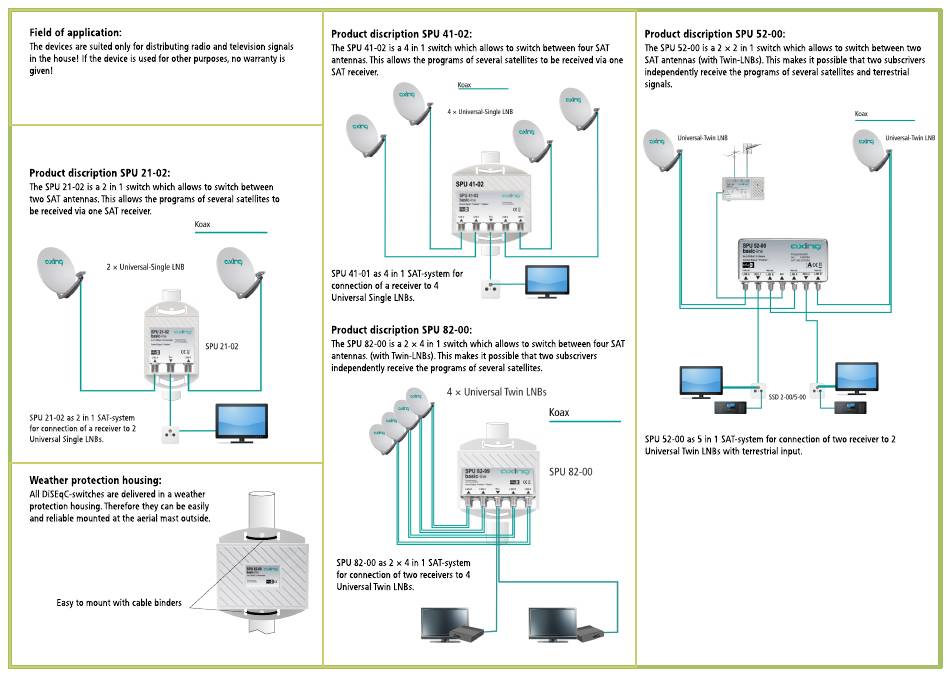

Field of application:
Thedevicesare suited only for distributing radio andtelevision signals
in the house! If the deviceis usedfor other purposes,no warranty is
given!
Product discription SPU21-02:
The SPU 21-02 is a 2 in 1 switch which allows to switch between
two SATantennas.Thisallows the programsof severalsatellitesto
be received via one SAT receiver.
2 x Universal-Single LNB
•u 21-02
SPU 21-02
U SP 21-02as2 in 1 SAT-system
for connection of a receiver to 2
Universal S ingleLNBs.
Weather protection housing:
All DiSEqC-switches a re deliveredin a weather
protection housing.Thereforethey can be easily
and reliable mounted at the aerial mast outside.
Easyto mount with cable binders
Product discription SPU41-02:
The SPU 41-02 is a 4 in 1 switch which allows to switch between four SAT
antennas.Thisallows the programsof severalsatellitesto be receivedvia one
SAT receiver.
Koax
4 x Universal-Single LNB
SPU41-02
4142
SPU 41-01as4 in 1 SAT-system f or
connection of a receiver to 4
UniversalSingleLNBs.
Product discription SPU82-00:
The SPU 82-00 is a 2 x 4 in 1 switch which allows to switch between four SAT
antennas.(with Twin-LNBs). Thismakesit possiblethat two subscrivers
independentlyreceivethe programsof severalsatellites.
4 x Universal Twin LNBs
82-99
SPU82-00 as 2 x 4 in 1 SAT-system
for connection of two receivers to 4
Universal Twin LNBs.
Product discription SPU 52-00:
The SPU 52-00 is a 2 x 2 in 1 switch which allows to switch between two
SATantennas(with Twin-LNBs). Thismakesit possiblethat two subscrivers
independentlyreceivethe programsof severalsatellitesand terrestrial
signals.
Universal-Twin LNB
Koax
SPU52-00 as 5 in 1 SAT-system for connectionof two receiverto 2
UniversalTwin LNBswith terrestrial input.
SPU 82-00
Koax
Universal-Twin LNB
ox
bask-ine
SSD 2-00/5-00
