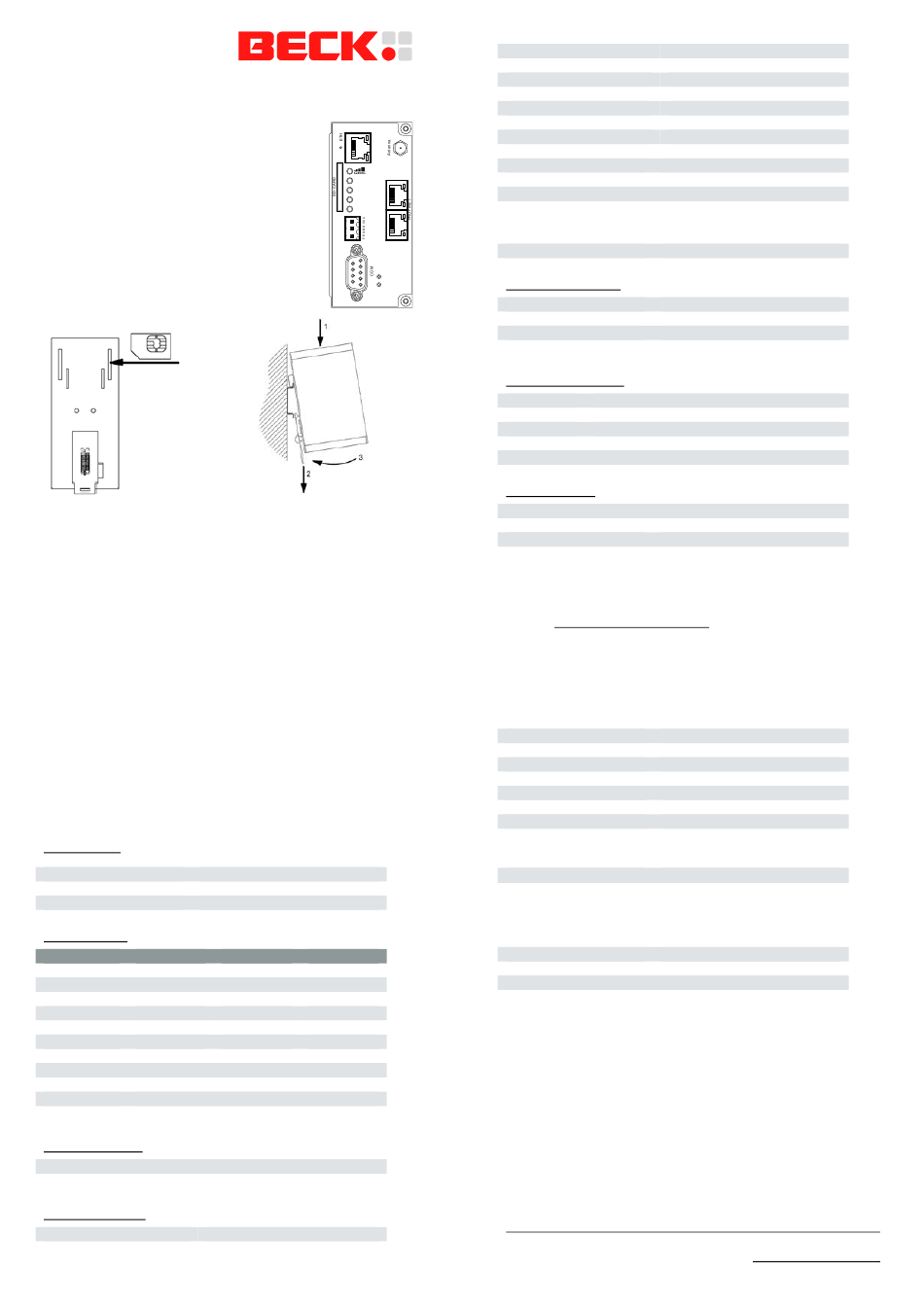

com.tom RADIO-UMTS 9.1 – Start-up Guide
In widely distributed systems or in environments
without network infrastructure wireless solutions
are required for the simplest telecontrol/remote
maintenance functions.
The communication mechanism of the com.tom
devices ensures problem-free use in all wireless
networks without the need for special SIM cards.
Device may only be put into service and
operated by qualified personnel. The device is
designed for an installation on a grounded 35
mm DIN rail in dry rooms.
Insert the SIM card in the device's rear before the installation on the
DIN rail. The device must be switched off.
Never use the device in areas where the operation of wireless
equipment is prohibited. The location for the antenna must guaran-
tee the recommended radiological limits (be at least 20 cm from
persons and other antennas).When the antenna is installed out-
doors the lightning protection standard VDE V0185 must be com-
plied with. The EMC lightning protection zone concept must be
observed. The device must be switched off during work on the
antenna. It cannot be guaranteed, that there will not be any harmful
interference for other devices. In case of interferences install the
device or the antenna in another location.
After the installation the housing of the device is connected with
functional earth.
The power supply must be a grounded circuit (PELV).
The power supply must be a limited power source according to
EN60950-1 cap.2.5 or the device must be provided with an anti-
surge fuse of 2 A.
Pin Assignment
Power Supply
FE
GND
VCC
Serial Interface
RS232
Pin 1 NC
Pin 2 RxD
Pin 3 TxD
Pin 4 NC
Pin 5 GND
Pin 6 NC
Pin 7 RTS
Pin 8 CTS
Pin 9 NC
Housing
Ethernet Interface
Green LED
Yellow LED
PROFINET Status
Network Status LED
Off
Beck RS232 / RS485 / RS422
Functional earth
Ground
24 VDC
RS485 RS422
A(-/Y) A(TxD)
NC NC
NC NC
NC A'(RxD)
GND GND
B(+/Z) B(TxD)
NC NC
NC NC
NC B'(RxD)
Connected to functional earth
Link indication
Activity indication
Description
Not Initialized
Green
Green, 1 flash
Green, blinking
Red
Red, 1 flash
Red, 2 flashes
Red, 3 flashes
Module Status LED
Off
3G
Green
Connect
Status A Green, 1 flash
Status B
Red
Power
Alternating Red/Green
Module Status
PROFINET Interface
Network Status
LED State
Off
Green
Green, flashing
Network Status LEDs
GSM
Connect
Status A
Status B
Power
Other Interfaces
SD card interface
Antenna connector
SIM card interface
Getting Started
Wire the com.tom device according to the technical data.
Afterwards get the Getting Started documentation WEB-
PLC at http://www.com-tom.de/start and follow the steps
described there to put your com.tom device into operation.
General Data
Size (W x L x H)
Operating temperature
Electrical shock
Protection rating
EMC emission
EMC immunity
Compliance
Electrical Data
Supply voltage
Active current
Scope of supply
1 Piece
1 Piece
1 Piece
1 Piece
Online (RUN)
Online (STOP)
Blink
Fatal event
Station Name error
IP address error
Configuration error
Description
Not Initialized
Normal Operation
Diagnostic Event(s)
Exception error or Fatal event
(this indication is combined with
a red network status LED)
Firmware update
Description
No Link
Link
Activity
Modem is initialized
GPRS internet connection successful
Communication with PORTAL successful
Diagram loaded (on) / executed (flashing)
Device is powered
MMC/SD card
SMA connector
SIM card
46 x 103 x 63 mm
0 bis 55 °C
Class III
IP20
IEC 61000-6-4
IEC 61000-6-2
CE, RoHS
24 VDC (±15 %)
< 120 mA (without PROFINET
connection)
com.tom Radio-UMTS 9.1
Start-up Guide
Connector 3-pin
Label MAC address
Copyright © 2016 Beck IPC GmbH
http://www.com-tom.de
