Kemppi ArcTimer Schnellstartanleitung

Kemppi ArcTimer
introduction
Kemppi ArcTimer is intended for measuring the arc time of
welding machines. The device is connected to the welding
or earthing cable where it measures the arc time based on
the welding current in the cable. The device display indicates
how long the arc has been on since the previous reset.
installation instructions
Follow these instructions to attach the device to the cable in
which the welding current is conveyed, such as the earthing
cable beside the machine.

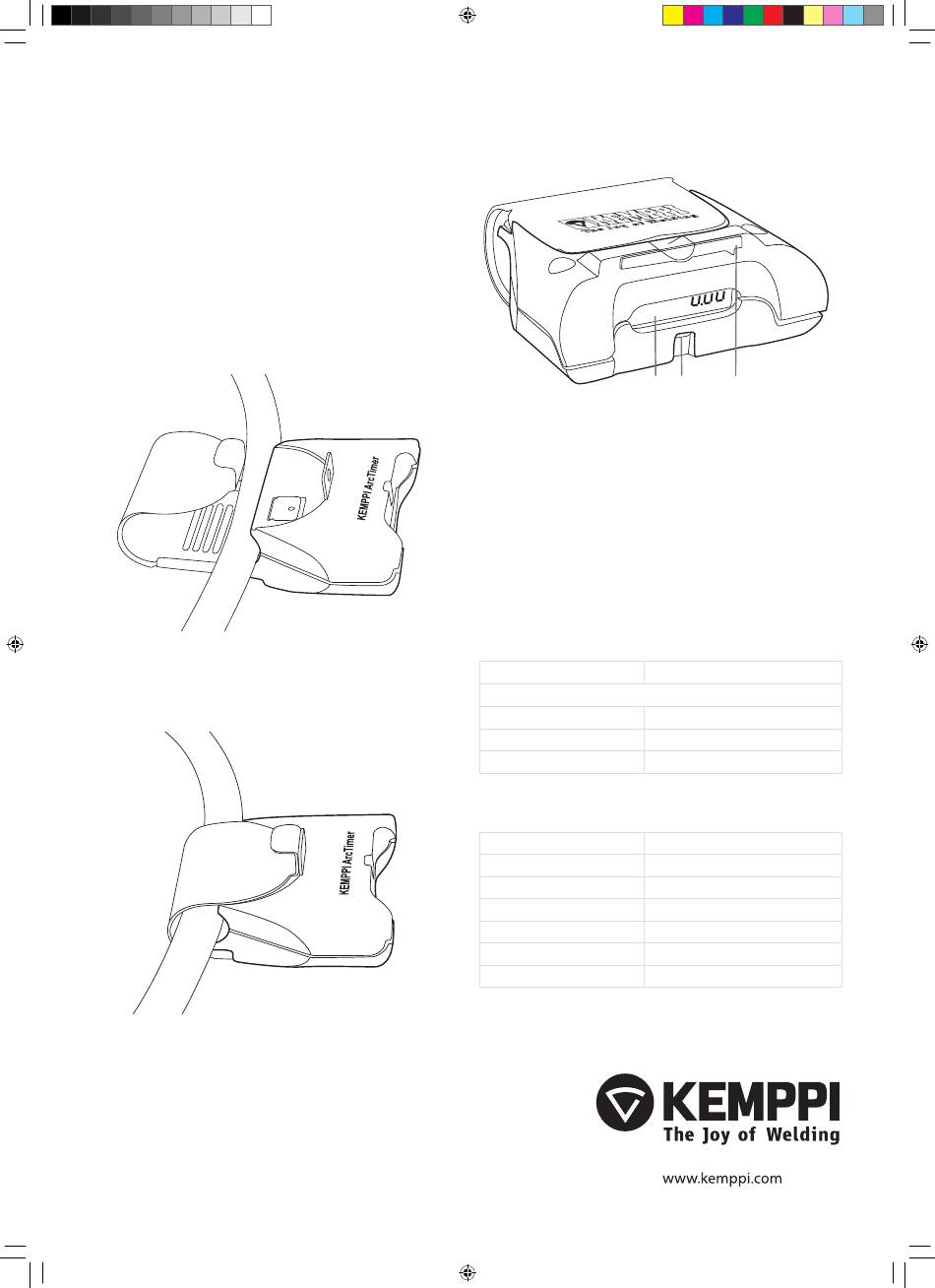

Put the device against the cable so that the groove at the
back of the chassis is pressed against the cable. The cable
thickness may be 50 – 95 mm2.
Push the magnetic circuit piece in place over the device so
that the cable remains between the device and the magnetic
circuit piece.
You can secure the device to the cable by connecting the
front and rear parts with a lock as shown in the picture. (The
lock is not included in the delivery.)
arctimer_1910290_1033.indd 1
Kemppi ArcTimer / 6209200
machine use
1.
1. Display
2. Reset button
3. Protective plate
• When the welding starts, the device starts storing the
welding time, which is shown on the display as hours
and hundredths of hour.
• The device increases the arc time shown in the display
until you reset the device with the button under the
screen.
• You can turn the protection plate in front of the display
to get a clean area over the display.
Ordering information
ArcTimer ordering code 6209200
Spare part items
Protective plate W003231
Timer card A001 Arc Timer SP003238
Magnetic circuit piece SP003230
Technical specifications
Measurable current range 20–500 A
Cable thickness 50–95 mm2
Battery lifetime, minimum 5 years
Protection class IP23
Operating temperature range -10...+50 °C
External dimensions (L x W x H) 92 x 82 x 32 mm
Weight 215 g
