BASIC 3.0S – Start-up Guide
The com.tom BASIC devices communicate
with the web portal via Ethernet and the exist-
ing network infrastructure. The communication
mechanism has a low data volume and can be
integrated easily in the existing network infra-
structure. With the integrated switch and the
auxiliary functions com.tom a compact VPN
and NAT cheap local network structure to
access controls and devices is given. The
Device may only be put into service and operated by quali-
fied personnel.

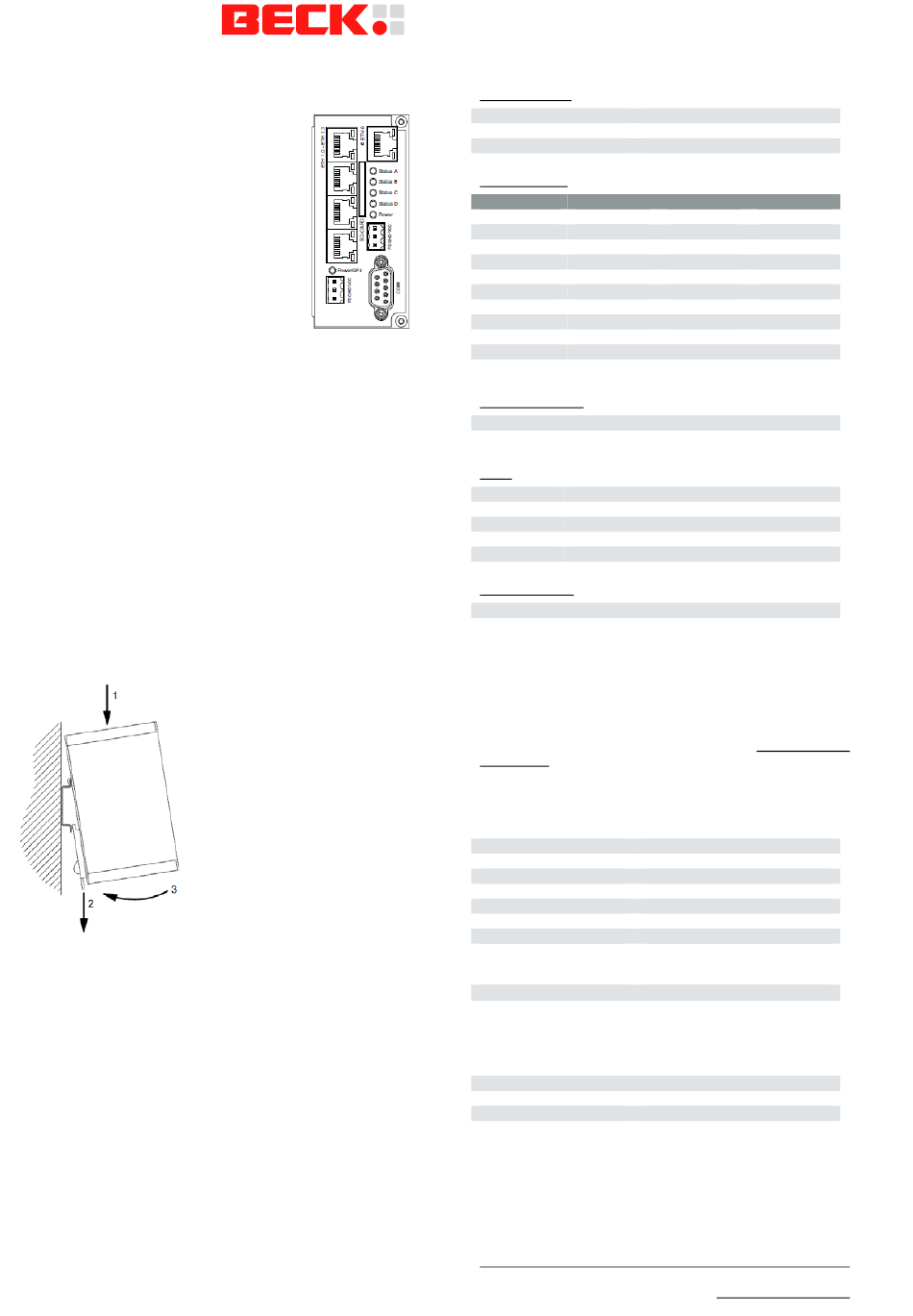

The device is designed for an installation on a grounded 35 mm
DIN Rail in dry rooms.
After the installation the housing of the device is connected with
functional earth.
The power supply must be a grounded circuit (PELV).
The power supply must be a limited power source according to
EN60950-1 cap. 2.5 or the device must be provided with an
anti-surge fuse of 2 A.
By using the GPJ power supply connector (labeled in white) the
power supply for a com.tom GRAPHIC with a standard Ethernet
cable via Port ETH1.3 / GPJ is given. This can only be used
with com.tom GRAPHIC devices. Otherwise do not connect the
GPJ power supply.
Pin Assignment
Power Supply´s
FE Functional earth
GND Ground
VCC 24 VDC
Serial Interface
RS232
Pin 1 NC
Pin 2 RxD
Pin 3 TxD
Pin 4 NC
Pin 5 GND
Pin 6 NC
Pin 7 RTS
Pin 8 CTS
Pin 9 NC
Housing Connected to functional earth
Ethernet Interface
Green LED Link indication
Yellow LED Activity indication
LEDs
Status A Freely programmable
Status B Freely programmable
Status C Freely programmable
Status D Freely programmable
Power Device is powered
Other Interfaces
SD card interface MMC/SD memory cards
SIM card interface no function
Getting Started
Wire the com.tom device according to the technical data. Get
the Getting Started documentation
tom.de/start and follow the steps described there to put your
com.tom device into operation.
General Data
Size (W x L x H) 46 x 103 x 62 mm
Operating temperature 0 to 55 °C
Electrical shock Class III
Protection rating IP20
EMC emission IEC 61000-6-4
EMC immunity IEC 61000-6-2
Compliance CE, RoHS
Electrical Data
Supply voltage
24 VDC (±15 %)
Active current < 80 mA
≤ 0.5 A / GPJ
Scope of supply
1 Piece com.tom BASIC 3.0S
1 Piece Start-up guide
2 Piece Connector 3-pin
Copyright © 2015 Beck IPC GmbH
