Tatze Manual Refresh Kit Schnellstartanleitung Seite 2

Manual Refresh Kit suitable for
LINK Composite, LINK, LINK TI, TWO-FACE Composite, CONTACT CNC
Refresh Kit consisting of:
- Ball bearing (4x)
- Plain bearing (2x)
- Weals (4x)
- Grease (1x)
- Hexagonal PIT (1x)
- Tool with washers (1x)

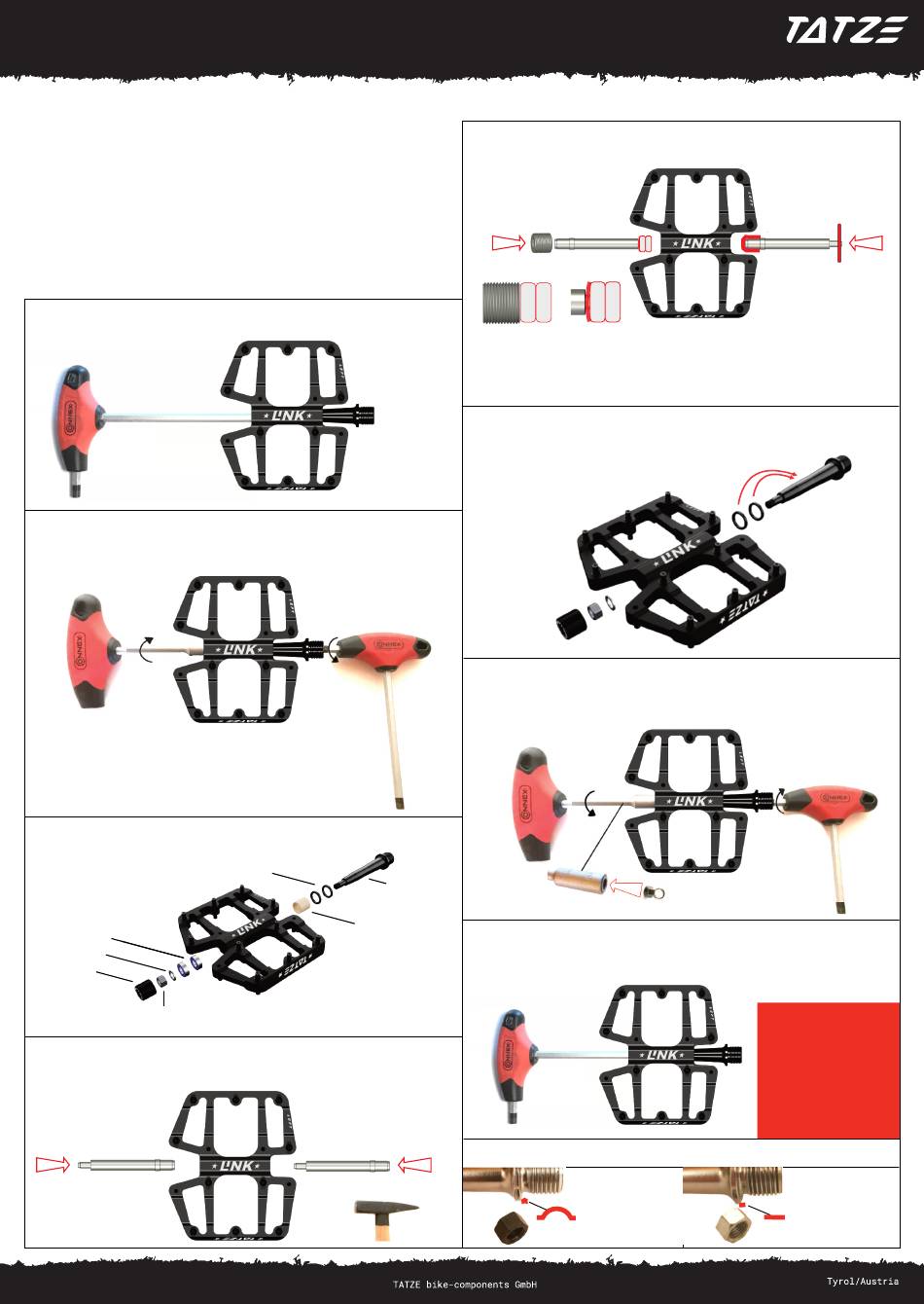

1. Dismount Axle
1.1. Unscrew the end cap with an Allen key. Hold the
pedal while doing so.
1.2. Unscrew the axle in the opposite direction
using the hexagon and Allen key included.
Hexagon PIT
ATTENTION!
Left pedal => RIGHT THREAD!
Right pedal => LEFT SPEED!
1.3. Bearing and axle set in disassembled status
Sealings
Ball
Bearings
Washer
Endcap
Nut
2.1. Carefully tap out the ball bearing and then
clean the socket properly.
Manual Version 230330
2. Press in bearings & assembly
2.1. Slide the plain bearing over the tool with the
bevel first and press it in straight by hand with the
washer.
2.2.
in the ball bearing (A). Press in by hand and screw in
completely with end cap (B). Then remove the end
cap again.
2.3. Slide the seals onto the axle, put some
grease into the plain bearing bushing and onto
the seals and slowly slide the axle into the
pedal body.
2.4. Insert nut and apply washer with a little
grease. Then tighten with hexagon and Allen key in
opposite direction with approx. 10 Nm.
Allen key
Axle
Plain
bearing
2.2.
B A
Place the convex washer on the tool and push
2.5 Screw in the end cap with an Allen key and
approx. 10 Nm on aluminum pedals and 2.5 Nm on
composite pedals. Hold the pedal while doing so.
The 1x1 of pedal sides
L
eft axle
with notch &
Black nut.
2.1.
FINAL CHECK!
Axles must
rotate well and
be firmly
connected to
the pedal body.
DONE!
R
ight axle
without
notch &
silver nut.
