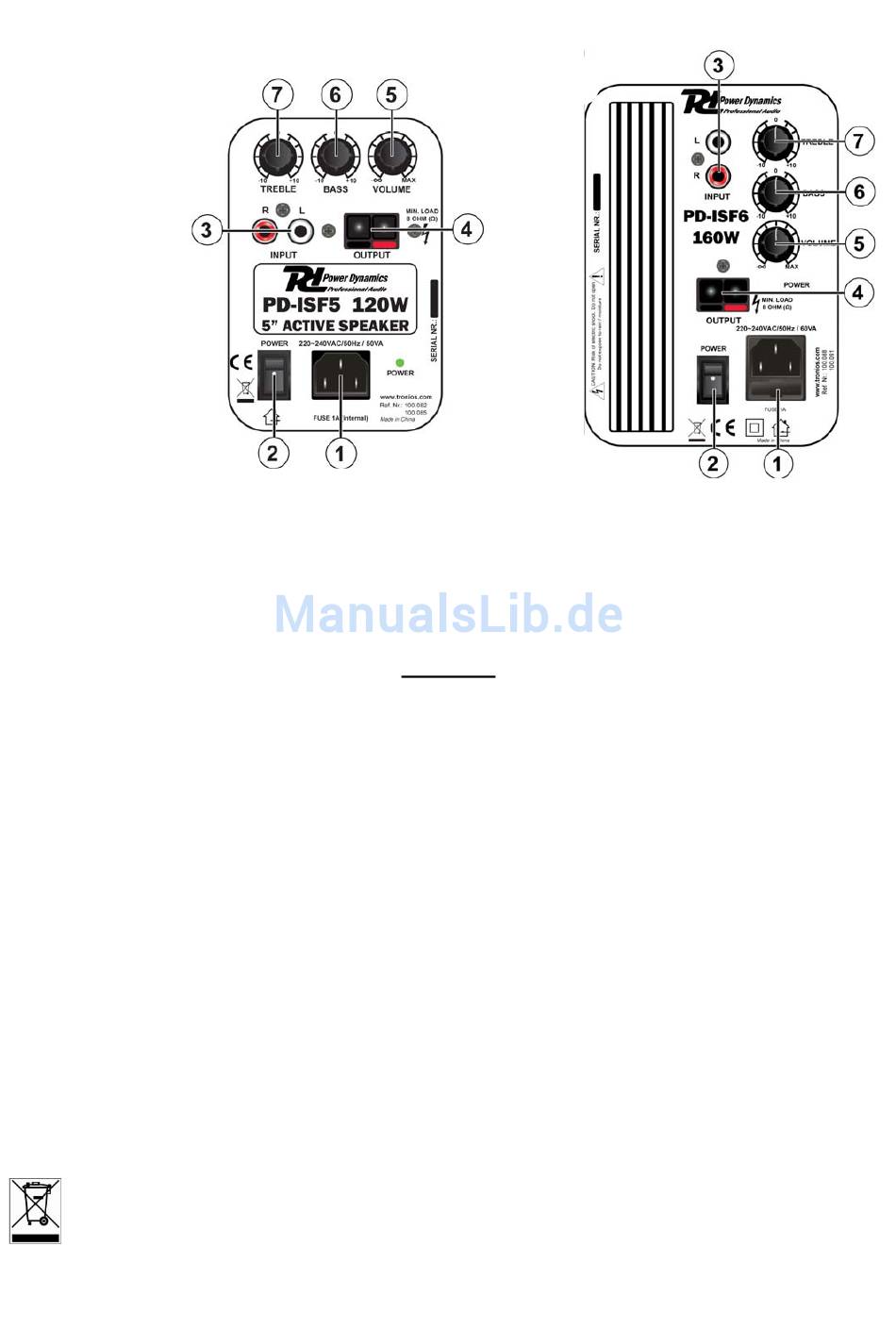

INPUT PANEL
1 Power entrance
2 Power Switch
3 RCA Line input
4 Speaker output
Keep this device away from rain and moisture! Never open the housing!
For your own safety, please read this user manual carefully before you initial start-up.
Every person involved with the installation, operation and maintenance of this speaker-system has to :
-be qualified
-follow the instructions of this manual
-consider this manual to be part of the total product
-keep this manual for the entire service life of the product
-pass this manual on to every further owner or user of the product
Specifications:
Electr(on)ic products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your
dealer about the way to proceed.
Specifications:
Order nr:
Frequency Range:
Power:
Power Peak:
Sensitivity
LF driver:
HF driver:
Input connections:
Level controls:
Power requirements:
Dimensions (W x H x D):
Weight:
5 Volume adjust
6 Bass adjust
7 Treble adjust
CAUTION!
PD-ISF5
100.082 / 100.085
60 Hz – 18 kHz
2x 30 W
2x 60 W
89dB
5" Polypropylene
0.75" Mylar dome
2x RCA
Volume, Treble, Bass
220-240Vac ~ 50 Hz
256 x 168 x 166 mm
3,4 kg per set
PD-ISF6
100.088 / 100.091
55 Hz – 20 kHz
2x 40 W
2x 80 W
89dB
6,5" Polypropylene
1" Mylar dome
2x RCA
Volume, Treble, Bass
220-240Vac ~ 50 Hz
306 x 197 x 209 mm
8.2 kg per set
