Repairs

Replacing glass

1. Open the door
2. Remove the 4 screws on the inside of the door
3. Remove the 2 glass holders
4. Carefully take the glass out of the door
5. Check to see whether the strap in the door is not damaged
and that it is connected. If not, secure the strap with heat-
resistant sealant or replace it entirely.
6. Put in the new glass, beware of sharp edges on the glass
7. Put the various parts back in place

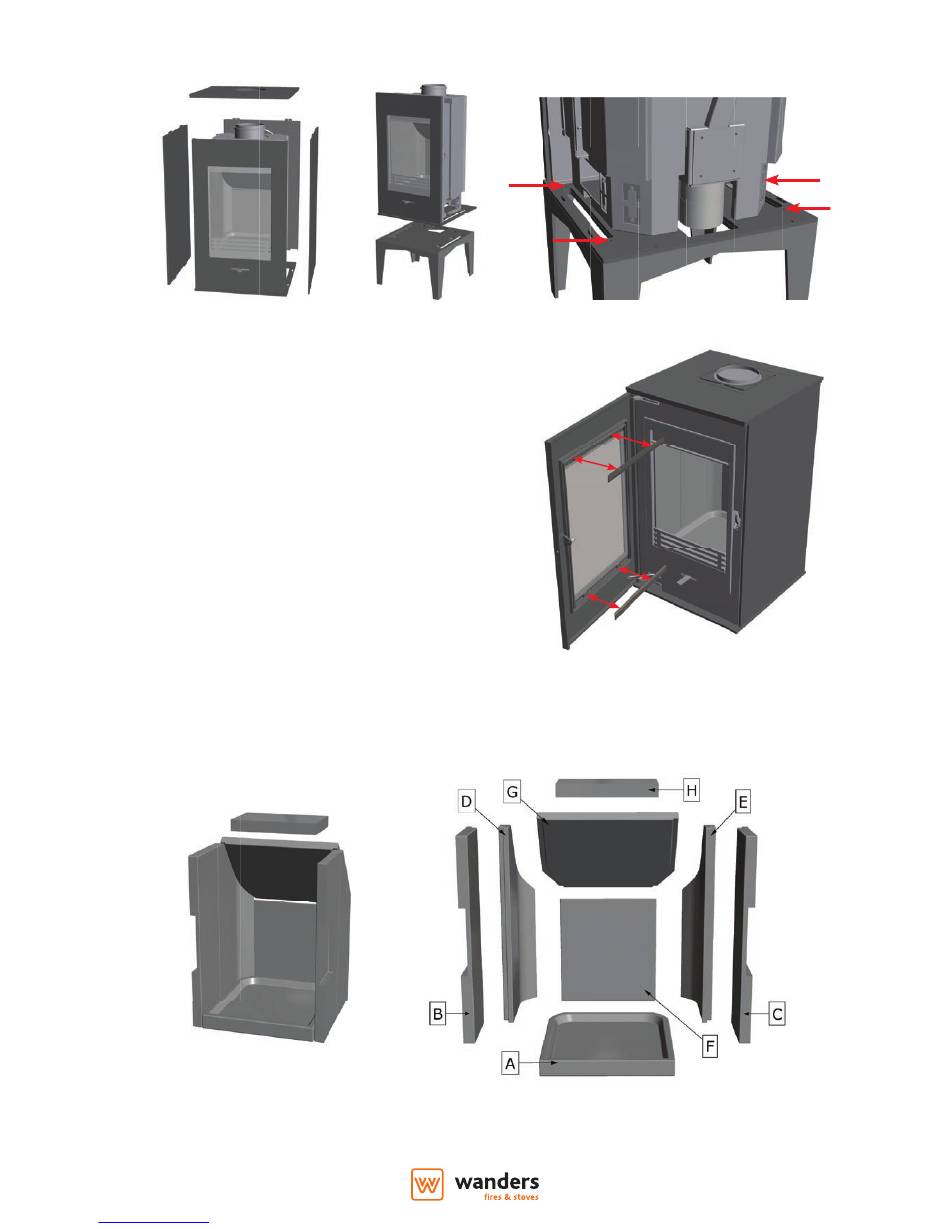

Replacing the combustion chamber.

Please follow the below steps in their exact order to remove the
panels from the furnace;
1. Remove the baseplate (A)
2. Remove front left (B) and front right (C) panels
3. Slightly lift the large baffl e plate (G) and remove the back left plate (D)
4. Remove the large baffl e plate (G)
5. Remove the back right plate (E)
6. Remove the back panel (F)
7. Remove the small baffl e plate (H).
