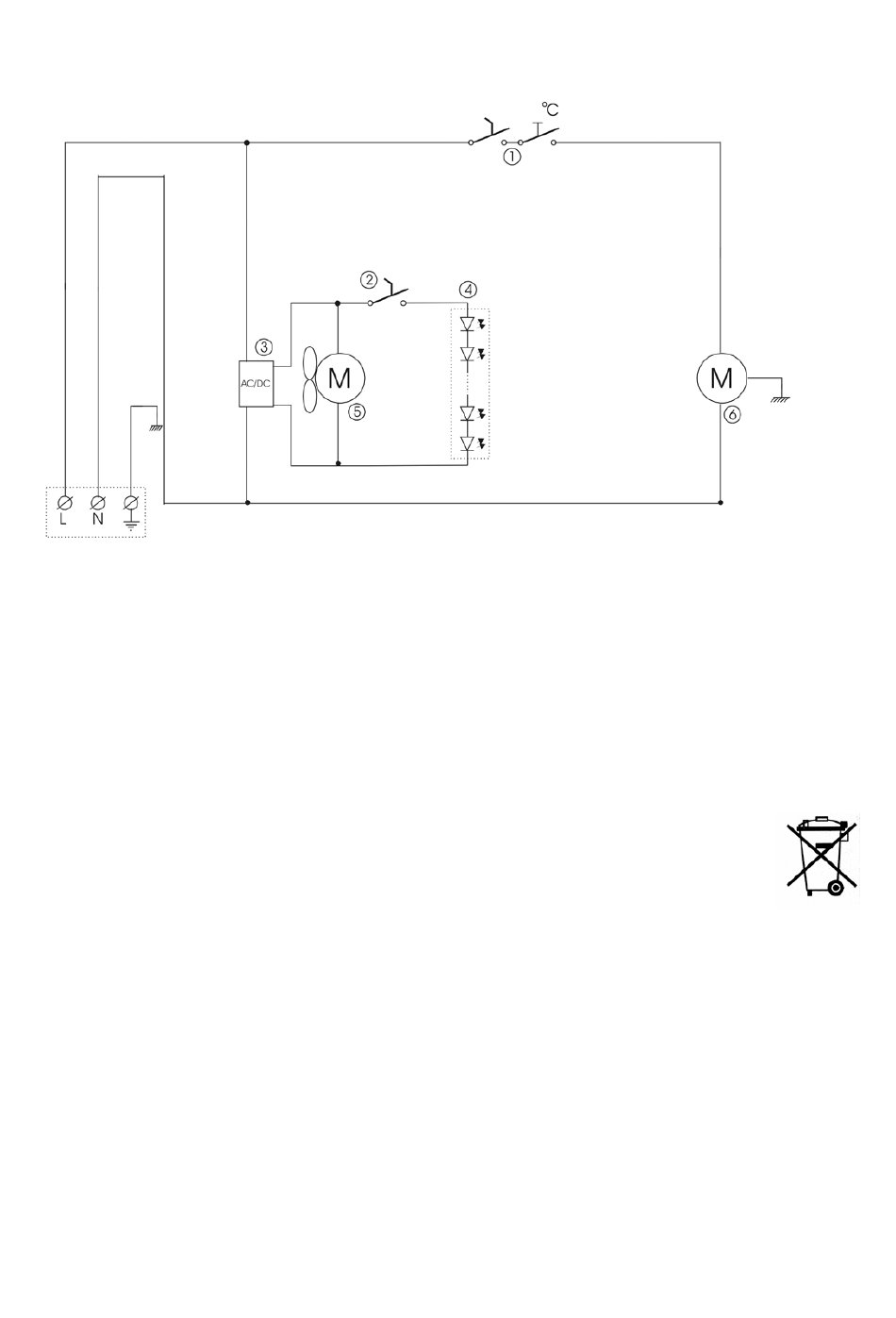

CIRCUIT DIAGRAM

① Thermostat
② Light switch
③ LED power supply
④ LED light
⑤ Fan (BC145WF only)
⑥ Compressor
Disposal
Disposal of the cabinet must take place in an environmentally correct way. Please note existing regulation on
disposal. There may be special requirements and conditions which must be observed.
