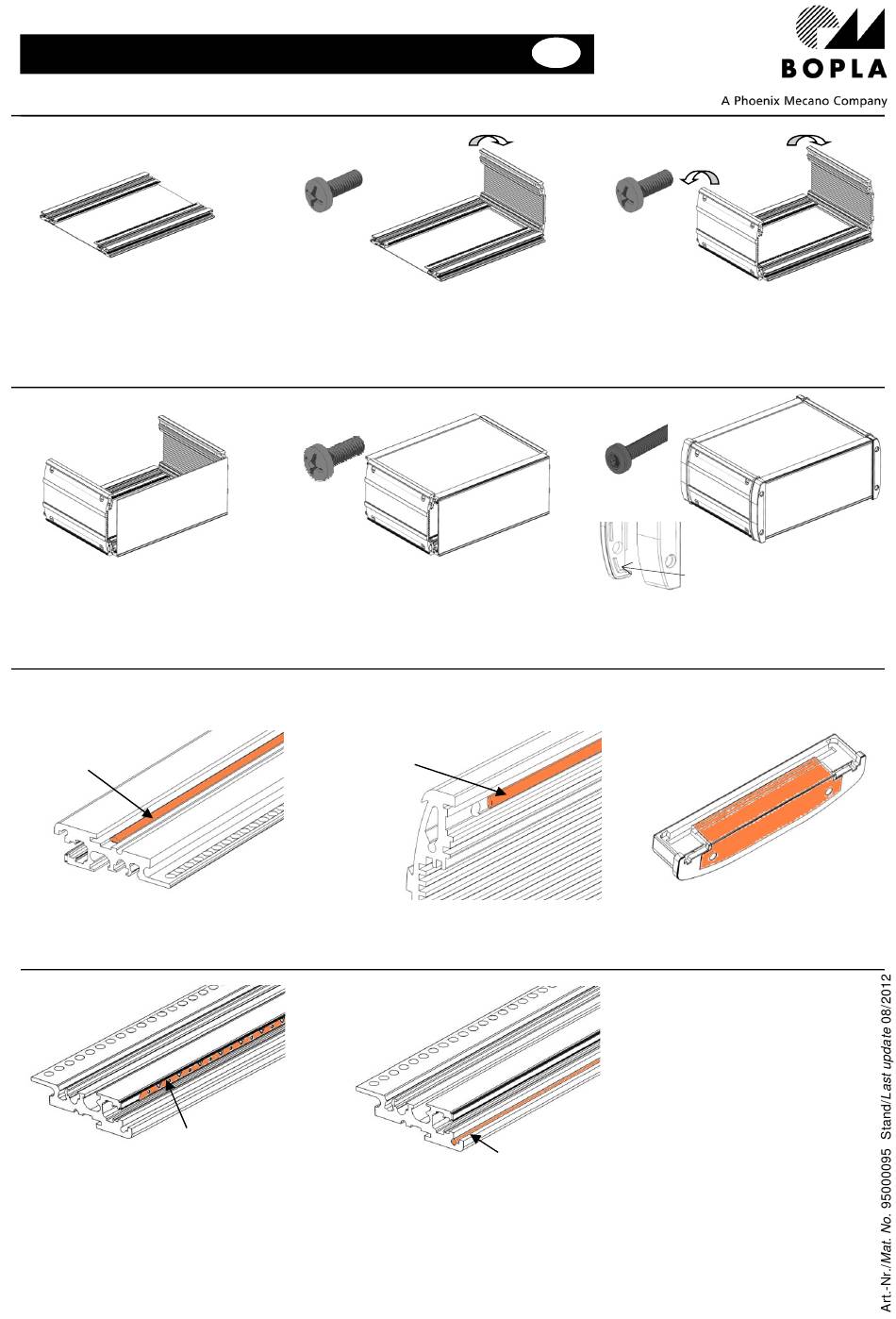

Phoenix Mecano BOPLA INTERTEGO Montageanleitung Seite 2

assembly instructions – INTERTEGO
Fit two front profiles to each of two sheet
metal covers.
If using front panels IT ....00 FP: insert the
front panels into the front groove of the
front profile.
EMC alternatives
EMC seal
EMC textile seal IT-EMV 1
For EMC-standard sealing between the
front profile and the EMC sheet metal cover
(IT AD . -7024-EMV)
Front profile EMC spring FP/M .. HP
For EMC-standard sealing between the
front profile and the part front panel
(TF/M ... -EMV)
*1) Tourque: 150Ncm | bit size: PH 2
*2) Tourque: 150Ncm | bit size: TX 10
2x
*1
Screw one side profile to a pre-mounted
front profile using two M4x12 screws. Do
NOT tighten the screws tightly yet – allow
room for movement.
4x
*1
Place the pre-mounted front profiles/sheet
metal cover between the side profiles and
screw into position using four M4x12
screws.
Tighten all side profile screws.
EMC textile seal IT-EMV 1
For EMC-standard sealing between the side
profile and the EMC sheet metal cover
(IT AD . -7024-EMV)
EMC spring
EMC sponge cord
For EMC-standard sealing between the front
profile and the EMC front panel (IT ....00 FP-
EMV)
EMC seal
EMC seal
Bopla Gehäuse Systeme GmbH
Borsigstr. 17-25
D- 32257 Bünde
GB
2x
*1
Screw the other side profile into position,
using two M4x12 screws. Do NOT tighten
the screws tightly yet – allow room for
movement.
8x
*2
Fitting the
decor element
The collar and ribs of the decor element
must point towards the corner part
Fit the corner parts incl. the corner
elements to the corners and screw into
position using eight ø3x18 screws. Tighten
all side profile screws.
EMC corner part spring IT-EMV 2 and IT-EMV 3
For EMC-standard sealing between the corner
sections and the front of the enclosure
(IT ....00 FP-EMV, TF/M ... -EMV)
Information on the EMC
alternatives:
Its design ensures that
Intertego has very good EMC
screening. Any need for
alternative EMC screening for
your Intertego must be
checked on an individual
basis.
