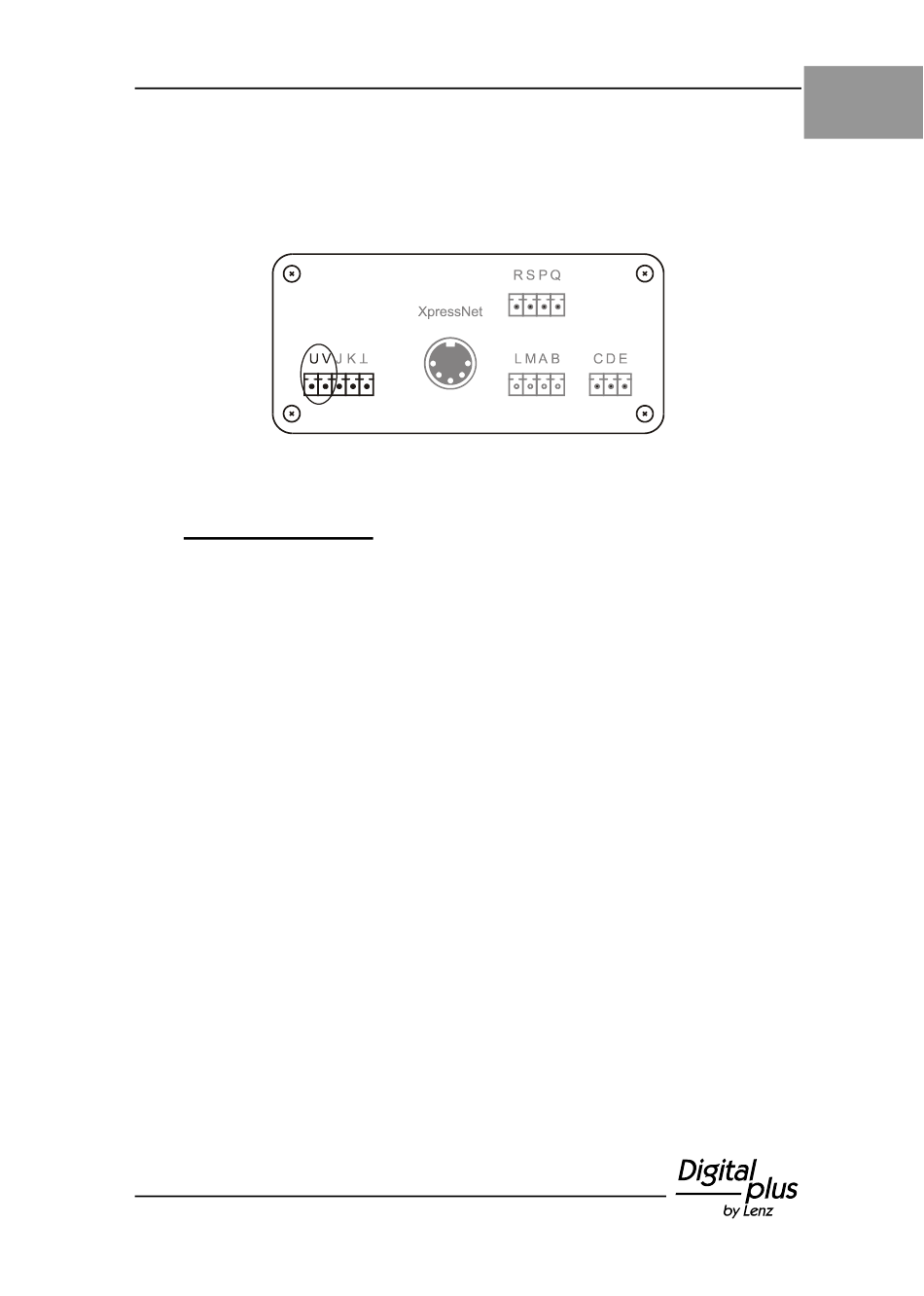

4.3 Connecting the LZV100 to the transformer
Connect terminals U and V of the LZV100 to the connecting terminals
of the transformer TR100 (or TR200)
Connections U,V to the power supply of the LZV100
5

Initial operation

Plug the mains plug of the transformer into the mains plug socket.
We assume in this example that you are operating a locomotive with
the address 3. Place the locomotive with an installed decoder on the
tracks of your model railway system.
